Bowl liner and mantle for HP300 HP400

Wholesale Concave And Mantle (Cone Crusher Parts)For CH860i Cone Crusher

(1) CH/CS Cone Crusher is a single cylinder hydraulic structure. The equipment is designed according to heavy-duty working conditions. The main shaft is supported at the upper and lower points, and the stress conditions are good.

(2) The constant crushing chamber (CLP) design keeps the feeding and production capacity constant during the liner wear cycle, significantly reducing the operating cost.

(3) Up to ten kinds of cavity shape changes and up to four kinds of eccentricities can be set for an eccentric sleeve bushing, which greatly enhances the flexibility and adaptability of the equipment.

(4) Equipped with intelligent ore outlet adjustment system ASRI, the performance of the crusher can be maximized.

(5) Advanced liner wear monitoring and automatic compensation functions, operation data record query functions, and convenient network communication functions can significantly improve the maintenance level of equipment and optimize the coordination and control with other equipment in the system.

CH/CS complete set of accessories includes:

CH/CS BOTTOMSHELL ASSEMBLY

CH/CS ECCENTRIC ASSEMBLY

HYDROSET CYLINDER ASSEMBLY

PINION SHAFT HOUSING ASSEMBLY

CH/CS MAIN SHAFT ASSEMBLY

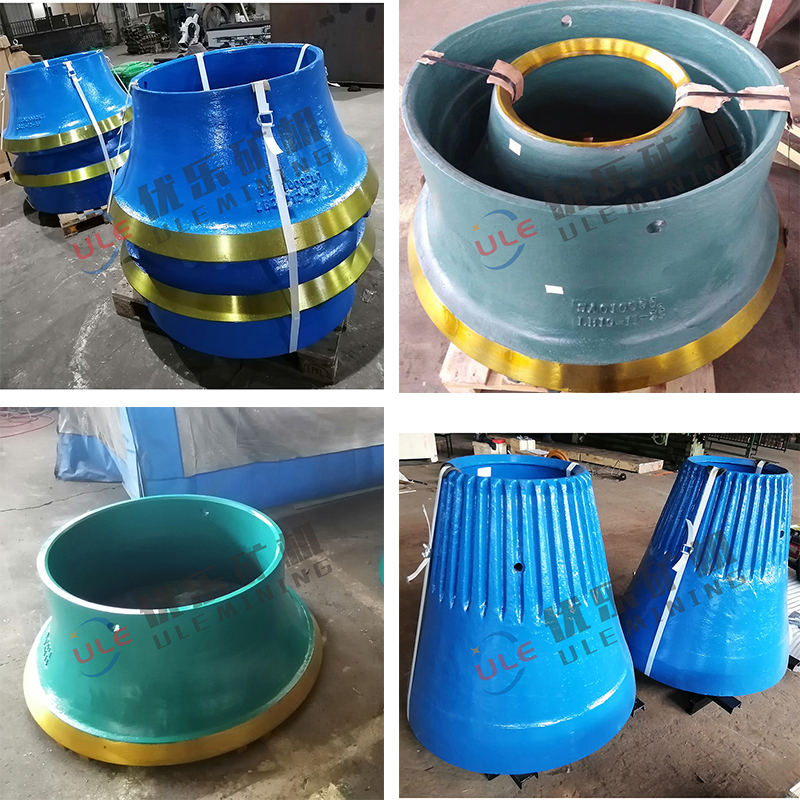

CH/CS CONCAVE AND MANTLE

CH/CS TOPSHELL ASSEMBLY
