BT-M-G0-R-CR2450C

Product Overview

Product Category:  Battery Holders丨Battery Mounts丨 Coin Cell Holders丨 Battery Contacts丨Battery Retainers丨Battery Clips 丨Battery Snaps

Surface Mount CR2450 Coin Cell Battery Holder

CR2450 coin cell battery holders by Antenk are available in many styles and with various options so that we always have a part to fit your design. Our rigorous engineering and testing standards ensure that our parts are manufactured with the highest quality, making us certain that one of our award-winning designs will provide you with the best solution.Here you can find the right coin cell battery holder for your specific needs.
CR2450 Coin Cell Battery Holders are grouped by Termination Style
PC pins
Surface mount

CR2450 lithium coin cell Holders SMT CR2450 Holder with Surface Mount leads Specifications

2450 SMT BATTERY HOL .DER ON TAPE AND REEL

1. BASE"
MAT'L: GLSAA FILED LCP UL 94V-0
2. CONTACTS:
MAT'L: 0.15mm TH'K PHOSPHOR BRONZE
FINISH: GOLD FLASH PLATING

The coin cell holder is available in two different sizes to fit BR/CR2032 and BR/CR1225 batteries in horizontal or vertical orientation. They are available with solder bumps for Surface Mount Technology (SMT) or pins for through-hole mounting on printed circuit boards. These batteries provide up to approximately 220 milliampere-hours (mAh) of power and are relatively small, making them perfect for less power-demanding circuits in handheld portables.

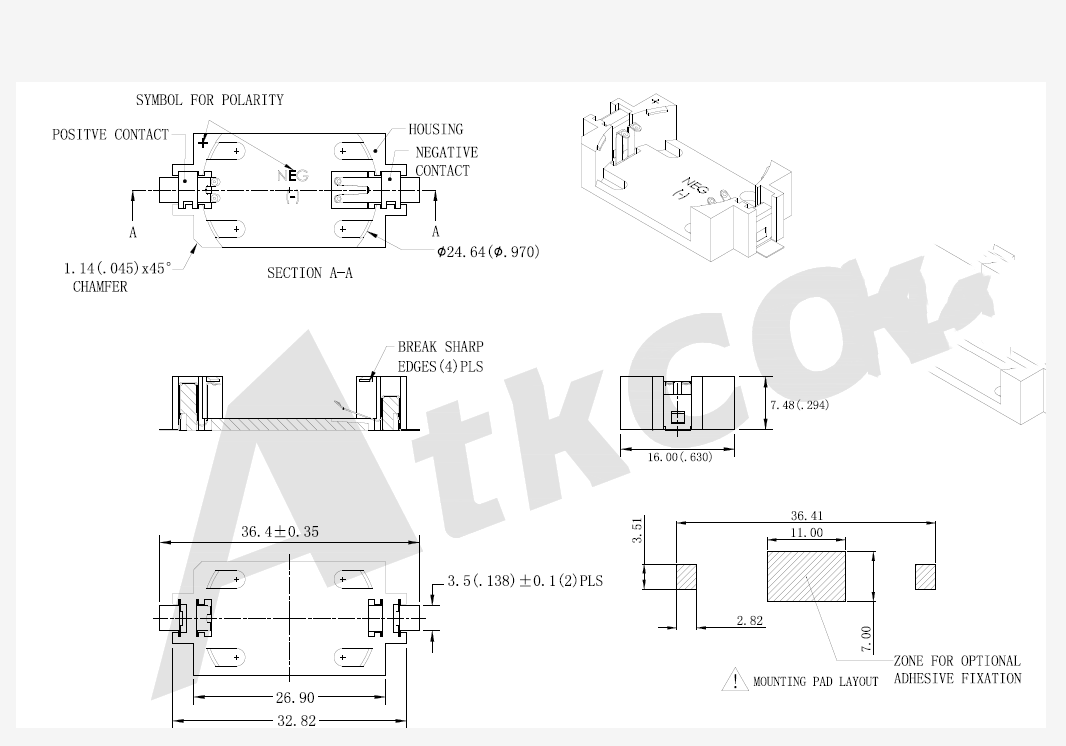

Button Cell Lithium CR2450 Battery Holder Dimensions:

Length: 36.4mm

Width: 16.0mm

Height: 7.48mm

Pin width: 3.5mm

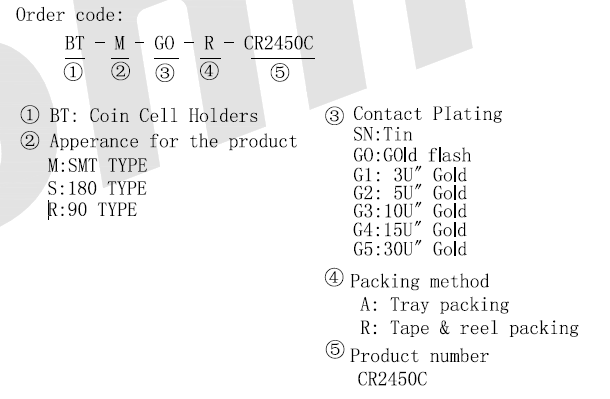

Number 2 apperance for the product: SMT type, we also have 180 and 90 types, when you place order on us, please tell us the apperance type you want.

Number 3 contact plating: gold flash, we also have tin plate, when you place order on us, please inform us the contact plating way you want.

Number 4 packing method: tape & reel packing, when you place order on us, please tell us the exact packing way you want.

Number 5 product number: CR2450C

THM Holder for 2450 Cell (Lithium Coin Cell Holders Surface Mount (SMT)) Install Diagram
