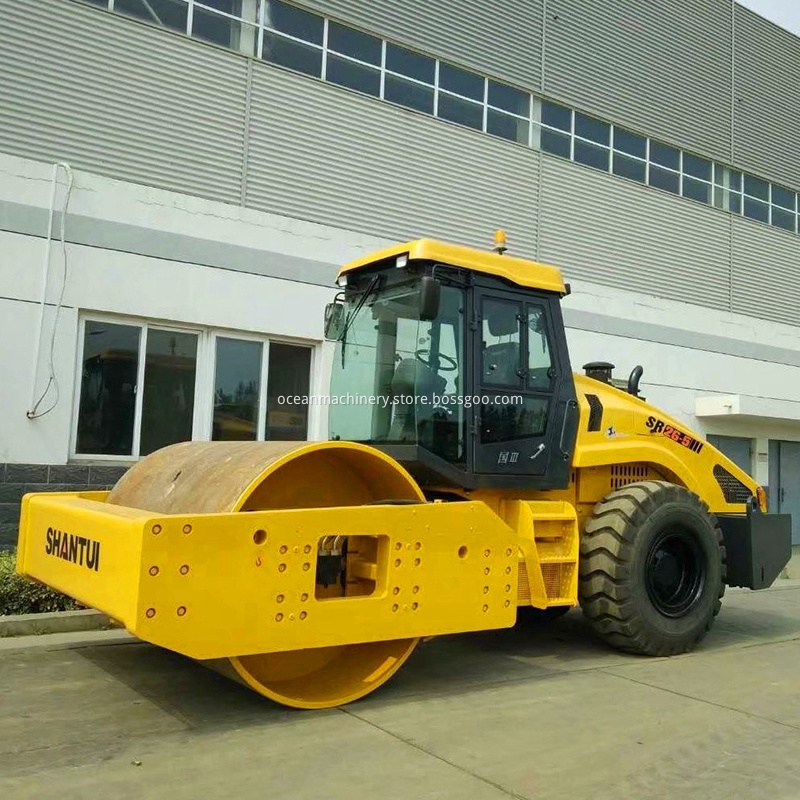

Shantui 26ton single drum road roller SR26-5 compactor

Shantui’s high grade and high standard choice of critical parts of the roller (including engine, drive parts, and hydraulic parts) guarantees the performance and reliability of the product. The professional design on the static linear pressure, vibration

amplitude, and vibration frequency and the appropriate speed and gradeability performance realize maximum working efficiency while providing high compacting performance.Finally, it has the extra-added touch of having a very attractive design flow to its outward appearance.

Parameter

Full Hydraulic Single Drum Vibratory Roller Series
MODEL		SR10	SR12-5	SR16	SR18	SR20-3	SR26-5
Operating weight (kg)		10120	12000	16450	18000	19535	25800
Axle load, front (kg)		5520	7000	10000	11350	12713	17000
Static linear load, front/rear (N/cm)		259	327	468	530	595	779
Working width (mm)		2130	2110	2140	2140	2140	2140
Minimum turning radius (mm)		5880	5500	5600	5800	6100	6000
Drum diameter (mm)		1500	1550	1550	1550	1550	1600
Vibration frequency,  high amplitude/low amplitude (Hz)		30/36	30/33	29/32	29/33	28/33	27/30
Rated amplitude,high/low (mm)		2.0/1.0	1.9/1.02	1.8/0.8	1.75/0.95	1.86/0.93	1.8/1.1
Centrifugal force, high/low (KN)		270/180	270/175	300/167	310/215	370/255	352/ 265
Steering angle (°)		±36	±36	±36	±36	±36	±36
Oscillating angle (°)		±12	±12	±12	±12	±10	±10
Maximum climbing ability (%)		48	48	45	45	45	45
Forward speed (km/h)	1	0–5.3	0- 5.3		0- -5.6	0- -5.2	0-4
	2	0–9.9	0- 9.9	0-5.9	0-7.1	0-7.2	0- 5.4
	3	–	–	0- 9	0- -8.7	0-12.7	0- -9.5
	4	–	–	–	0-13.5	–	–
Reverse speed (km/h)	1	0–5.3	0- 5.3	0-5.9	0- 5.6	0- -5.2	0-4
	2	0-9.9	0-9.9	0- 9	0-7.1	0- -7.2	0-5.4
	3	–	–	–	0- -8.7	0-12.7	0- -9.5
	4	–	–	–	0-13.5	–	–
Engine model		Weichai  P4G110E220	Weichai DEUTZ  WP6G 140E22	CUMMINS  6BT5.9-C150	CUMMINS  6BT5.9	Shangchai  SC8D190.G2	CUMMINS  6CTAA8.3-C215
Rated power (kW)		82	105	112	132	140	160
Rated speed (rpm)		2200	2200	2500	2500	2200	2200
Padfoot, number		–	–	–	–	–	–
Height of the padfoot (mm)		–	–	–	–	–	–

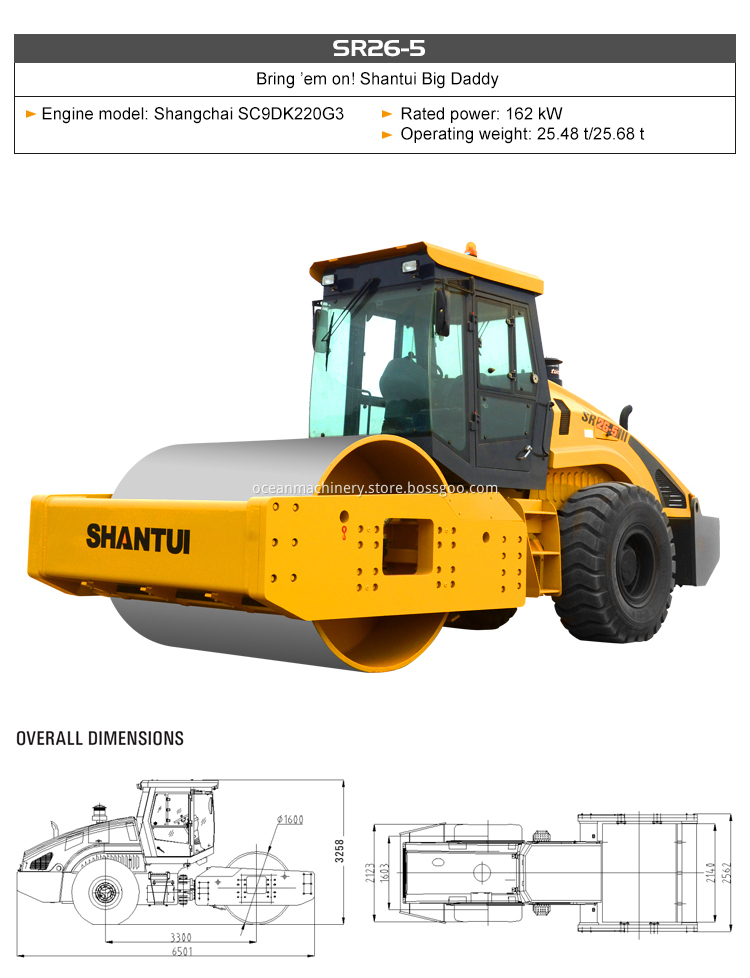

Overall length (mm)		5860	6034	6092	6093	6232	6501
Overall width (mm)		2305	2275	2382	2410	2422	2562
Overall height (mm)		3225	3214	3104	3132	3372	3258

 Engine

The standard Weichai WP series turbocharged diesel engine features outstanding performance, high reliability, high fuel economy, and strong power output, which can maintain the whole machine at optimal compacting status, guaranteeing construction quality.
The optional Cummins B series engine features reasonable strength, compact and simple structure, less types and numbers of parts, light weight, and high efficiency.

Vibratory Drum

The professional design and manufacturing guarantee outstanding compacting performance, meeting the construction requirements of various work sites, and features easy service and maintenance.

1. Vibratory drum
2. Eccentric block
3. Lubricating oil compartment
4. Special heavy-duty bearing
5. Rubber damper

Working Conditions
