At Top Leader Glass, we specialize in manufacturing bent tempered glass (curved tempered glass), combining cutting-edge engineering with artistic design to meet the evolving demands of modern architecture, automotive, and interior applications. Our curved safety glass is crafted through a precision-controlled thermal process, ensuring unmatched strength, clarity, and aesthetic versatility while adhering to global safety standards.
Advanced Manufacturing Process Our bent tempered glass is produced using a sophisticated thermal tempering technique:
- Heating Phase: Glass panels are uniformly heated to approximately 620°C–650°C, reaching near-softening point temperatures.
- Bending Phase: The pliable glass is molded into custom curves (single or compound radii) using CNC-controlled ceramic molds or gravity bending methods.
- Rapid Quenching: High-pressure air jets cool the surface rapidly, creating compressive stresses of ≥10,000 PSI for exceptional impact resistance.
This process results in glass that is 4–5x stronger than annealed glass, with a surface hardness of 6–7 on the Mohs scale.
Safety & Performance Advantages
- Breakage Safety: When fractured, our bent tempered glass disintegrates into small, blunt granules (per EN 12150 standards), eliminating sharp shards and reducing injury risks.
- Thermal Stability: Withstands temperature differentials up to 200°C, ideal for facades, skylights, or oven doors.
- Weather Resistance: Tested against UV exposure, humidity (85% RH), and salt spray (ASTM B117) for coastal or industrial environments.
Applications Across Industries
- Architecture & Construction:
- Curtain walls, arched windows, and domed skylights for commercial/residential projects.
- Spiral staircases, glass balustrades, and elevator enclosures with seamless curves.
- Automotive & Transportation:
- Windshields, sunroofs, and side windows for luxury vehicles and public transport.
- Interior Design:
- Custom-shaped glass partitions, curved countertops, and decorative shelving.
- Consumer Electronics:
- Anti-glare curved displays for high-end TVs, smartphones, and touchscreens.
Customization & Technical Specifications
- Thickness: 4mm–19mm (single or laminated configurations)
- Curvature Radius: 300mm–5,000mm (tighter radii achievable for specialty projects)
- Surface Treatments: Options include anti-reflective coatings, frosted etching, or digital ceramic printing.
- Certifications: CE, ANSI Z97.1, GB 15763.2, and AS/NZS 2208 compliant.
Why Choose Top Leader Glass? ✅ State-of-the-Art Facilities: Equipped with 3 automated bending furnaces and 12 tempering lines in Shandong, China. ✅ Precision Engineering: Tolerance levels as low as ±1.5mm for complex geometric designs. ✅ Global Compliance: Products meet ISO 9001, ASTM C1048, and EN 14179 standards. ✅ End-to-End Service: From 3D CAD modeling to tempered glass stress analysis and logistics support.
Sustainability & Quality Assurance We prioritize eco-conscious production:
- Low-Emission Manufacturing: 30% reduced energy consumption via recuperative heating technology.
- Recyclable Materials: 100% recyclable glass with no hazardous additives.
- Rigorous Testing: Each batch undergoes fragmentation, ball drop, and thermal shock testing.

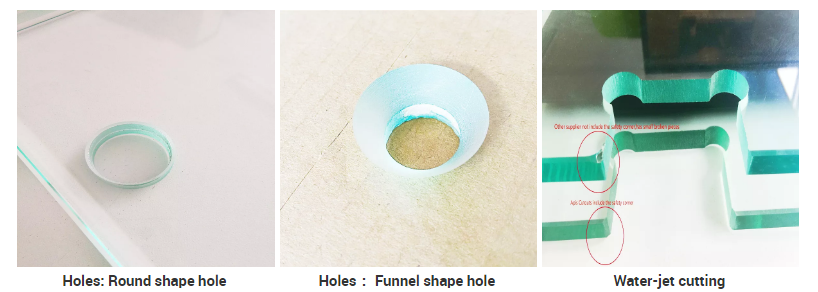

Glass can be heat-strengthened, heat-soaked, polished edges, drilled, tripped, and silkscreened, digital printed
| Glass Thickness |
4+4mm, 5+5mm, 6+6mm, 8+8mm, 10+10mm, 12+12mm, 15+15mm, etc. |
| Available Size |
Curved glass furnace 1: For 5mm and 6mm glass, mini radius 450mm, thickness over 8mm, radius should be over 800mm, max arc length 1650mm, max height 2440mm So we almost could produce your any design curved glass |
| Color | Clear, ultra clear, euro bronze, golden bronze, dark blue, ford blue, F-green, dark green, euro grey, dark grey, black, etc. |
| Processing | Custom cut to size, drill holes, cut notches, sandblasting, digital printing, silkscreen printing, etching, etc. other customized design could be produced |
| Type | Clear curved laminated glass, color curved laminated glass, solar reflective curved laminated glass, sandblasted laminated curved glass, silkscreen laminated curved glass, heat soaked curved tempered laminated glass, heat strengthened double curved glass, digital printing curved tempered laminanted glass, etc. |
| Quality |
Meet with CE EN12600 & EN14449, ISO 9001 and SGCC ANSI Z97.1 certificate, to match the below quality standard: Zero delamination |
FEATURE OF CURVED TEMPERED LAMINATED GLASS
- Safety: When laminated glass is attacked by outside force, it is hard to be penetrated because the interlayer film has strong tenacity and can absorb and weaken a mass of striking energy. Even if it's broken, the splinters will stick to the interlayer and not scatter
- Sound Insulation: interlayer film can effectively prevent sound wave
- Anti-UV: Laminated glass can effectively present UV
- Dynamic colors: Color laminated glass offers total flexibility, providing the personal touch for unique colors and aesthetics, also affords different levels of translucency for visual screening
APPLICATIONS OF CURVED TEMPERED LAMINATED GLASS

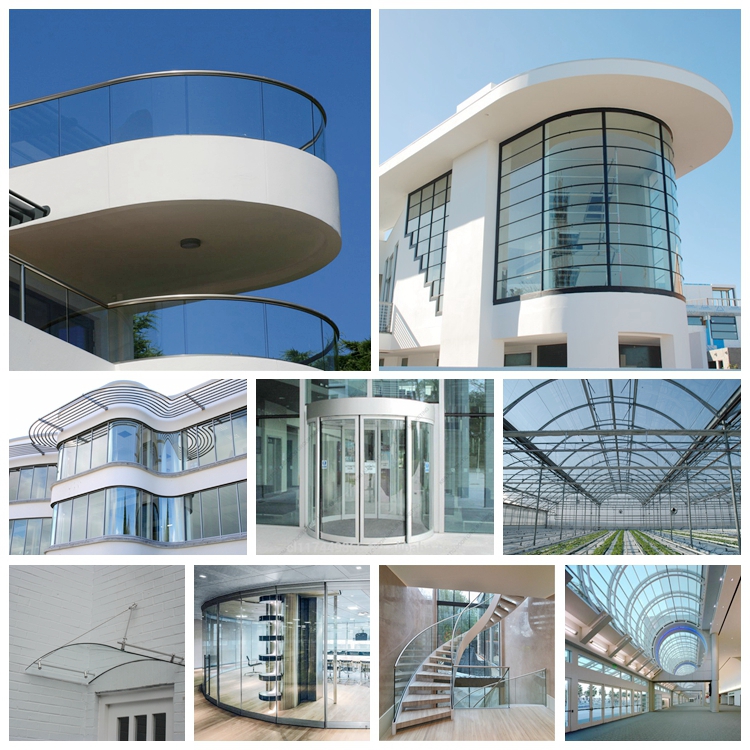

Curved laminated glass is super safety, and could make the building too be shaped, and add some fashion elements on the building, to make the building more attractive, so it is more and more popular, used as:
1) External use of glass windows, glass doors, glass balconies, glass balustrades, commercial glass lifts, etc.
2) Interior use of glass shower screens, glass partition walls, glass stair handrails, residential home glass elevators, etc.
