Solar glass is one kind of low iron glass, which is also called photovoltaic glass and energy saving
glass which mainly used on solar panel because of its super light transmittance rate.
It is a high performance low iron glass with very high solar energy transmittance. When toughened, its strength and durability make it the ideal choice for crystalline silicon photovoltaic application
as well as for solar thermal collectors.
Type
1.Ultra-Clear solar glass
2.Ultra-Clear patterned solar glass (widely used), above 90% customers use this product.
3.Single AR coating solar glass
Parameter
Visible Light Transmittance: 91.60%
Visible Light Reflectance: 7.30%
Solar Transmittance: 92%
Solar Reflectance: 7.40%
UV Transmittance: 86.80%
Total Solar Heat Gain Coefficient: 92.20%
Shading Coefficient: 1.04%
|
Product |
Solar glass |
|
Sizes |
Max Size: 2200*1250mm Min Size: 450*150mm The size can be customized according to your request. |
|
Thickness |
2.5mm, 3.2mm(widely used), 4mm etc. |
|
Color |
Ultra Clear |
|
Further process |
cleaning, cutting, rough grinding, hole, etc. |
|
Surface |
mistlite single pattern, the pattern shape can be made by your request. |
|
Features |
1.Ultra high solar energy transmittance and low light reflectance; 2.Choice of patterns, to suit the specific application; 3.The pyramidal patterns can assist in the laminating process during module man ufacture, but can be used on the external surface if desired; 4.Prismatic/Matte product available with Anti-Reflective (AR) coating for optimal solar energy conversion; 5.Available in fully tempered/toughened form to provide excellent strength with resi stance to hail, mechanical impact and thermal stress; 6.Easily to be cut, coated and tempered. |
|

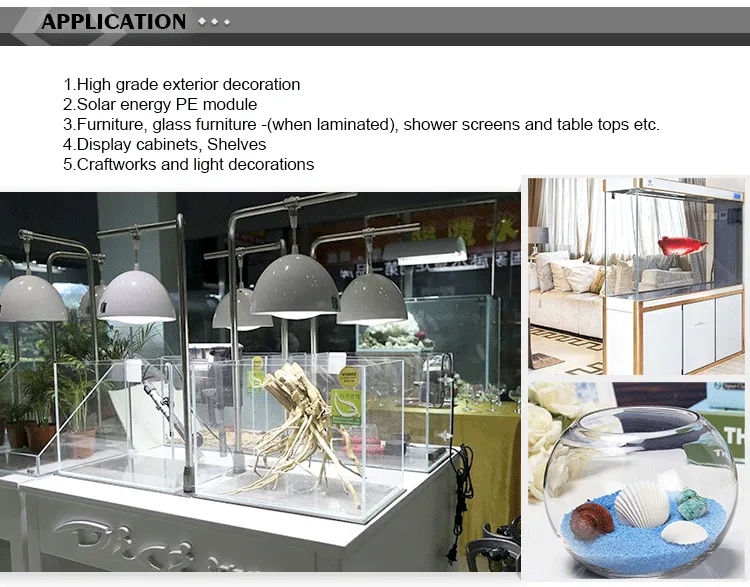

Application |
Widely used as solar power generator,a-Si Thin Film Solar Cells, cover glass for Silicon Solar panel, solar collector, solar water heaters, BIPV etc. |
