AC3000-02 Pneumatic Filter Regulator Lubricator
3 year ago
AC3000-03 SMC Type Air Filter Regulator Lubricator Combo
Filter, regulator, and lubricator (FRL) compressed air systems are used to deliver clean air, at a fixed pressure, and lubricated (if needed) to ensure proper pneumatic component operation and increase their operation lifetime. The air supplied by compressors is often times contaminated, over pressurized, and non-lubricated meaning that an FRL unit is required to prevent damage to equipment. Filters, regulators, and lubricators can be bought individually or as a package depending on what is needed to ensure the proper air specifications are being met for downstream equipment.
* Filters: remove water, dirt and other harmful debris from an air system. This is often the first step in improving the air quality.
* Regulators: adjust and control the air pressure of a system to ensure that down-line components do not exceed their maximum operating pressures. This is the second step in the FRL system.
* Lubricators: reduce the internal friction in tools or equipment by releasing a controlled mist of oil into the compressed air. This is often done last and/or right before the component needing lubrication.

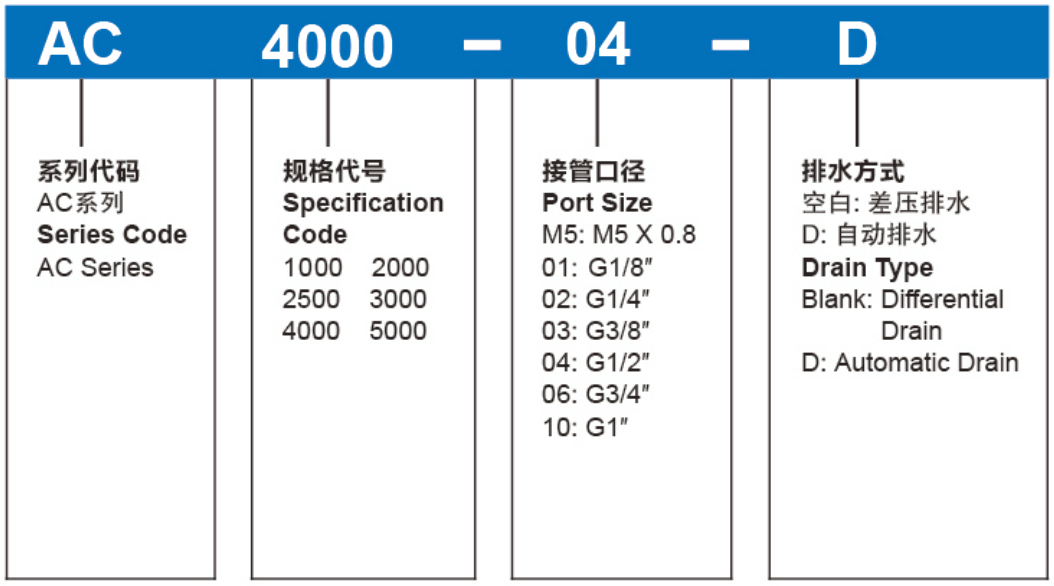

Ordering Code of AC series Filter Regulator Lubricator:

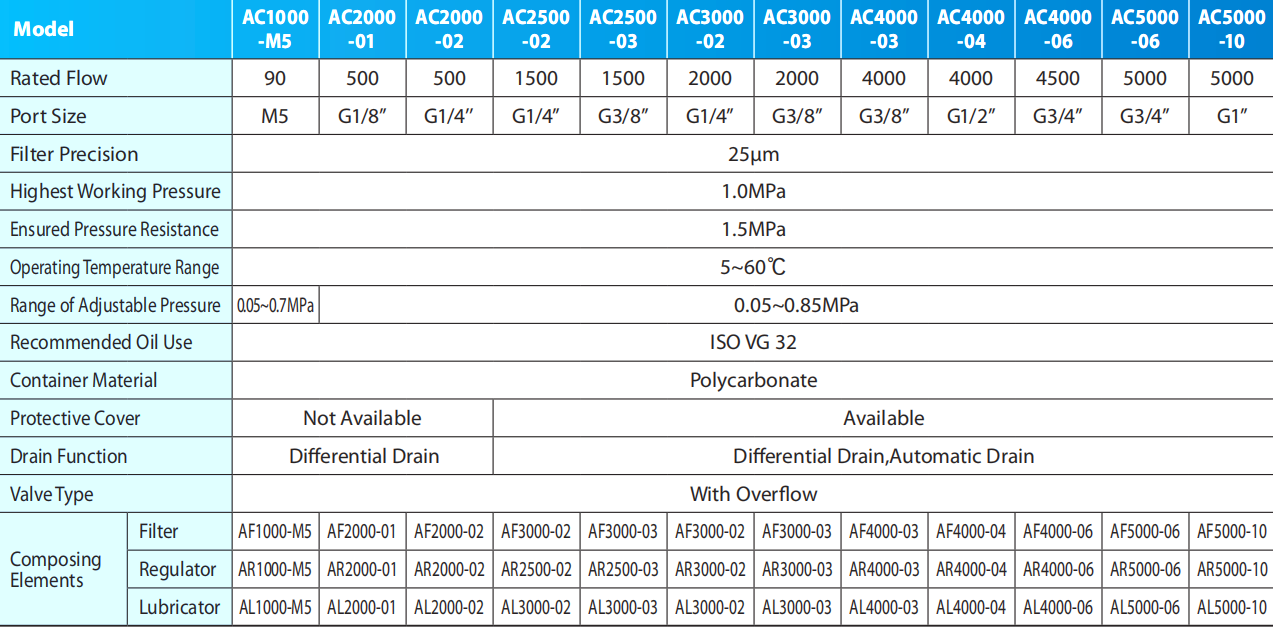

Specification of AC series Filter Regulator Lubricator:

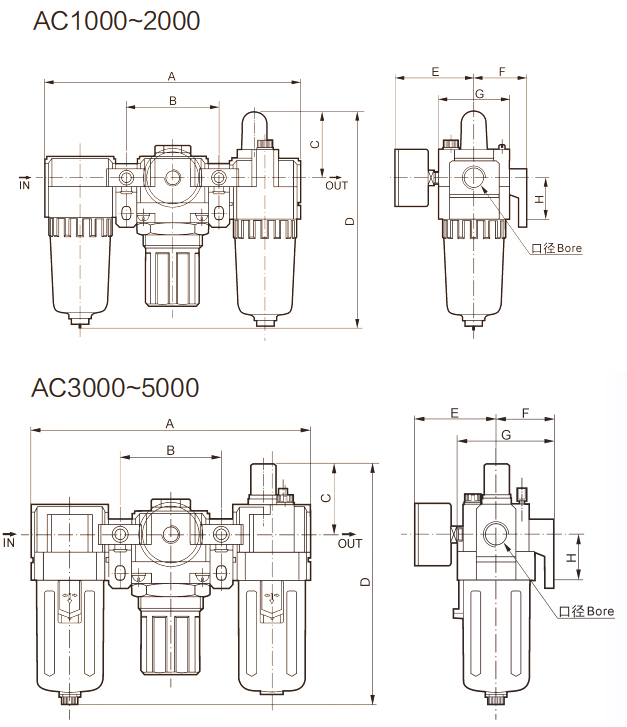

Dimension of AC series Filter Regulator Lubricator:
|
Model
|
Port Size
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
|
AC1000
|
M5
|
91
|
33
|
25.5
|
84.5
|
26
|
25
|
25
|
20
|
|
AC2000
|
G3/8'', G1/4''
|
140
|
20
|
38
|
125
|
56.8
|
30
|
40
|
24
|
|
AC2500
|
G1/4'', G3/8''
|
181
|
64
|
38
|
156.5
|
60.8
|
41
|
53
|
35
|
|
AC3000
|
G1/4'', G3/8''
|
181
|
64
|
38
|
156.5
|
60.8
|
41
|
53
|
35
|
|
AC4000
|
G3/8'', G1/2''
|
238
|
84
|
41
|
191.5
|
65.5
|
50
|
70
|
40
|
|
AC4000-06
|
G3/4''
|
253
|
89
|
41
|
193
|
69.5
|
50
|
70
|
40
|
|
AC5000
|
G3/4'', G1''
|
300
|
105
|
48
|
271.5
|
75.5
|
69.8
|
90
|
50
|
