overhead garage door

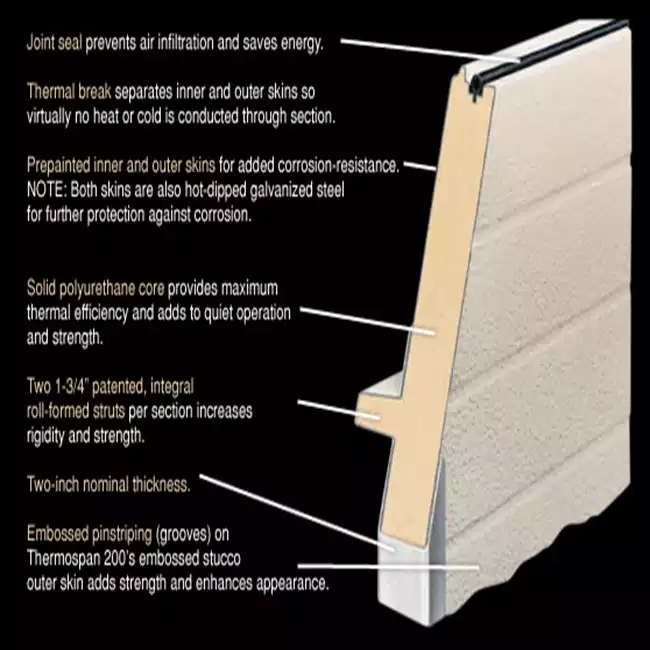

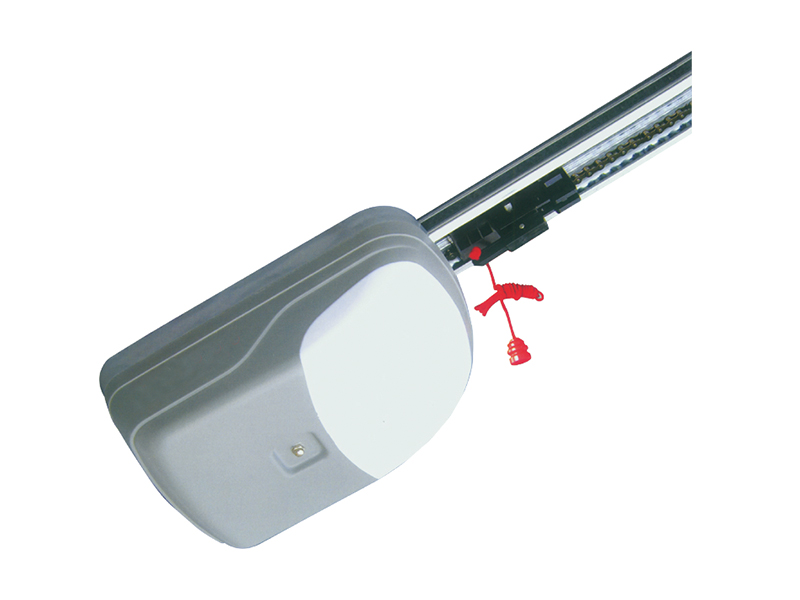

Overhead lifting door motor - overhead combined door, as the preferred door body solution in the industrial field, integrates advanced Door Accessories And Door Parts technology, and builds an efficient and strict protection system. The door is made of double steel structure inside and outside, and the surface is treated with polyester at high temperature, which not only enhances corrosion resistance, but also gives the door body an elegant luster. The polyurethane material filled in the middle ensures that the thickness of the door reaches 40-50mm, and the solid structure effectively realizes the multiple functions of heat preservation, heat insulation, dust prevention and wind resistance, providing a solid barrier for the industrial environment.

1）Motor Drive Voltage：220V or 380V AC（+6%，-10%），F：50Hz；

（2）Power:800W

（3）Power output rated torque:50N.M

（4）Transmission mode: shaft drive or side chain drive;

（5）Thermal protection operating temperature: 140 degrees Celsius;

（6）Operating speed: 8m/min adjustable;

（7）Working temperature -20~+60 degrees Celsius;

（8）The industrial door opener is equipped with a small door safety protection switch to ensure that if the lifting door is running

Open the small door and the door will stop.

In terms of safety, the Overhead Lifting Door Motor is the ultimate. The door built-in airbag bounce device, once encountered resistance or obstacles, the device will start immediately, so that the door body automatically bounce, effectively avoiding potential injury to pedestrians and vehicles. At the same time, the addition of infrared induction function adds an intelligent defense line to the safe operation of the door body, ensuring that it can respond quickly under any circumstances to ensure the safety of personnel and property.
