Product details

SL-WL-63R Outdoor Up Down Double Heads LED Wall Light | IP65 Waterproof Aluminum Cylindrical Wall Sconce Single or 2-Head 3W 36W Ten Models R/G/B/Y/W/WW/RGB AC100-265V 15° 30° 45° 60° Beam for House Facade Garden and Patio

The SL-WL-63R outdoor up and down LED wall light is a cylindrical, die-cast aluminum wall sconce that projects balanced beams both upward and downward - an hourglass light pattern that makes facades feel taller and more welcoming. The series covers ten models from a 3W single head to a 2x15-18W double head, in grey or black, with eight light colors including RGB. Rated IP65 and tested in driving rain, the fixture pairs high-power COB sources with a thickened aluminum heat sink and a stable driver for a 50,000-hour service life.

Key Difference: This is the cylindrical single/double-head up-down wall sconce family of the Synno outdoor wall light range. Double-head (-2) models emit an hourglass light pattern - light washing up and down at the same time - to increase the perceived height of a facade, while single-head models provide a soft downward wash. Both share IP65 waterproofing, die-cast aluminum bodies and eight color options including RGB.

Feature Highlights

Outdoor Up Down Double Heads LED Wall Light

Balanced bidirectional illumination for exterior walls.

Up Down Wall Sconce Light IP65 Waterproof

Silicone seals and waterproof driver chamber for rain.

SL-WL-63R Wall Lamp 2 Heads Cylindrical

Matte cylindrical body with faceted reflectors.

Double Head Wall Light 2x3W 2x18W

Ten models from single 3W to double 2x15-18W.

Hourglass Light Pattern Facade Wall Lamp

Up and down beams increase perceived wall height.

Aluminum Die-Casting Outdoor Wall Sconce

Heat-dissipating body, durable and long lifespan.

RGB Color Changing Outdoor Wall Light

R/G/B/Y/W/WW/RGB color options available.

Easy Installation & Long Service Life

Surface mount on concrete, stone or painted walls.

Technical Specifications

Parameter	Specification
Model	SL-WL-63R series (single head) / -2 series (double head)
Light Source	High power / COB (CREE, OSRAM, EPISTAR, Bridgelux, LUMINUS customizable)
Color Temperature	R / G / B / Y / W / WW / RGB (white options 3000K-6000K)

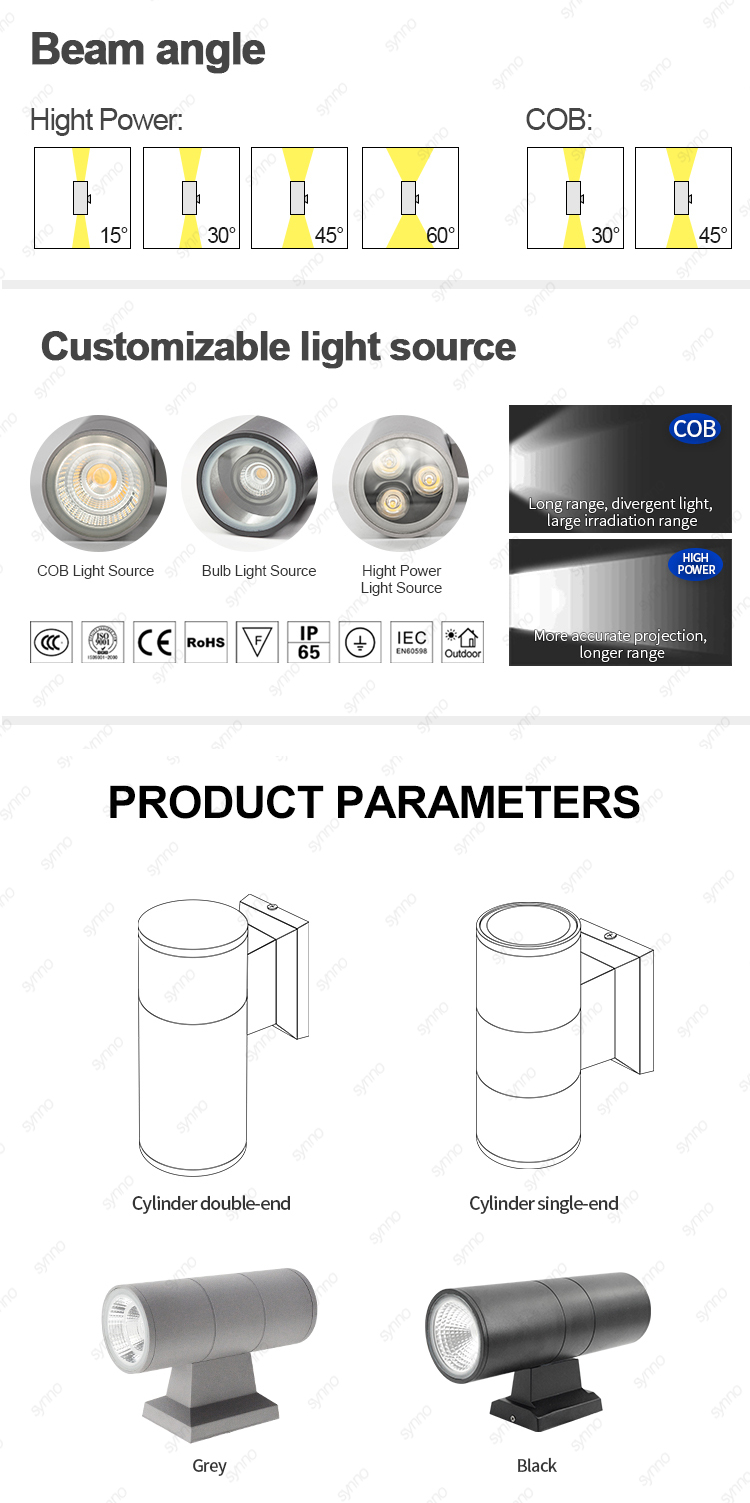

Beam Angle	15° / 30° / 45° / 60°
Working Voltage	AC100-265V
Working Temperature	-30°C to +45°C
Ingress Protection	IP65
Housing Material	Die-cast aluminum, tempered glass cover
Housing Color	Black / Grey
Color Rendering Index	Ra 80
Luminous Efficacy	80 lm/W
Lamp Life	50,000 hours
Warranty	2 years
Certifications	CE, RoHS, EMC, LVD, ISO, CB

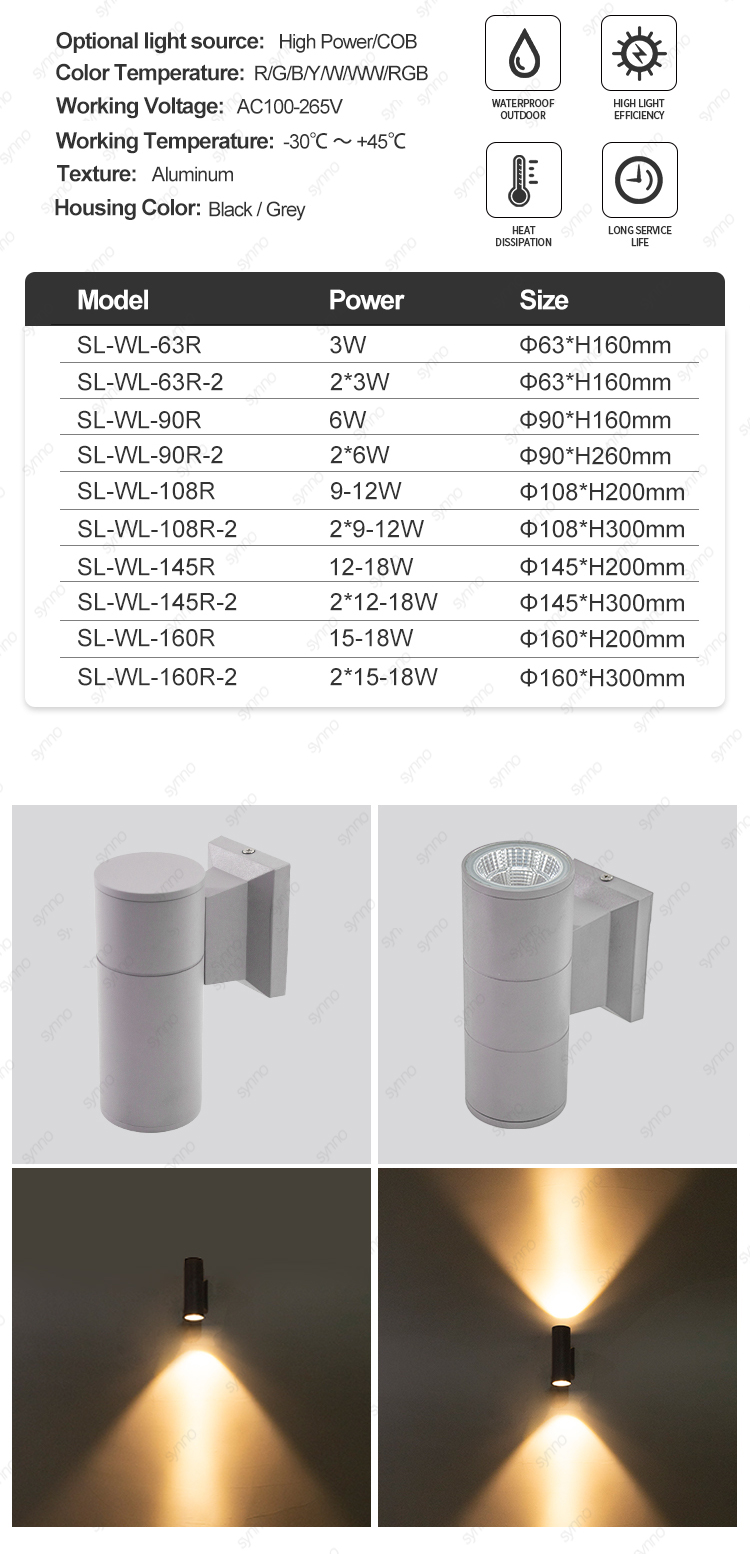

SL-WL-63R Series Size Options

Model	Heads	Power	Size
SL-WL-63R	Single	3W	Φ63 x H160mm
SL-WL-63R-2	Double	2 x 3W	Φ63 x H160mm
SL-WL-90R	Single	6W	Φ90 x H160mm
SL-WL-90R-2	Double	2 x 6W	Φ90 x H260mm
SL-WL-108R	Single	9-12W	Φ108 x H200mm
SL-WL-108R-2	Double	2 x 9-12W	Φ108 x H300mm
SL-WL-145R	Single	12-18W	Φ145 x H200mm
SL-WL-145R-2	Double	2 x 12-18W	Φ145 x H300mm
SL-WL-160R	Single	15-18W	Φ160 x H200mm
SL-WL-160R-2	Double	2 x 15-18W	Φ160 x H300mm

Up & Down Hourglass Light Pattern

Unlike traditional wall lights that emit light only downward, the double-head SL-WL-63R-2 projects light both up and down at the same time, creating a symmetrical hourglass pattern on the facade. The balanced bidirectional wash draws the eye upward, making exterior walls feel taller and doorways more prominent. Single-head versions give a soft downward wash for doorways and porches. Vertical projection, soft wall washing and texture enhancement combine to make this up down wall lamp a favorite for architectural lighting.

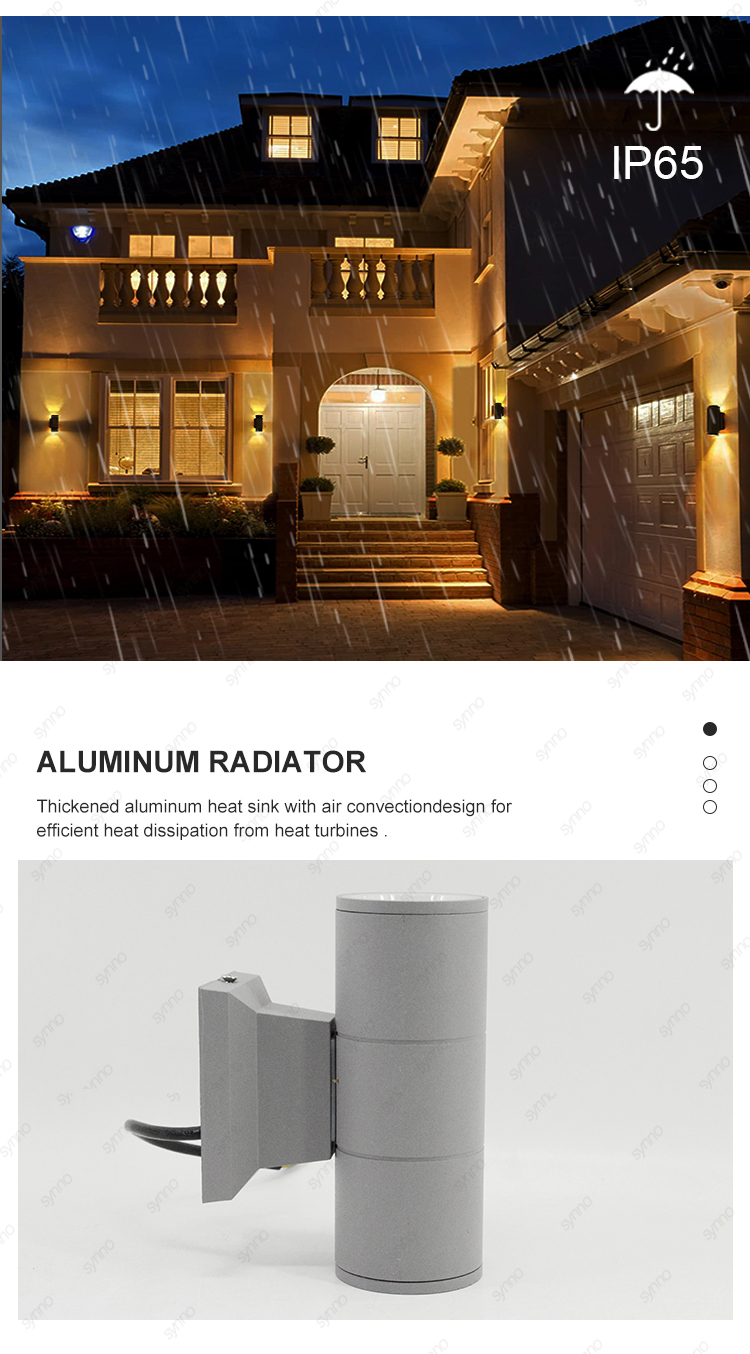

IP65 Waterproof & Aluminum Heat Dissipation

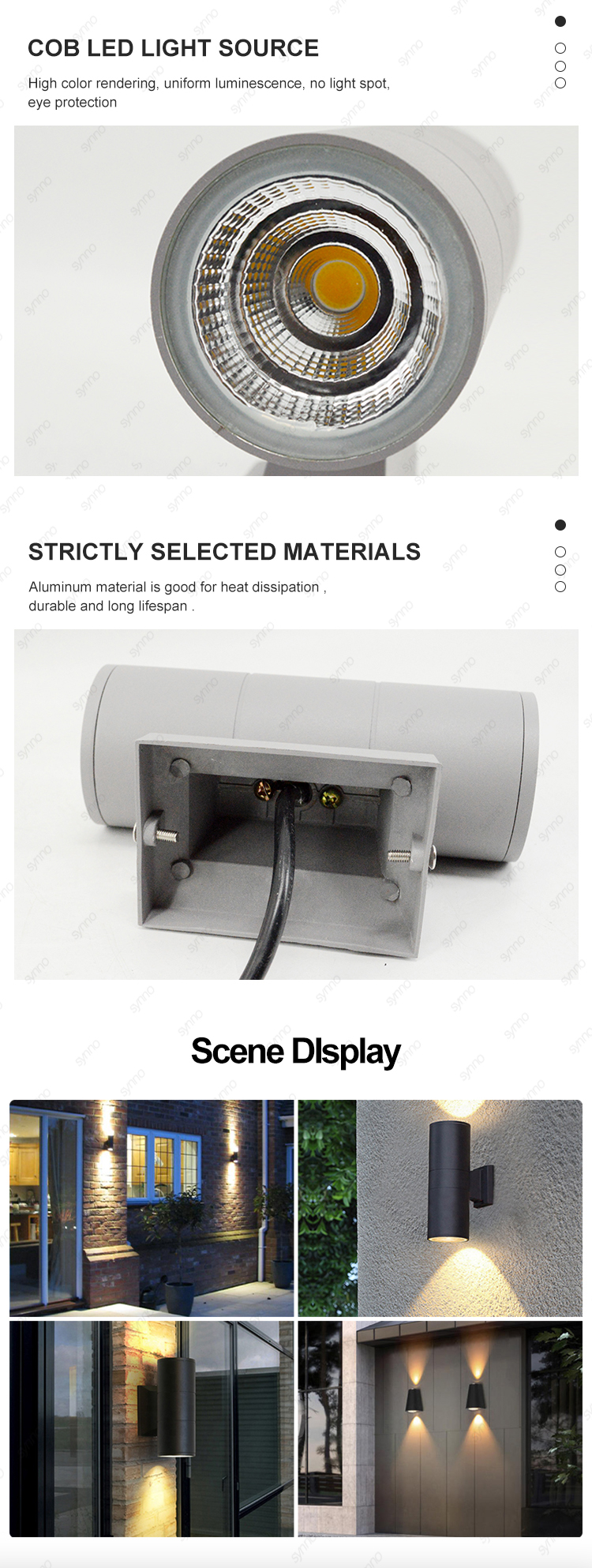

Outdoor durability comes from a silicone sealing ring, a waterproof driver chamber and anti-rust screws, plus a tempered glass cover that shrugs off rain and dust. The die-cast aluminum body and thickened aluminum heat sink use an air-convection design for efficient heat dissipation, protecting the COB source and driver. High color rendering, uniform luminescence and no light spot keep the beam comfortable, while the flicker-free driver gives stable output. The result is a 50,000-hour service life across working temperatures from -30 to +45 degrees Celsius.

Typical Applications

House facades - symmetrical hourglass light on brick, stucco and stone.

Entryways & porches - welcoming up-down welcome light.

Courtyards & gardens - wall-mounted accent on pillars and fences.

Commercial buildings - rhythmic facade lighting rows.

Modern architecture - minimalist cylindrical silhouette.

Related Products

Looking for more Synno outdoor wall light options? Explore the range:

LED Wall Light Collection - Browse all Synno LED wall lights.

Wall Light Collection - The complete wall light range.

Up And Down Wall Light Collection - More up-down wall light options.

Double Head Wall Light Collection - Multi-head wall sconces.

Modern Up Down Sconce Lamp - Another up-down wall sconce style.

Rotatable Outdoor Wall Light - Single and double head rotatable wall lights.

Waterproof Patio Wall Light - Outdoor wall light for patio applications.

Hardscape Wall Washer - Outdoor landscape wall washer lights.

Why Choose Synno

Direct Sale by Manufacturer

Buy straight from the factory for competitive pricing, consistent quality and a stable supply chain.

The Quality Is Reliable

Strictly selected aluminum and high-power light sources for long life.

OEM / ODM Support

Custom chip brand, color, beam, housing color and packaging.

Intimate Service

Dedicated account management from sample confirmation through after-sales warranty.

FAQ & Ordering Information

What is the model number? SL-WL-63R (single head) or SL-WL-63R-2 (double head), part of the SL-WL-63R/90R/108R/145R/160R series.

What power options are available? From 3W single head up to 2 x 15-18W double head.

What light colors are available? Red, green, blue, yellow, white, warm white and RGB.

What beam angles are offered? 15, 30, 45 and 60 degrees.

Is it waterproof? Yes - IP65 rated for outdoor rain exposure.

What voltage does it use? AC100-265V wide input.

Can the lamp beads be customized? Yes - CREE, OSRAM, EPISTAR, Bridgelux or LUMINUS with CCT and color options.

When sending your inquiry, please specify: model, single or double head, power, light color, beam angle, housing color and quantity. Contact Synno today for a quotation.
