Product details

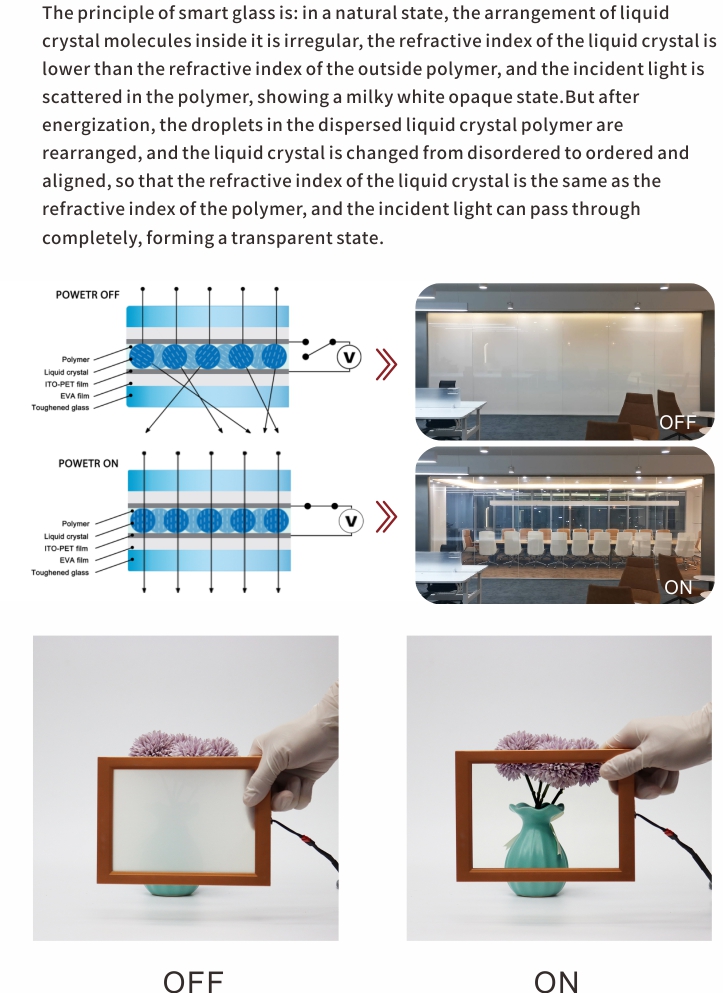

The principle of smart glass is

in a natural state, the arrangement of liquid crystal molecules inside it is irregular, the refractive index of the liquid crystal is lower than the refractive index of the outside polymer, and the incident light is scattered in the polymer, showing a milky white opaque state.But after energization, the droplets in the dispersed liquid crystal polymer are rearranged, and the liquid crystal is changed from disordered to ordered and aligned, so that the refractive index of the liquid crystal is the same as the refractive index of the polymer, and the incident light can pass through completely, forming a transparent state.

Product Paramenters

SItem Description			Suoer Clear PDLC Glass(CT-125)	Super Clear PDLC Glass（CT2-188）	HD PDLC Smart Glass(GT-188)	HD PDLC Smart Glass (GT2-188)
Optical Test	Transmittance(Visable)	ON	86%	89%	78%	80%
	Transmittance(Visable)	OFF	58%	65%	58%	60%
	Transmittance(Parellel)	ON	>75%	＞75%	＞75%	＞75%
	Transmittance(Parellel)	OFF	<6%	＜6%	＜6%	＜6%
	Infrared barrier coefficient	ON	14.5%	15.6%	14.5%	15.6%
	Infrared barrier coefficient	OFF	60%	59.5%	36%	59.5%
	Visual angle	ON	140°	145°	140°	145°
	Haze	ON	<5%	＜3.4%	<5%	＜3.7%
	Haze	OFF	>90%	＞90%	>90%	>90%
	UV barrier coefficient	ON	92%	92%	92%	92%
	UV barrier coefficient	OFF	99.6%	99.6%	99.6%	99.6%
Eletrical Test	Working Voltage	ON	AC 60V	AC 48-60V	AC 48-60V	AC 48-60V
	Saturation Voltage	ON	AC 60V	AC 60V	AC 60V	AC 60V
	Response Time	ON-OFF	200ms	200ms	200ms	200ms
	Response Time	OFF-ON	10ms	10ms	10ms	10ms
	Power Consumption	ON	6w/sqm	6w/sqm	6w/sqm	6w/sqm
Mechanical Parameter	Thickness		10-30mm	10-30mm	10-30mm	10-30mm
Mechanical Parameter	Maximum Size		1100*3000mm	1100*3000mm	1900*3500mm	1500*3500mm
Environmental Parameter	Working Temperature		-10°C - 65°C	-10°C - 65°C	-10°C - 65°C	-10°C - 65°C
	Storage Temperature		0°C - 40°C	0°C-35°C	0°C-35°C	0°C-35°C
	Service Life		>50000 hours	>50000 hours	>50000 hours	>50000 hours
	Switch Life		> 1000000 times	> 1000000 times	> 1000000 times	> 1000000 times

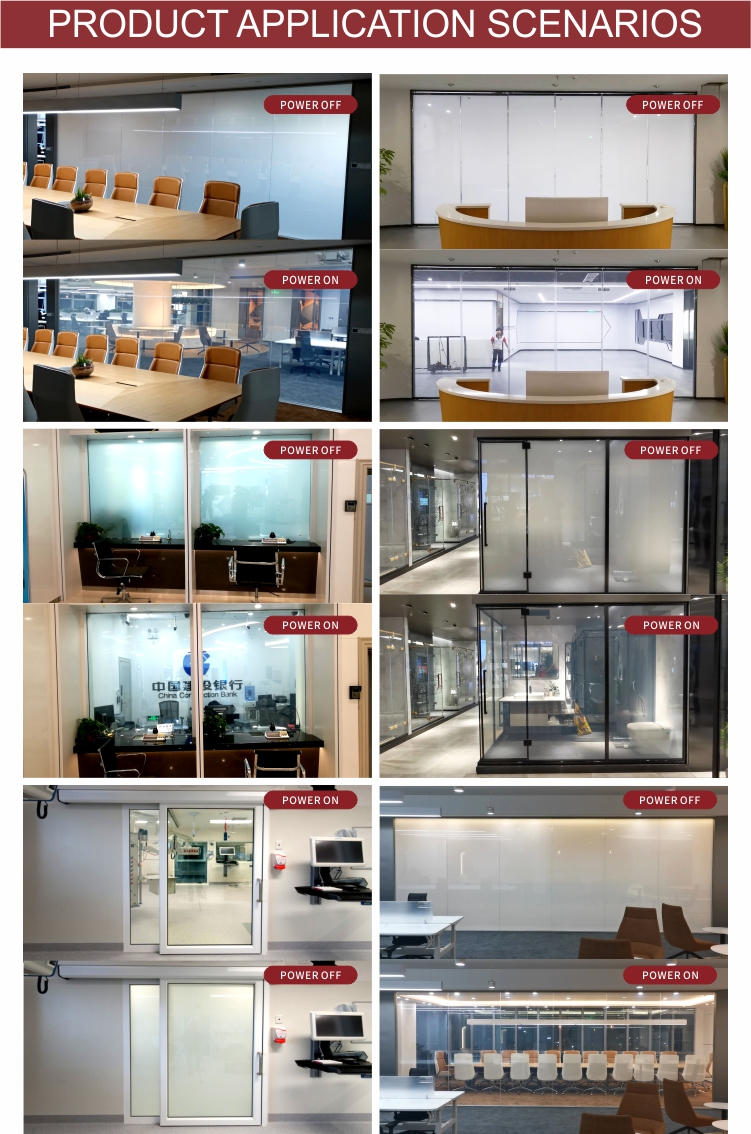

Product Application Scenarios

Other related products: Fire Resistant Glass, Insulated Glass, Laminated Glass
