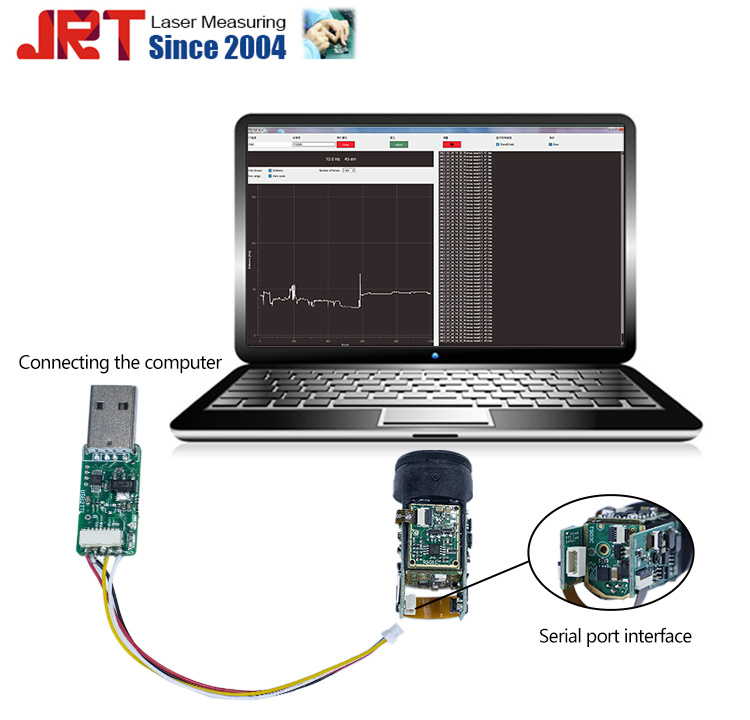

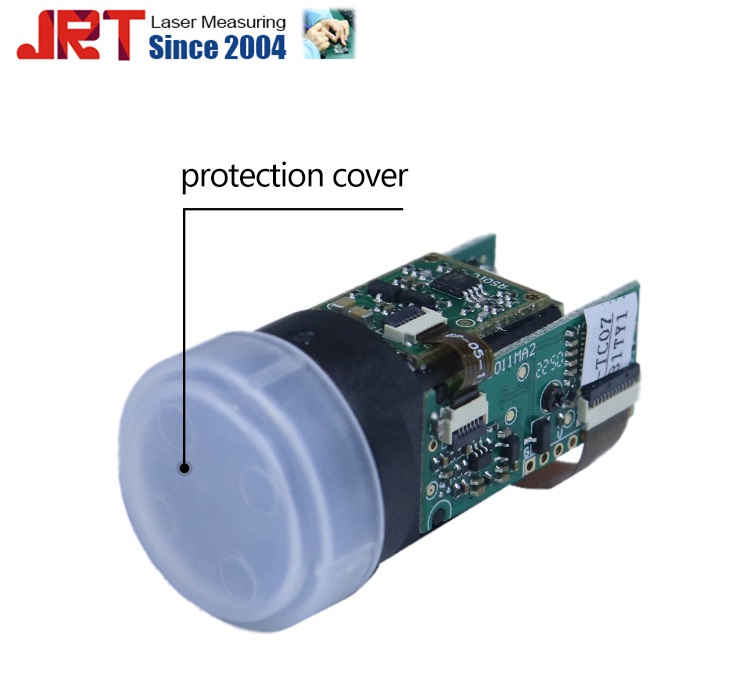

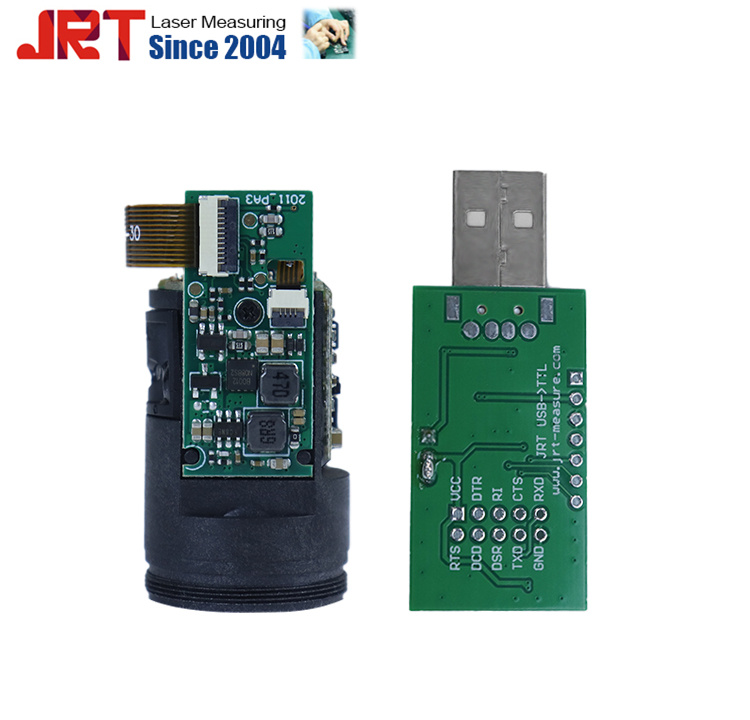

TC25 series laser rangefinder module is the latest generation of outdoor long-distance laser radar distance module, with small size(43*φ25mm), light weight(15g), strong measuring ability(1500m), high measuring accuracy(±0.5m), easy installation and operation. With USB connector, customers can test easily, via insert to the computer. This Long Laser Sensor already used in many fields, like Night Binoculars, Golf, Power Industry etc. hot applications. How about your project? Welcome to discuss more with us.

Key Characteristics

1. The measurement distance can reach 1500m in the outdoor sunlight;
2. High and low temperature range -20~+50℃;
3. Compact volume: length 43mm, diameter 25mm;
4. Light weight: about 15g
5. UART TTL output distance of the measured object, easy to use;


TECHNICAL PARAMETERS:
Rangefiner Module model: TC25
The measurement range: 3-1500m 70% Reflectivity
Measurement accuracy: +/-0.5m~ +-1m
The Resolution: 0.1m
Laser Class: class 1 laser
Laser type: 905nm laser
Working Voltage: 2.5 to 3.5V

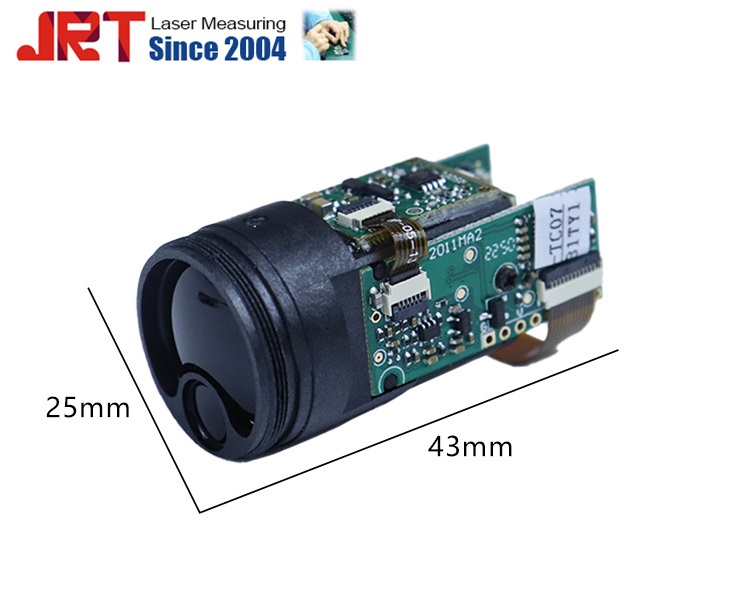

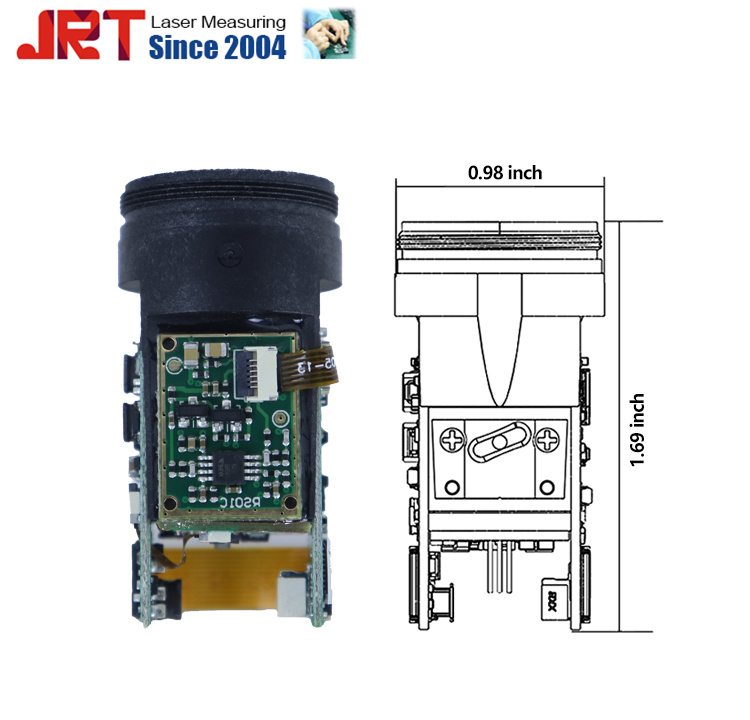

Volume: 43*φ25mm (43mm long, 25mm diameter)
Weight: 15g
Output: Serial port communication, UART
Operating temperature range: 0-50 ℃(lower temperature can be customized)
Storage temperature range: -20 ~ 50℃
Current: 100mA
Power consumption: 330mW 3.3V
Baud rate: 115200bps (default)

Notes:
1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.

2. Under strong light or bad diffuse reflectance of target, please use a reflector.
3. Voltage can be changed by power converter LDO
4. Frequency would be affected by environment.
5. Operating temperature -10 ℃~50 ℃ can be customized.
6. Analog can be customized.
