Product details

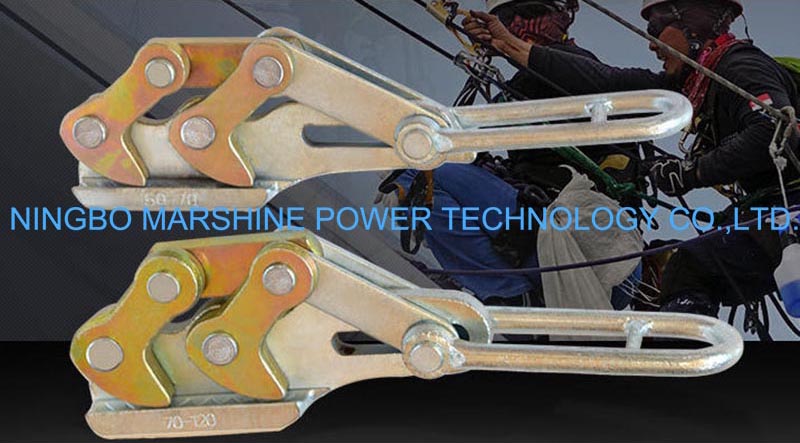

Alloy Steel Dual Cam Wire Rope Grip

The MARSHINE makes tough tools that can handle heavy loads and help power or transmission teams put the cables in place safely and smoothly. Our MARSHINE focuses on making reliable and adaptable tools that work with conductors of different sizes and help reduce the chance of damage during tensioning. The MARSHINE Alloy Steel Dual Cam Wire Rope Grip is made from forged steel and built tough, which designed to securely grip steel strands and keep the tension steady while you’re installing them.

There are three types of MARSHINE Alloy Steel Dual Cam Wire Rope Grip, which are the 25-50mm², and the maxitml opening is 11mm, working load 10kN, breaking load 20kN, and weight is 1.9kg.

The 50-70mm² of the maxitml opening 13mm, working load 20kN, breaking load 40kN, and weight is 2.4kg.

And the 70-120mm² model of the max opening is 15mm, working load is 30kN, breaking load is 60kN, and the weight is 3.5kg.

This Come Along Clamp is made from forged steel, which make it tough enough for outdoor use.

The clamp includes a positive safety lock, which ensures that the clamp stays securely closed while in use.

The come along grip is suitable for high voltage overhead transmission line that can hold 25-50mm² steel strands.

It is a key instrument for transmission line replacement, tension replacement conductors with 20kN rated load clamps.

This MARSHINE Wire Rope Grip is good in country electrification schemes, which can put steel strands out along braches of country transmission line.

It is applicable to bemond use transnational power pili, and using clamps with a rated load of 30kN to carry heavy conductors.

Product Parameter

Model	Applicable Steel Strand (mm²)	Max. Opening (mm)	Rated Load (kN)	Ultimate Load (kN)	Weight (kg)
CAG-1	25-50	11	10	20	1.9
CAG-2	50-70	13	20	40	2.4
CAG-3	70-120	15	30	60	3.5
