Hanging Hook Wire Straight Line Cable Roller

4 year ago

30 0 

5 year

Product details

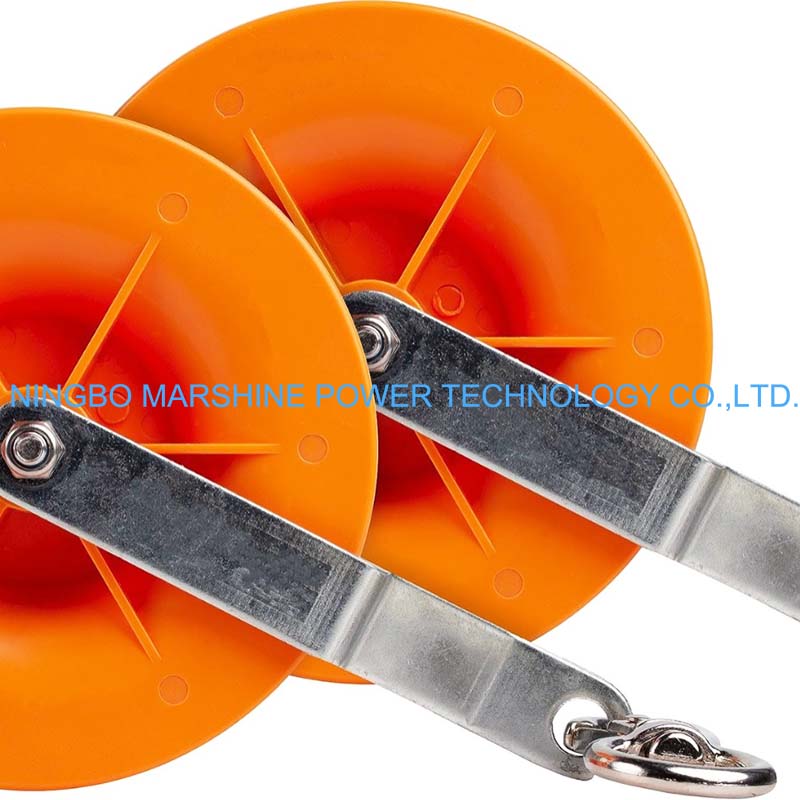

Pole Mounted Installation Pulley For LV Cable & Coaxial Cable

As a cable installation tools and equipment supplier who owns 20 years experience to provide global electricians and utility linemen with ideal solutions at the competitive price, our MARSHINE insists on creating a more sustainable future. This MARSHINE Pole Mounted Installation Pulley For LV Cable & Coaxial Cable is one of our durable cable installation pulley for low voltage cables, network cables, and coaxial cables. It can handle the cable mounting works by reducing labor efforts, and guide the cables smoothly.

The MARSHINE Pole Mounted Stringing Pulley is a last long and easy to operate cable guide tool for low voltage electrical, network and coaxial cable installation tasks. Inspired by professional quality pulley system, this tool is pole-mountable, so installers can run cables cleanly across structures, ceilings or poles. It also aligned the cable properly and minimize the friction for pulling, and prevent cable from damage like kinks or scratches, greatly increasing the work efficiency and ease of operation.

Product Feature

Pole-Mounted Suspension Design

Includes a swivel hook or mounting bracket for easy pole, beam, or frame attachment allowing for versatile installation orientations.

Smooth Anti-Friction Roller Bearings

This MARSHINE Pole Mounted Installation Pulley is equipped with anti-friction bearing that makes the cable moving smoothly, which can reduce the pulling force and also reduce the fatigue of the cable.

Deep Groove Cable Guidance

Unique Designed grooves ensure that cables are guided in line with the direction of pulling, avoiding tangles, snarls and kinks.

Multi-Cable Capacity

It can supports multi-cable pulling, which is perfect for large projects.

Robust Material Construction

Fabricated from high grade ABS, ensuring its longevity during the long term usage across diverse applications.

Light Weight & Easy Removal

Small, compact and light weight, can be installed and disassembled easily once cable pulling completed.

Cable Protection Design

It minimizes friction and retains the correct bending radius, which helps to prevent damage to the cable jacket and the internal configuration.

Product Application

Our MARSHINE Pole Mounted Cable Pulley is suitable for guiding and pulling power cables through houses, businesses, industrial buildings and more.

It is also perfect for installing your CAT5/6 Ethernet cables in your structured cabling solution.

Ensuring a Well-run coax cables installation for TV, communication and security systems.

Can run your cables along a pole, beam, or ceiling in overhead installation.

Enabling safe and effective cable replacement or extension work.

Technical Parameters

Model	SHN-CP-475
Applicable cable	LV cables/Network cables/Coaxial cables
Load capacity	28 kg
Breaking load	150 kg
Roller groove diameter	71 mm
Roller material	ABS
Frame material	Alloy steel
