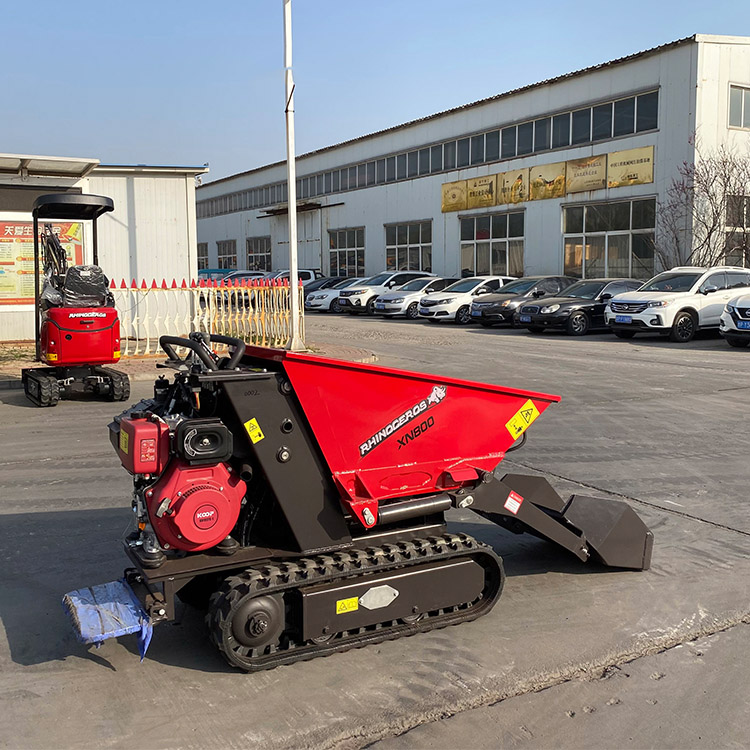

XN800 0.8Ton Dumper
3 year ago

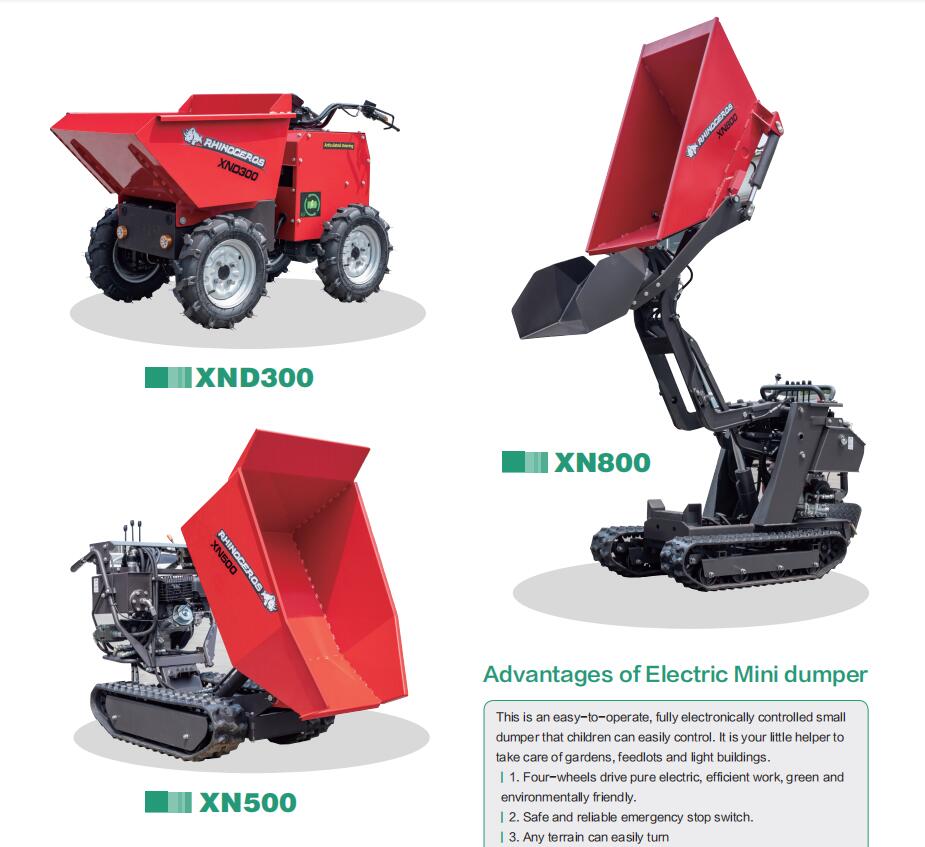

Advantages of Mini dumper:
This is an easy-to-operate, truly electronically managed small dumper that youngsters can barring state of affairs control. It is your little helper to take care of gardens, feedlots and average buildings.
1、Use Gasoline engine, surroundings satisfactory work, inexperienced and environmentally friendly.
2. Safe and dependable emergency give up switch.
3. Any terrain can besides problem turn
4. Easily to discharge the cloth absolutely autonomously.
5. The width is 700mm, which can flexibly enter and exit indoors and outdoors.
Specification of mini dumper :
| Model | XN800 | |
| Machine weight | 630kg | |
| Maximum load | 800kg | |
| Dump capacity | 0.26m³ | |
| Type | Dump | |
| Engine | Model | KOOP 192 |
| Displacement | 0.499L | |
| Rated power/speed | 7.6 Kw/3000r/min | |
| Max. torque | 23.8N.m/3000r/min | |
| Weight | 50 kg | |
| Size | 441×417×494/mm | |
| Speed | Max. speed | 4.2km/h |
| Min. speed | 2.1km/h | |
| Max. gradeability | 30° | |
| Track | Ground pressure | 21.21KPa |
| Material | Rubber | |
| Tightening type | Screw adjustment | |
| Hydraulic system | Pump type | Gear Duplex Pump |
| Pressure | 16MPa | |
| Flow | 30L /min | |
| Hydraulic oil tank | 12.8L | |
| Fuel tank | 5.5L | |
