P4 indoor fixed install Iron LED Screen
2 year ago
Product Introdution
The P4 refers to the pixel pitch of the LED screen, which is the
distance between each LED pixel. A smaller pixel pitch, such as P4,
means that the LED screen can display higher resolution images and
videos with greater clarity and detail.

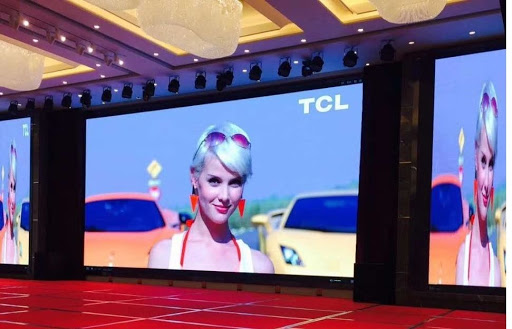

The indoor fixed install advertising LED screen is designed to be
permanently installed in a specific location, such as on a wall or
ceiling. It is typically made up of modular panels that can be assembled
to create a custom-sized display that fits the specific needs of the
installation.
The LED screen is controlled by a video processor or a computer that
sends images and videos to the display. It can display a wide range of
content, including static images, videos, animations, and live feeds.
Overall, the P4 indoor fixed install advertising LED screen is a
powerful marketing tool that can help businesses attract and engage
customers with high-quality, dynamic content.
Application

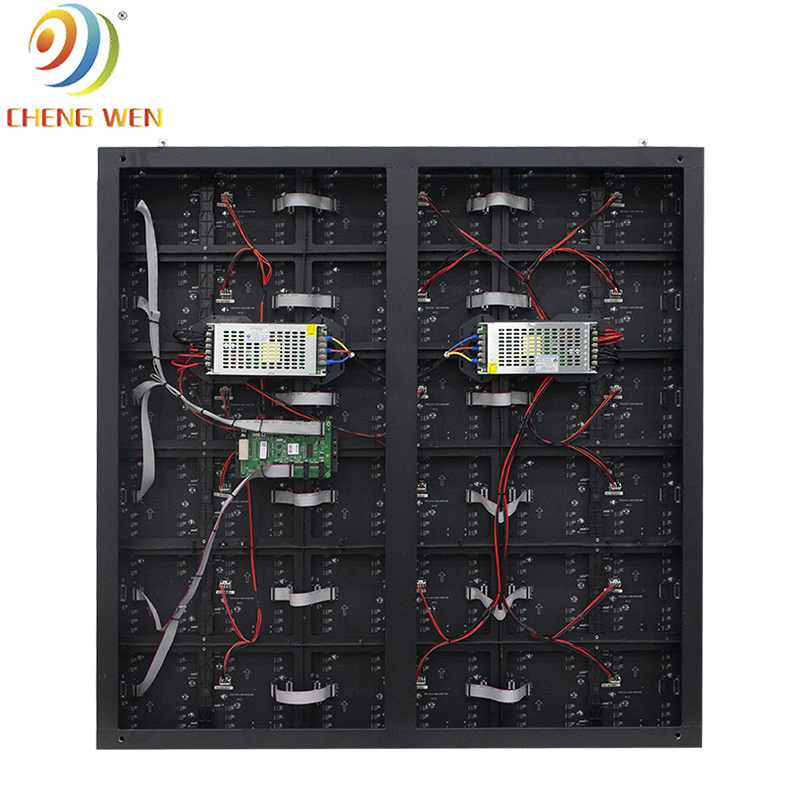

The LED screen is fixed in place, which means that it is not portable and requires professional installation. The screen is made up of individual LED modules that are connected together to create a larger display. The modules can be easily replaced if they become damaged or need to be upgraded.
Packing Solution
Wooden box packing refers to the practice of using wooden boxes to package and transport goods. Wooden boxes are a popular choice for packing because they are sturdy, durable, and offer excellent protection for the contents. They can be customized to fit the specific dimensions of the product being shipped, and can be designed to include features such as padding, partitions, and locking mechanisms. Wooden box packing is commonly used for shipping valuable or fragile items, such as artwork, antiques, and electronics. It is also used in industries such as agriculture, where wooden boxes are used to transport produce and other goods.
Data Sheet
|
MAIN TECHNICAL PARAMETERS FOR INDOOR LED DISPLAY(PITCH4) |
|||
|
（Technical parameters） |
UNIT |
（ parameters values ） |
|
|
（Pixel pitch） |
MM |
4 |
|
|
（Panel size） |
MM |
L256*H128*T14 |
|
|
（Physical density） |
/M2 |
62500 |
|
|
（Pixel configuration） |
R/G/B |
1,1,1 |
|
|
（Driving method） |
|
1/16 Constant current 1/16scan |
|
|
（LED Encapsulation） |
SMD |
2121 |
|
|
（Display resolution） |
DOTS |
64X32=2048 |
|
|
（Module weight） |
KG |
0.20 |
|
|
（Module port） |
|
HUB75-E |
|
|
（Module working voltage） |
VDC |
5 |
|
|
（Module consumption ） |
W |
13 |
|
|
Panel Parameters |
|||
|
（Viewing angle） |
Deg. |
140 |
|
|
（Option distance） |
M |
4-50 |
|
|
（Driving device） |
IC |
IC:2037/2153 |
|
|
（Every square metre module） |
PCS |
30.52 |
|
|
（Maximum power） |
W/ M2 |
400 |
|
|
（Frame Frequency） |
HZ/S |
≥60 |
|
|
（Refresh frequency） |
HZ/S |
≥1920-3840hz |
|
|
（Equilibrium brightness） |
CD/ M2 |
≥1200-1500mcd |
|
|
（Working environment temperature） |
0C |
-20~60 |
|
|
（Working environment humidity） |
RH |
10%～70% |
|
|
（Display working voltage） |
VAC |
AC46～54HZ，220V±15%/110V±15% |
|
|
（Colour temperature） |
|
8500K-11500K |
|
|
（Gray scale/color） |
|
≥16.7M color |
|
|
（Input signal） |
|
RF\ S-Video\ RGB etc |
|
|
（Control system） |
|
NOvaStar Linsn Coloright |
|
|
（Mean free error time） |
HOURS |
＞5000 |
|
|
（Life） |
HOURS |
100000 |
|
|
（Lamp failure frequency） |
|
＜0.0001 |
|
|
（Antijam） |
|
IEC801 |
|
|
（Safety） |
|
GB4793 |
|
|
（Resist the electricity） |
|
1500V last 1min No breakdown |
|
|
（IP rating） |
|
The back IP40，The front IP50 |
|
|
（Steel box size） |
mm |
L768Xh768/512X512/604*640/960*960 |
|
