Product Introduction

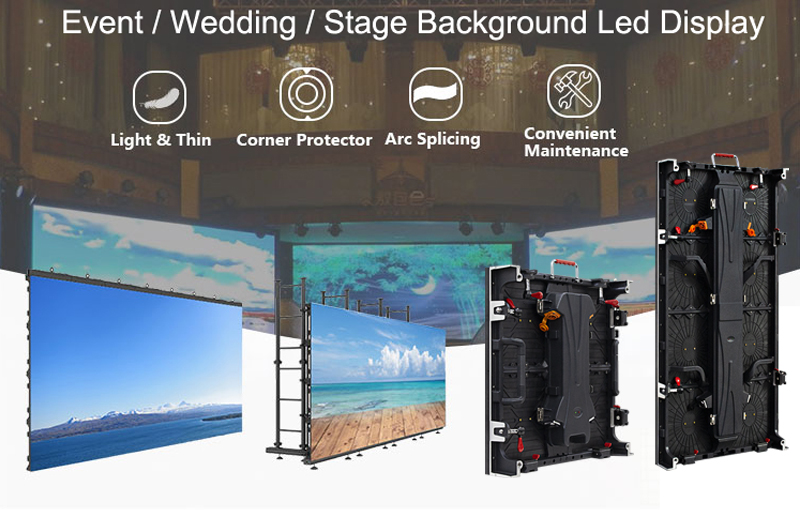

LED Screen P2.6 outdoor rental stage LED display is a type of LED display that is designed for outdoor use, specifically for rental purposes. It has a pixel pitch of 2.6mm, which means that the distance between each LED is 2.6mm Outdoor Rental Stage Event Led Display. This results in a high-resolution display that is capable of displaying clear and sharp images even from a distance.

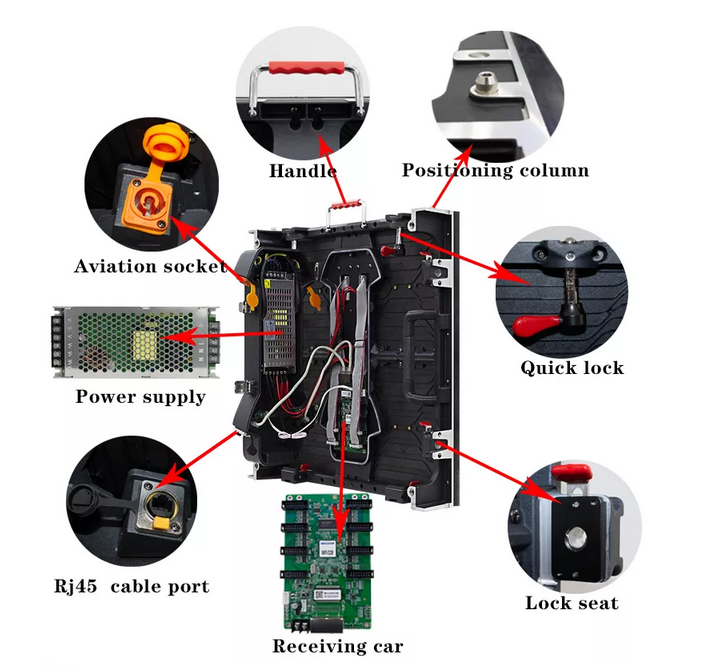

The outdoor rental stage LED display is made up of individual LED modules that can be connected together to form a larger display. This modular design makes it easy to assemble and disassemble for rental purposes. It can be used for a variety of events such as concerts, festivals, trade shows, and outdoor advertising.
Overall, the P2.6 outdoor rental stage LED display is a versatile and durable display that is ideal for outdoor events and advertising. Its high resolution, modular design, and weather-resistant features make it a popular choice for rental companies and event organizers.
Application
The P2.6 outdoor rental stage LED display is also designed to withstand outdoor conditions. It is water-resistant and can withstand extreme temperatures, making it suitable for use in different weather conditions. Additionally, it has a high brightness level, which ensures that the display is visible even in bright sunlight.
Packing Solution
Packing way: Flight case
Data Sheet
|
MAIN TECHNICAL PARAMETERS FOR INDOOR LED DISPLAY(PITCH 2.604) |
|||
|
（Technical parameters） |
UNIT |
（ parameters values ） |
|
|
（Pixel pitch） |
MM |
2.6 |
|
|
（Panel size） |
MM |
L250*H250*T15 |
|
|
（Physical density） |
/M2 |
160000 |
|
|
（Pixel configuration） |
R/G/B |
1,1,1 |
|
|
（Driving method） |
|
1/24 Constant current 1/24scan |
|
|
（LED Encapsulation） |
SMD |
1415 |
|
|
（Display resolution） |
DOTS |
96X96=9216 |
|
|
（Module weight） |
KG |
0.58 |
|
|
（Module port） |
|
HUB-HD75E |
|
|
（Module working voltage） |
VDC |
5 |
|
|
（Module consumption ） |
W |
29 |
|
|
Panel Parameters |
|||
|
（Viewing angle） |
Deg. |
140 |
|
|
（Option distance） |
M |
2-30 |
|
|
（Driving device） |
|
IC:1065s |
|
|
（Every square metre module） |
PCS |
16 |
|
|
（Maximum power） |
W/ M2 |
460 |
|
|
（Frame Frequency） |
HZ/S |
≥60 |
|
|
（Refresh frequency） |
HZ/S |
7680Hz |
|
|
（Equilibrium brightness） |
CD/ M2 |
≥5500-6500mcd |
|
|
（Working environment temperature） |
0C |
-20~60 |
|
|
（Working environment humidity） |
RH |
10%～70% |
|
|
（Display working voltage） |
VAC |
AC47~63HZ，220V±15%/110V±15% |
|
|
（Colour temperature） |
|
6500K-10000K |
|
|
（Gray scale/color） |
|
≥16.7M color |
|
|
（Input signal） |
|
RF\ S-Video\ RGB etc |
|
|
（Control system） |
|
NovaStar Linsn Coloright |
|
|
（Mean free error time） |
HOURS |
＞5000 |
|
|
（Life） |
HOURS |
100000 |
|
|
（Lamp failure frequency） |
|
＜0.0001 |
|
|
（Antijam） |
|
IEC801 |
|
|
（Safety） |
|
GB4793 |
|
|
（Resist the electricity） |
|
1500V last 1min No breakdown |
|
|
（IP rating） |
|
The back IP40，The front IP65 |
|
|
（Steel box size） |
mm |
L500Xh500/500x1000 |
|
