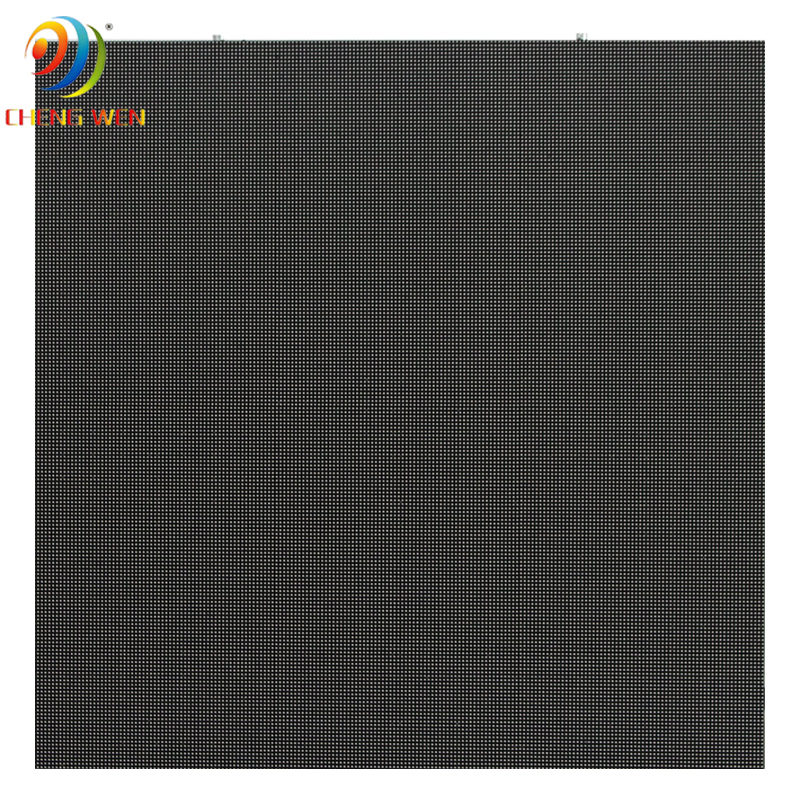

P5 outdoor fixed install advertising LED Display
3 year ago
Product Introduction
One of the key features of the P5 SMD Outdoor Fixed Install Advertising LED Screen is its high level of brightness. This LED screen is capable of producing up to 7000 nits of brightness, which means that it can be easily seen even in bright sunlight. The P5 SMD Outdoor Fixed Install Advertising LED Screen also has a wide viewing angle, which means that it can be viewed from a variety of different angles without any loss of image quality.
In addition to its high-quality image performance, the P5 SMD Outdoor Fixed Install Advertising LED Screen is also designed to be durable and reliable. This LED screen is made with high-quality components and materials, which means that it can withstand exposure to the elements and other environmental factors.
Overall, Outdoor Fixed Advertising LED Video Wall the P5 SMD Outdoor Fixed Install Advertising LED Screen is a high-quality LED display that is ideally suited for outdoor advertising applications. With its high level of brightness, color accuracy, and durability, this LED screen is an excellent choice for businesses and organizations that want to create eye-catching and effective outdoor advertising displays.
Application
The P5 SMD Outdoor Fixed Install Advertising LED Screen is a high-quality LED display that is designed for outdoor advertising applications. This LED screen is made with SMD technology, which allows for a high level of brightness and color accuracy. The P5 SMD Outdoor Fixed Install Advertising LED Screen has a pixel pitch of 5mm, which means that it has a high level of detail and resolution.
This LED screen is designed for fixed installations, which means that it is intended to be permanently mounted in a specific location. The P5 SMD Outdoor Fixed Install Advertising LED Screen is suitable for a wide range of outdoor applications, including advertising, events, and public displays.
Packing Solution
Packing way: Wooden box
Data Sheet
|
MAIN TECHNICAL PARAMETERS FOR OUTDOOR LED DISPLAY(PITCH5) |
|||
|
（Technical parameters） |
UNIT |
（ parameters values ） |
|
|
（Pixel pitch） |
MM |
5 |
|
|
（Panel size） |
MM |
L320*H160*T14 |
|
|
（Physical density） |
/M2 |
40000 |
|
|
（Pixel configuration） |
R/G/B |
1,1,1 |
|
|
（Driving method） |
|
1/8 Constant current 1/8scan |
|
|
（LED Encapsulation） |
SMD |
1921 |
|
|
（Display resolution） |
DOTS |
64*32=2048 |
|
|
（Module weight） |
KG |
0.25 |
|
|
（Module port） |
|
HUB-HD75 (2) |
|
|
（Module working voltage） |
VDC |
5 |
|
|
（Module consumption ） |
W |
25 |
|
|
Panel Parameter |
|||
|
（Viewing angle） |
Deg. |
140 |
|
|
（Option distance） |
M |
4-30 |
|
|
（Driving device） |
|
IC:1065s |
|
|
（Every square metre module） |
PCS |
19.5 |
|
|
（Maximum power） |
W/ M2 |
490 |
|
|
（Frame Frequency） |
HZ/S |
≥60 |
|
|
（Refresh frequency） |
HZ/S |
7680HZ |
|
|
（Equilibrium brightness） |
CD/ M2 |
≥5500-6500mcd |
|
|
（Working environment temperature） |
0C |
-10~60 |
|
|
（Working environment humidity） |
RH |
10%～70% |
|
|
（Display working voltage） |
VAC |
AC47~63HZ，220V±15%/110V±15% |
|
|
（Colour temperature） |
|
7000K-10000K |
|
|
（Gray scale/color） |
|
≥16.7M color |
|
|
（Input signal） |
|
RF\ S-Video\ RGB etc |
|
|
（Control system） |
|
NovaStar Linsn Coloright |
|
|
（Mean free error time） |
HOURS |
＞5000 |
|
|
（Life） |
HOURS |
100000 |
|
|
（Lamp failure frequency） |
|
＜0.0001 |
|
|
（Antijam） |
|
IEC801 |
|
|
（Safety） |
|
GB4793 |
|
|
（Resist the electricity） |
|
1500V last 1min No breakdown |
|
|
（IP rating） |
|
The back IP40，The front IP65 |
|
|
（Steel box size） |
mm |
L640*h640/960x960 |
|
