SLY510 drilling using mud pump.mp4
4 year ago

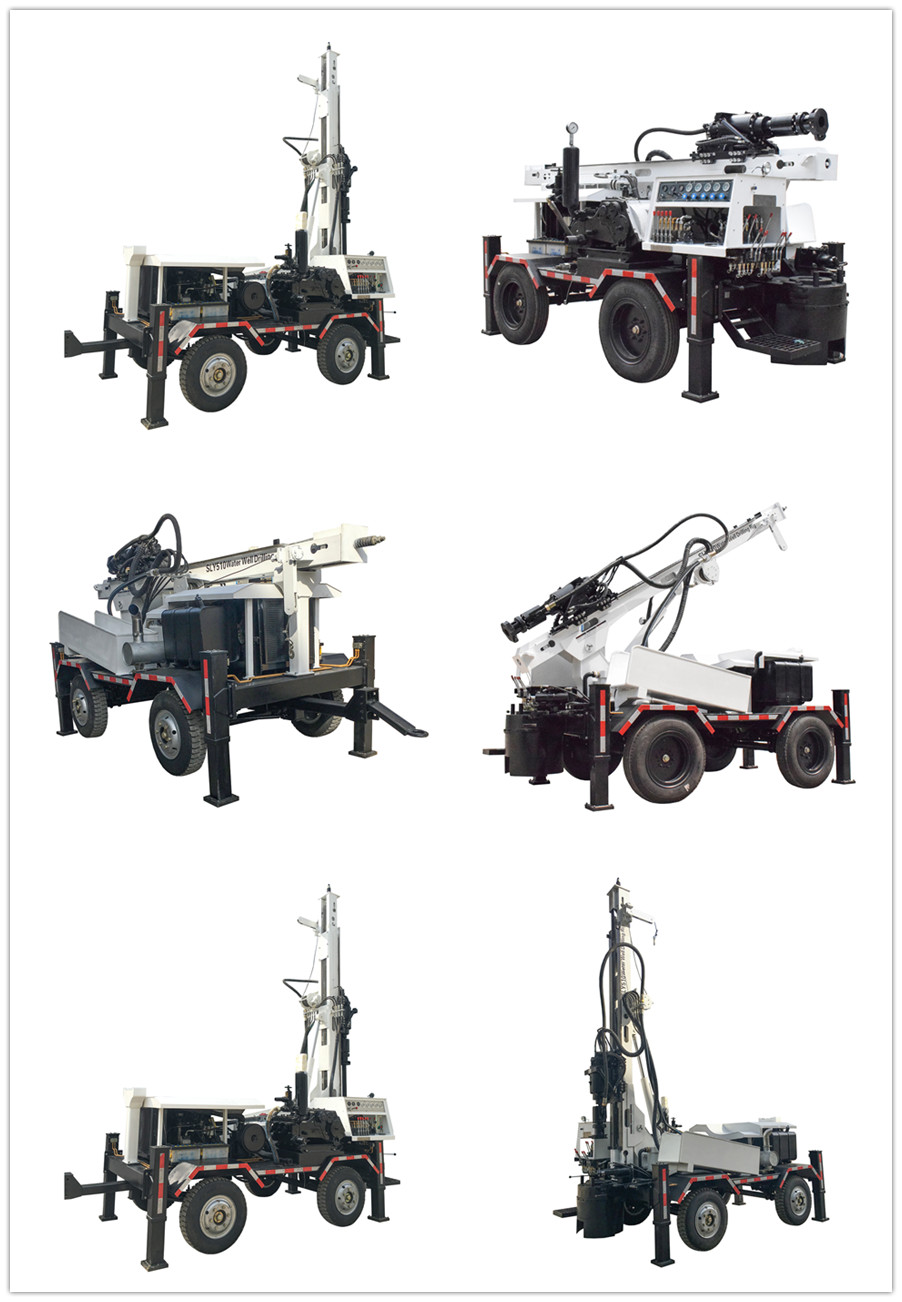

Trailer Mounted Water Borehole Drilling Machine
SLY510 trailer mounted water well drilling rig is lightweight, efficient, multi-purpose drilling equipment, which can use air, foam or mud rotary for percussive drilling according to different textures. It is widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells or other exploration boreholes, in particular, in drilling hole for geothermal heating it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connectedwithavarietyofengineeringrequirements
Main technical parameters.
|
Drilling hole diameter |
Φ115---φ300mm |
|
Drilling hole depth |
260m |
|
Mud pump (optional) |
BW450/5 |
|
Mud pump pressure |
2.0---5.0 MPa |
|
Mud pump capacity |
172---450L/min |
|
Air consumption (DTH hammer) |
16---30 m³/min |
|
Air pressure (DTH hammer) |
1.05---3.0 MPa |
|
Once promotion |
2000mm |
|
Skid pitch |
90° |
|
Rotation speed |
0---100 r/min |
|
Maximum rotation torque |
3900 Nm |
|
Maximum lift power |
6.5 T |
|
Walk speed |
40 km/h |
|
Host power |
56 Kw |
|
Dimensions （L*W*H) |
5425*2250*2470 mm |
|
Total weight |
6000 kg |
...................................
R F Q:
1. The payment terms: Pay 30% deposit in advance by T/T firstly, then pay the balance70% before delivering the products.
2. The time of delivery: Deliver the products within 2 days after receiving the total price.
3. The quotation validity date:40 days; Machine manufacturing time: 5-7 days;
4. Loading: 1 set machine uses 1*40 feet high container; 1*40 feet high container for maximum 3 sets.
Q1: What’s your delivery time?
A: 15 days to produce, within 3 days if in stock.
Q2: What’s methods of payments are accepted?
A: We agree T/T ,L/C , West Union ,Money Gram ,Paypal.
Q3: What about the shipments and package?
A: 40' container for 2 sets, 20' container for 1 set,
Machine in nude packing, spare parts in standard export wooden box.
Q4: Have you got any certificate?
A:We have got ISO,CE certificate.
Q5: How to control the quality?
A: We will control the quality by ISO and CE requests.
Q6: Do you have after-sale service and warranty service ?
A: Yes, we have.We can supply instruction for operation and maintenance.If necessary, we can send our engineer to repair the machine in your company.
Warranty is one year for the machine.
Q7: Can I trust your company ?
A: Our company has been certificated by Chinese government,and verified by SGS Inspection Company.Just order from US !
We are factory manufacturer, and we have our own export license .
