0.2 mm slot tubes

3 year ago
11 0
Product details

General information

1. What is wedge wire?

Wedge wire filter elements are made from shaped wires referred to as profiles and other shaped wires referred to as support rods.

The surface profile wires are accurately spaced and welded to the support rods.The welding is done by automatic resistance welding.

Stainless Steel Wedge Wire Screen Distributor

2.Why choose for wedge wire?

1. High flow rate

2. Low pressure drop

3. Optimum structural strength for heavy loads

4. Long-life-almost endless cleanable

5. Thermal resistance

6. Corrosive application suitability

7. High pressure/pulsating pressure capability

8. Minimal plugging and blinding

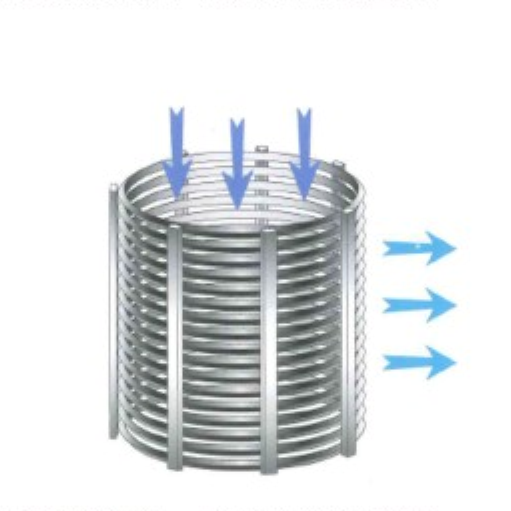

316 Normal Radial Internal Wire Filter Element2304 Nomal Radial External Wire Filter Element3

3.Why choose for Shengda filtration?

-best quality

-high precision

-the shortest date of delivery

-excellent service

Company

4.What does we make?

Shengda Filtration is engaged in research,design and manufacture of filtration products since establishment in 1998.Our Separation Machinery Business Division mainly makes three basic forms,almost all shapes and sizes can be developed according to the customers wish,namely:

-Slot Nozzle Cup

-Johnson tube

-Johnson screen support grid

5.Johnson Screen Collector and Distributor Headers with Laterals

To minimize pressure drop of catalyst bed and improve the distribution of reactant,the outlet basket supports the bed and prevents the porcelain balls at the bottom of reactor from leaking.We have accumulated abundant experience and design and produce it with many structures applied in many industries.

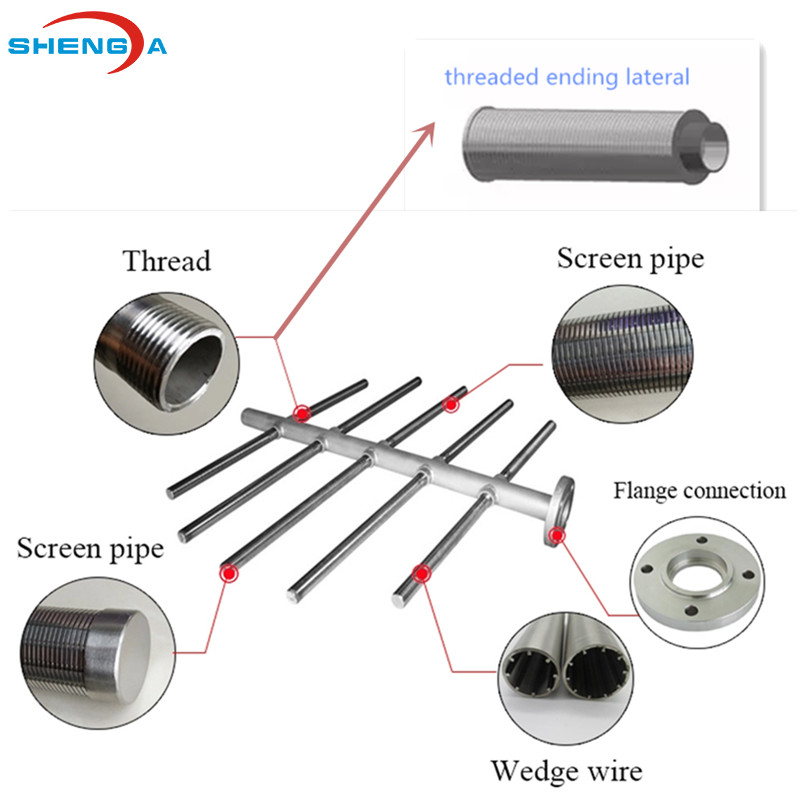

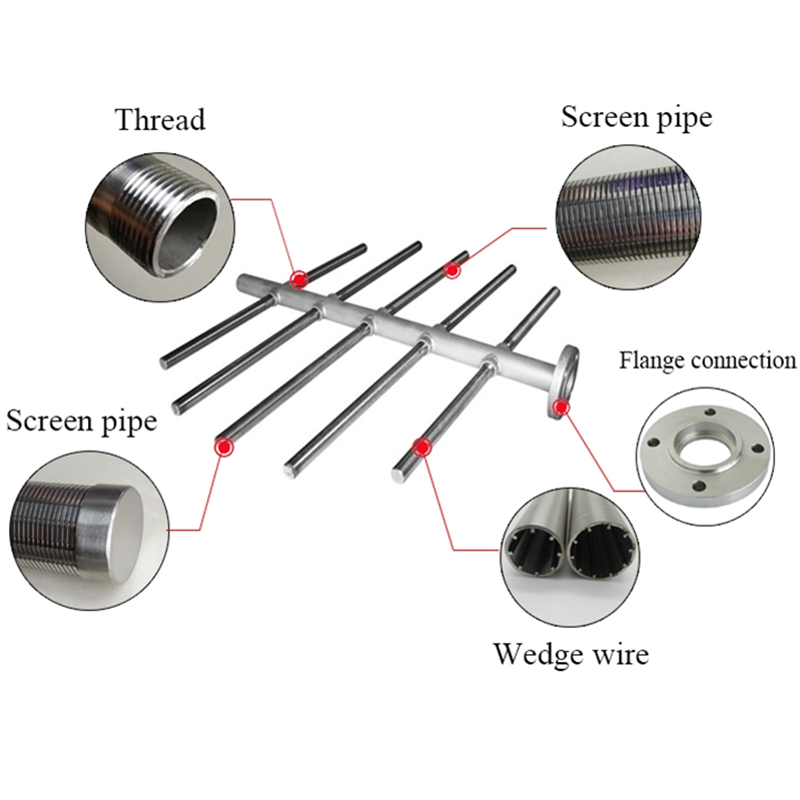

Johnson Screen Collector and Distributor Headers with Laterals

A collector/distributor assembly utilizing a header pipe or a hub to which several filtering tubes are attached to enable excellent collection or distribution.The purpose of the top distribution and collector assembly is to ensure that the process fluid flows evenly through the bed. The purpose of the bottom distributor and collector assembly is to collect treated fluid and transfer it through the side walls of vessel or lateral a single wedge wire screen or screen jacket with an internal perforated pipe control distribution and add mechanical strength where required.

Wedge Wire Stainless Steel Lateral Sand Filter7
