Long distance military laser range finder 1km sensor
JRT long distance military laser range finder 1km sensor can measure from 3m to 1km. This industrial laser distance sensor is high frequency up to 3 hz. Also, the long distance design is helpful for outdoor using, and it's good for your project ease of manufacture and facilitated assembly, like Drone, Railway Monitoring.
Technical Specifications:
Module model: PTFS-1200m
Measuring range: 3~1000m
Measurement accuracy: +/-1m
Resolution: 0.1m
Laser class: Class II laser
Laser type: 905nm laser
Working voltage: 2.5~3.5V

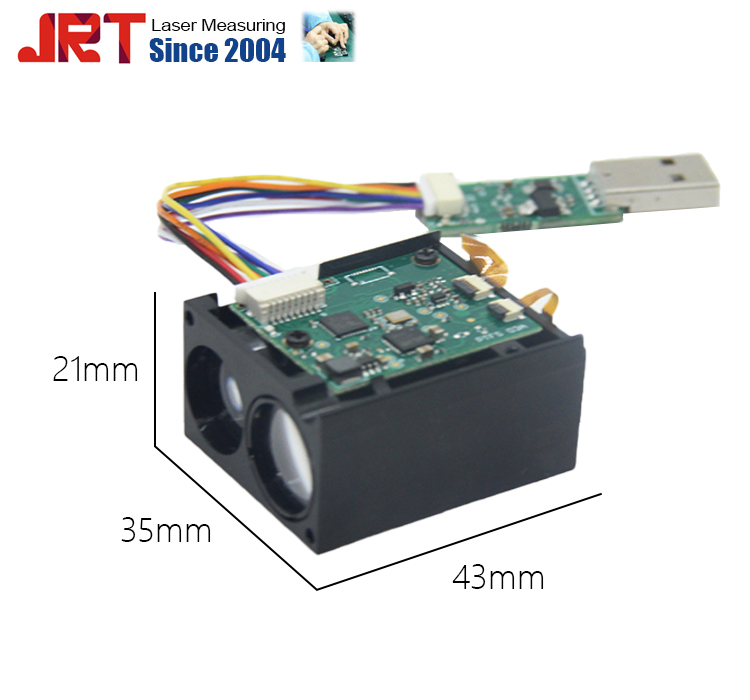

Volume: 43*35*21mm
Weight: 20g
Output mode: TTL serial port
Operating temperature: 0-50 ℃
Storage temperature range: -25~60℃
Working Current: 100mA
Power consumption: 330mW @ 3.3V
Baud rate: 115200bps (default)
1000m Range finder Working Principle
Notes:
1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.
2. Under strong light or bad diffuse reflectance of target, please use a reflector.
3. 60m can be customized.
4. Voltage can be changed by power converter LDO
5. Frequency would be affected by environment.
6. Operating temperature -10 ℃~50 ℃ can be customized.
7. Analog can be customized.

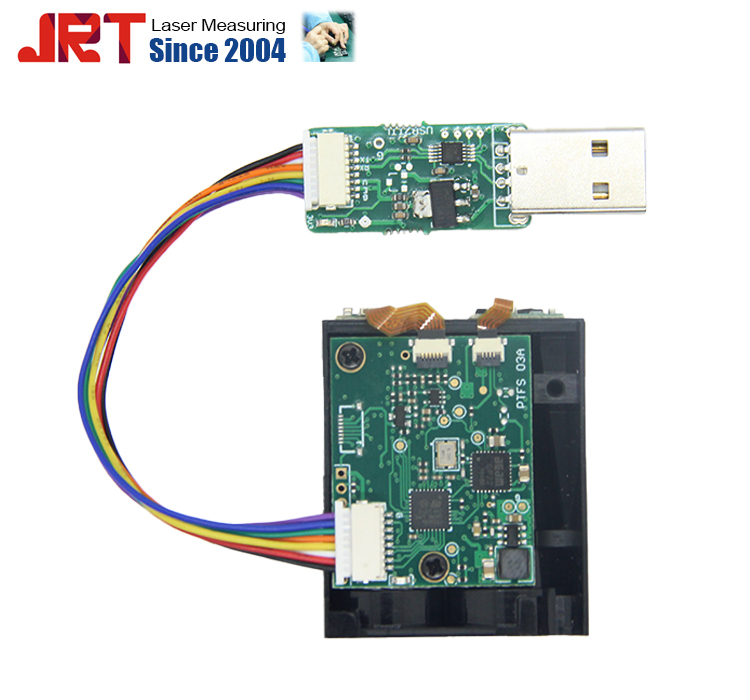

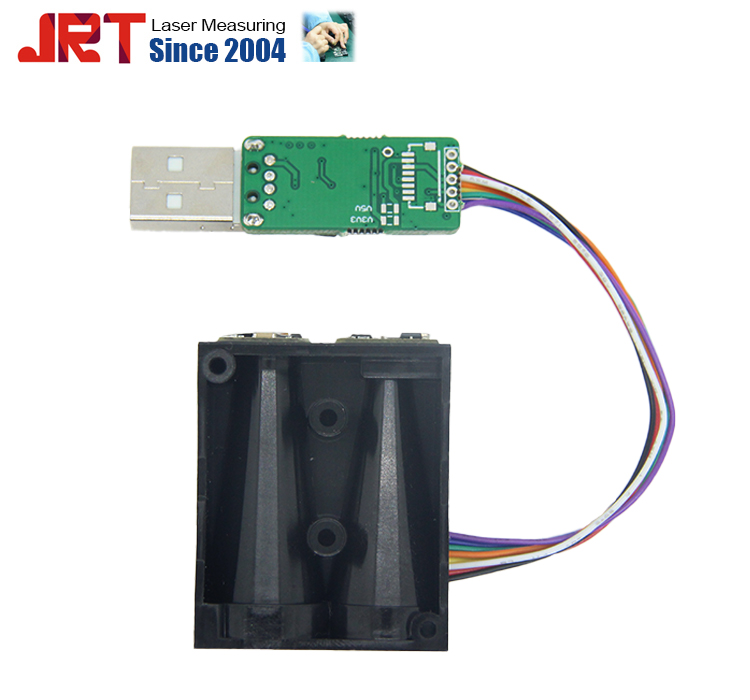

More Detailed Pictures

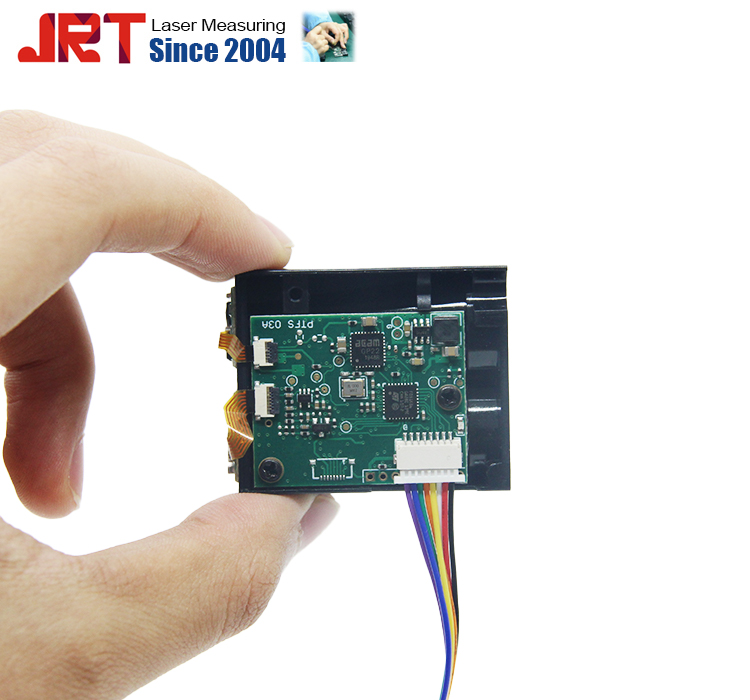

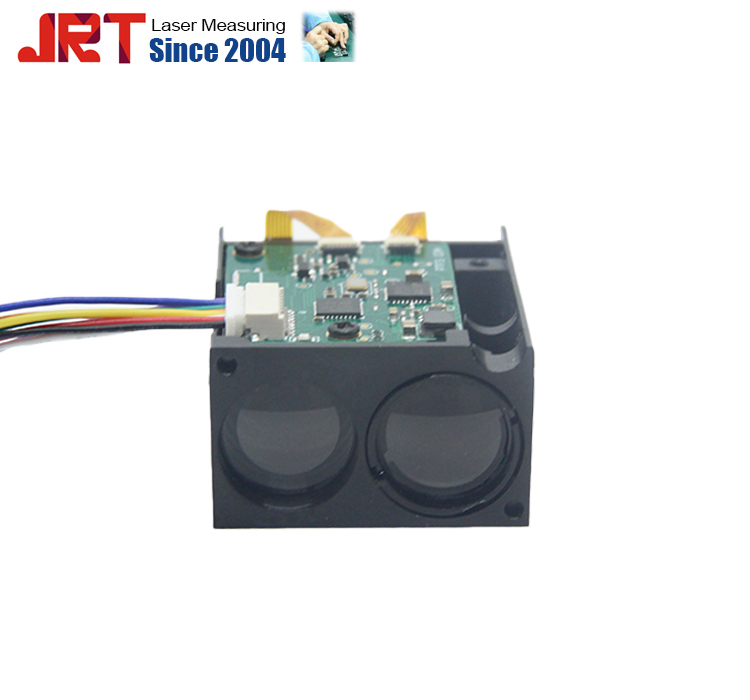

1000m Small laser range sensor
Chengdu JRT Main Ranging Modules: Industrial Laser Distance Sensors, Laser Rangefinder Sensor , Tof LiDAR Sensors.
