High density male female heavy duty connector 32pin

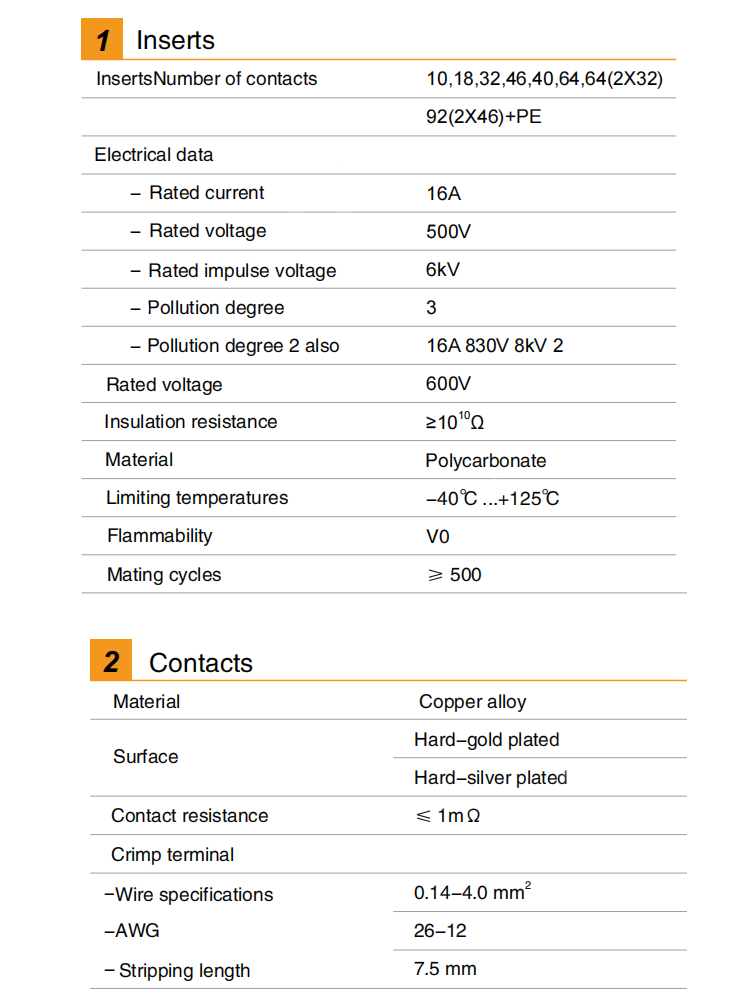

As the connection interface of power line and signal line, it is mainly used for the connection between the machine and the power distribution cabinet, which is convenient for on-site construction and after-sales maintenance. HEE-032 is a dense Heavy Duty Connector, which adopts cold-press connection method, has many pins and is small in size. Connector Pin Number 32+PE Working Current 16A Working Voltage 500V Pollution Level 3 Rated Impulse Withstand Voltage 6KV Insulation Resistance ≥ 1010Ω Material Polycarbonate Working Humidity Range -40℃ +125℃ Flame Retardant Level (UL94) V0 Pluggable Number of times ≥ 500 Copper alloy surface treatment Gold-plated/silver-plated contact resistance ≤ 1mΩ Wiring form cold-pressed connection, wire specifications 0.5, 0.75, 1.0, 1.5, 2.0, 2.5 AWG26-13 stripping length 7.5mm

Heavy Duty Connector is widely used in machinery, wind energy, rail transportation, power systems, photovoltaic industry, communications industry, engineering equipment and other I/O System fields
