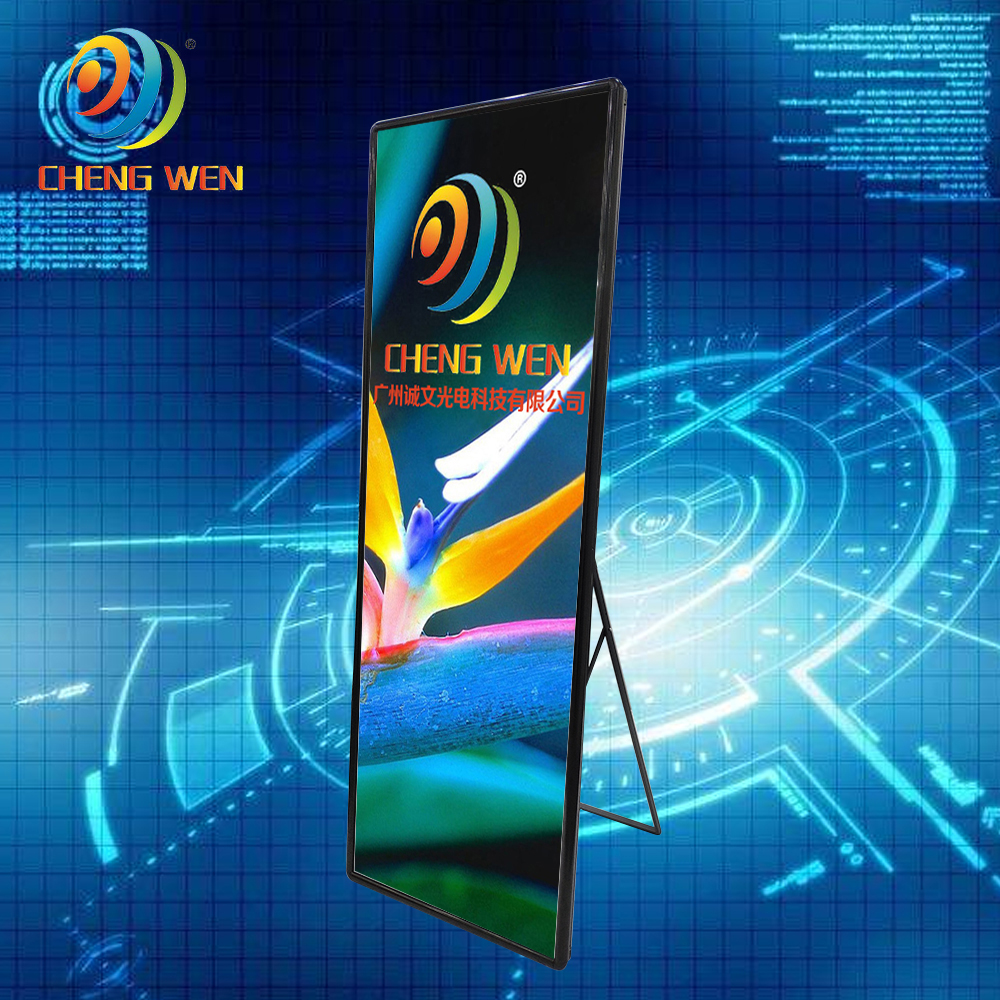

P2.5 Poster LED Screen Indoor
3 year ago
Product Introdution
Indoor Led Wall Billboards P3 Indoor Poster LED Advertising Display is a high-quality digital signage solution for shops and retail stores. It is designed to provide a clear and dynamic visual display of advertisements, promotions, and information to customers.
The P3 Indoor Poster LED Advertising Display is easy to install and operate. It comes with user-friendly software that allows users to create and manage content remotely. The software supports a variety of media formats, including images, videos, and animations.
The display is also equipped with advanced features such as automatic brightness control, which adjusts the screen brightness according to the ambient light conditions, and temperature control, which ensures the display operates within safe temperature limits.
Overall, the P3 Indoor Poster LED Advertising Display is a cost-effective and efficient way to promote products and services in retail stores. It offers a high-quality visual display that can attract and engage customers, ultimately leading to increased sales and revenue.
Application
The display features a high-resolution LED screen with a pixel pitch of 3mm, which ensures sharp and vibrant images. The screen size can be customized to fit the specific needs of the store, and the display can be mounted on the wall or placed on a stand.
Packing Solution
Packing way:
Data Sheet
|
MAIN TECHNICAL PARAMETERS FOR INDOOR LED DISPLAY(PITCH3) |
|||
|
（Technical parameters） |
UNIT |
（ parameters values ） |
|
|
（Pixel pitch） |
MM |
3 |
|
|
（Panel size） |
MM |
L192*H192*T14 |
|
|
（Physical density） |
/M2 |
111111 |
|
|
（Pixel configuration） |
R/G/B |
1,1,1 |
|
|
（Driving method） |
|
1/32 Constant current 1/32scan |
|
|
（LED Encapsulation） |
SMD |
2121 |
|
|
（Display resolution） |
DOTS |
64X64=4096 |
|
|
（Module weight） |
KG |
0.3 |
|
|
（Module port） |
|
HUB75E |
|
|
（Module working voltage） |
VDC |
5 |
|
|
（Module consumption ） |
W |
16 |
|
|
Panel Parameter |
|||
|
（Viewing angle） |
Deg. |
140 |
|
|
（Option distance） |
M |
3-45 |
|
|
（Driving device） |
|
IC:1065s |
|
|
（Every square metre module） |
PCS |
27.13 |
|
|
（Maximum power） |
W/ M2 |
560 |
|
|
（Frame Frequency） |
HZ/S |
≥60 |
|
|
（Refresh frequency） |
HZ/S |
7680HZ |
|
|
（Equilibrium brightness） |
CD/ M2 |
≥440 |
|
|
（Working environment temperature） |
0C |
-10~60 |
|
|
（Working environment humidity） |
RH |
10%～70% |
|
|
（Display working voltage） |
VAC |
AC46～54HZ，220V±15%/110V±15% |
|
|
（Colour temperature） |
|
8500K-11500K |
|
|
（Gray scale/color） |
|
≥16.7M color |
|
|
（Input signal） |
|
RF\ S-Video\ RGB etc |
|
|
（Control system） |
|
NOvaStar Linsn Coloright |
|
|
（Mean free error time） |
HOURS |
＞5000 |
|
|
（Life） |
HOURS |
100000 |
|
|
（Lamp failure frequency） |
|
＜0.0001 |
|
|
（Antijam） |
|
IEC801 |
|
|
（Safety） |
|
GB4793 |
|
|
（Resist the electricity） |
|
1500V last 1min No breakdown |
|
|
（IP rating） |
|
The back IP40，The front IP50 |
|
|
（Steel box size） |
mm |
L576Xh576/768X768/960X960 |
|
