4 Wire Resistive Touch Screen

We apecialize in analog touch screen since it established.These cheapest resistive touch screens and best resistive touch screens by customers love and satisfaction.In a standard 4-wire resistive touchscreen configuration, an upper and bottom layer are used to detect touch commands. One of these layers contains electrodes in the Y direction, whereas the other layer contains electrodes in the X direction. The two layers are designed to measure the voltage created by the opposite layer.

Product Overview

Our touchscreens are based on proven 4-wire resistive technology, the preferred solution for applications that demand reliability, input flexibility, and contamination resistance. The resistive touch screen work with standard EETI/controller/chip solutions and drivers under a wide variety of operating systems, and are available in a set of standard products as well as customized designs.

Product Quality

Our resistive touchscreens is available with proprietary technology to deliver a touch response that is drift-free and accurate in high-use applications. It's designed to be integrated into almost any bezeled application for reliability and quality.we delivers both X and Y measurements made on a stable rear glass layer where many other 4 wire touch screen designs use a flexing plastic coversheet to measure only one axis. As a result, Our resistive touch screen provide a longer product life, designed to withstand more than 5 million touches.

Our touch screen panel can be sealed against contamination to support NEMA 4/4x/12 and IP65 standards. Every screen meets pencil hardness 3H per ASTM D3363. Agency approvals include CE, FCC and RoHS class A.

Product Features

♦ 4-wire resistive touch, technologically mature, and can be used with gloves in harsh environments.
♦ Products precision, and robustness ,extremely durable.
♦ Can be sealed against contamination,support NEMA 4/4x/12 and IP65 standards.
♦ Can meet the pencil hardness 3H per ASTM D3363.
♦ Class 1,000 clean,fast delivery,high quality. (Air Bonding / OCR Bonding）

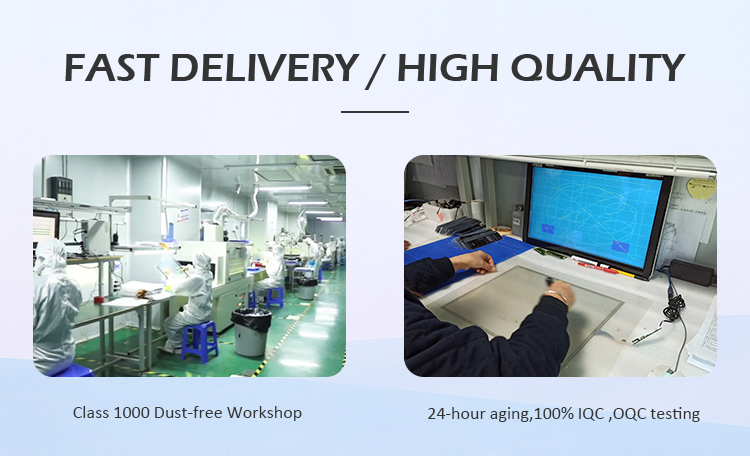

Production Show

Product Parameters

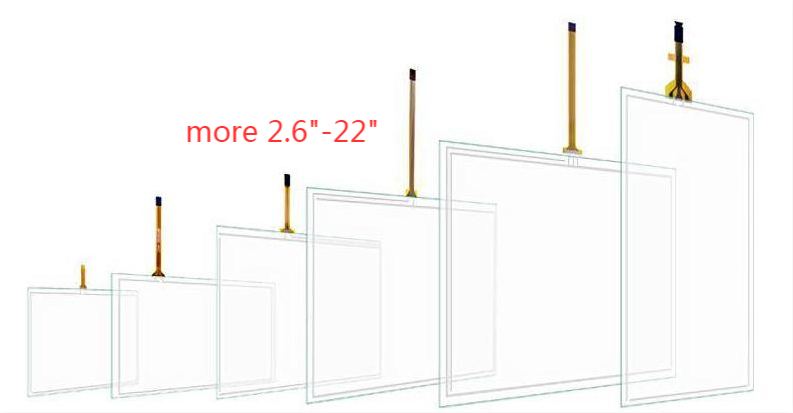

Product Show

Engineering Drawing:GT-4W-9.0

Product Customizable

We provides a wide range of customization options to meet your requirements,including touch screen size, FPC outlet location, length, ITO glass thickness, customer Logo, and clear hard coating & anti-newton rings.

Product Applications

Point-of-sale (POS) terminals,Voting, ticket, and lottery terminals，Industrial automation,Industrial panel PC,Medical equipment,Office automation,Retail automation,Pharmacy automation.

Other Products

We focus on touch application since established.Our products widely acclaimed from the indoor or outdoor customer because of our top quality products.In addition 4 wire resistive touch screen, we also supply 5 wire resistive touch screen,capacitive touch screen ,infrared touch screen,interactive touch foil,infrared  touch frame，touch monitor,touch all-in-one PC and other touch products.
