Square cast aluminum plate raclette grill

The Korean Electric BBQ Grill is an indoor electric grill designed for modern homes and restaurants. Its core goal is to recreate the traditional Korean barbecue cooking experience while enhancing convenience and safety through electrification. Users can adjust the heating level through an intuitive temperature control system, achieving smokeless operation without an open flame, significantly reducing environmental fume pollution. It is suitable for spaces with limited ventilation, such as apartments and small restaurants.

Each 1x20' GP contains 2664pcs.
Each 1x40' GP contains 5544pcs.

Features

Material Composition

Main contact surfaces are cast aluminum alloy, coated with a 25μm-thick FEP fluorine coating that meets FDA food safety standards. This coating is rated for over 13,000 abrasion cycles, has a base material hardness of HB80-90, and a corrosion resistance rating of 10. The handle and housing are constructed of high-temperature-resistant engineering plastic, capable of withstanding temperatures of up to 180°C in certain areas.

Heating Method

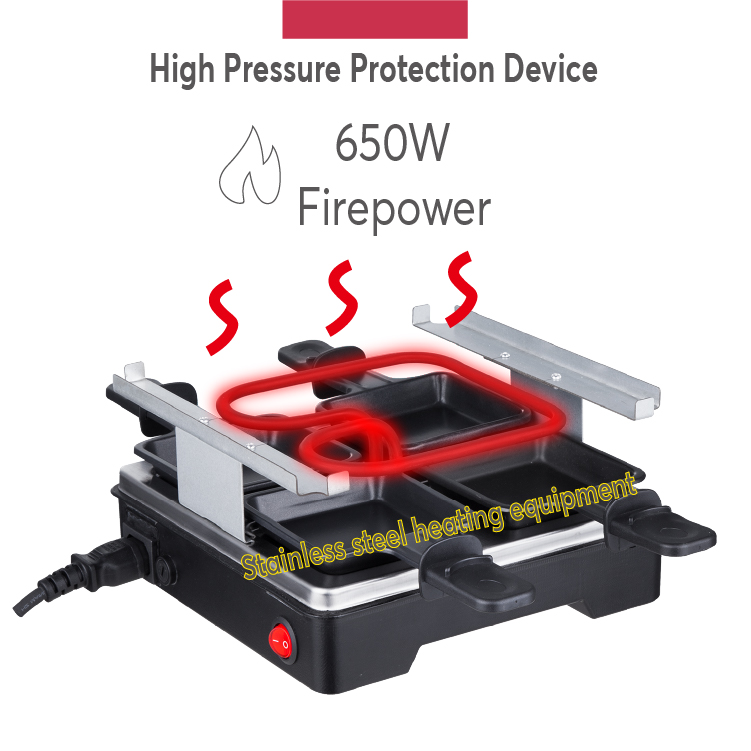

This Korean Electric BBQ Grill utilizes a stainless steel heating element with a 95% heat transfer efficiency, reaching a rated temperature of 200°C within 120 seconds of powering on. The heating element is embedded in the aluminum alloy base, providing uniformly distributed heat for seamless heating. Temperature differentials are controlled within ±5°C, ensuring consistent heating of food.

Temperature Control

The built-in microcomputer temperature control system supports five precise temperature settings from 60°C to 230°C, with an accuracy of ±2°C. The system monitors the plate temperature in real time using an NTC thermistor and automatically adjusts power output to prevent temperature instability caused by voltage fluctuations.

Smokeless Design

By combining a FEP non-stick coating and a closed heating structure, this appliance produces 85% less oil smoke during cooking than traditional grill pans. The coating can withstand temperatures up to 250°C, preventing oil from carbonizing and suppressing smoke generation at the source.

Versatility

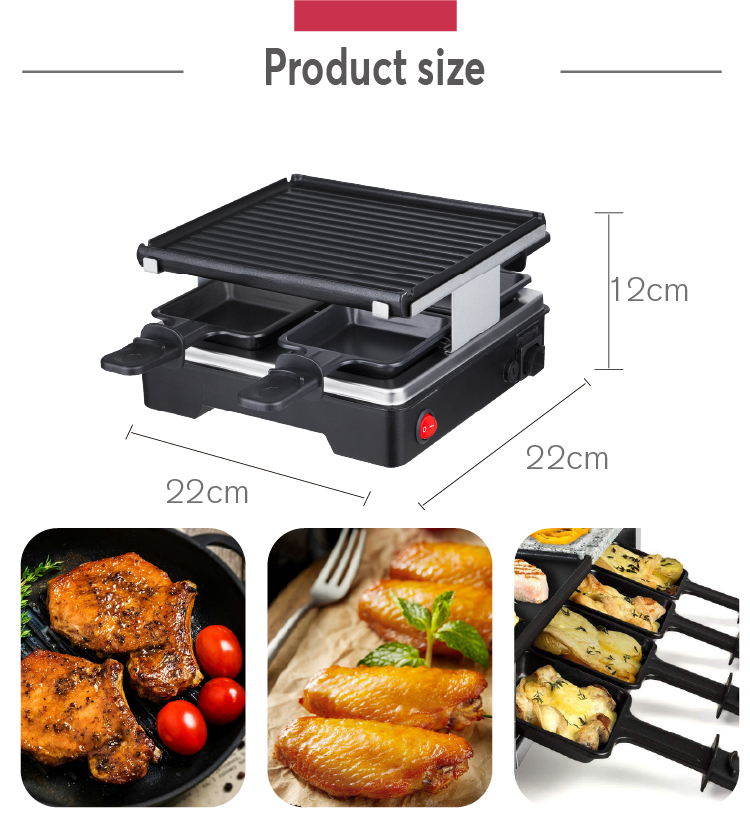

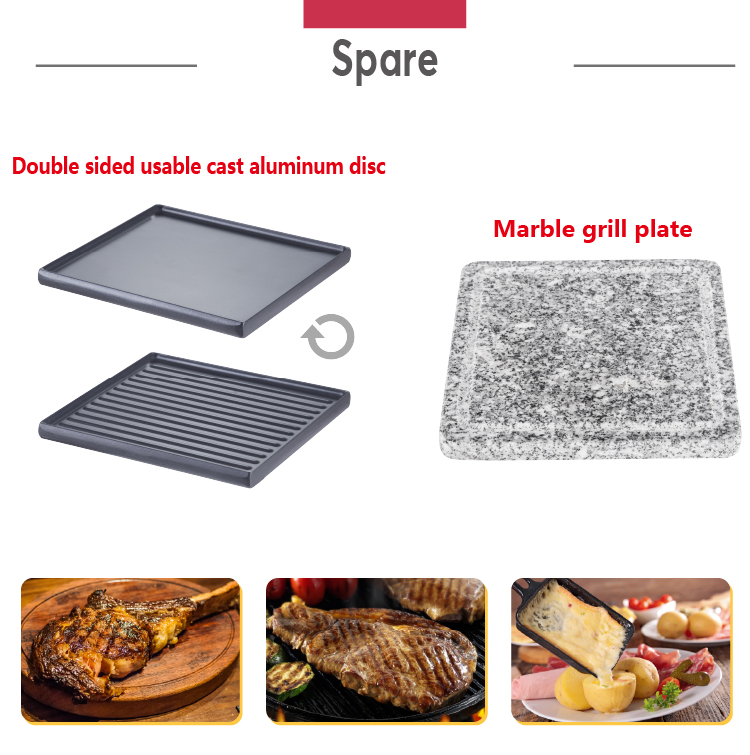

The appliance features a reversible cast aluminum grill pan and a marbled grill pan insert, supporting four cooking modes: frying, grilling, braising, and searing. The grill pan measures 22cm x 22cm, providing an effective cooking area of ​​484cm², capable of simultaneously cooking six steaks or 15 medium-sized shrimp.

Power and Energy Efficiency

The rated power is 650W, operating current is 2.95A at 220V, and energy conversion efficiency is 88%. The appliance supports three power settings: high heat for full power, slow heat for a sustained 350W output, and keep warm for 150W. Tested power consumption for one hour of continuous operation is 0.65kWh, meeting EU ERP Level 3 energy efficiency standards.

Application

Family Dining

This Korean Electric BBQ Grill is suitable for family gatherings of 4-6. Its 484cm² grilling area accommodates a wide variety of ingredients. Tests show that at rated power, it can grill 500g of beef slices in 8 minutes, with an average wait time of less than 2 minutes per person. Its smokeless design allows for operation in living rooms or open kitchens, eliminating the need for an exhaust system.

Small Commercial Catering

Because it meets catering hygiene standards, it can be used as a cooking aid in Korean barbecue restaurants, hot pot restaurants, and other establishments. A single unit can operate continuously for 8 hours per day, processing up to 15kg of food, while consuming only 5.2kWh of electricity per day. The stainless steel heating module supports frequent cleaning and complies with HACCP food safety requirements.

Outdoor Leisure

Although designed for indoor use, its low power consumption allows it to be used outdoors via a car inverter or portable power source. Powered by a 12V/200Ah battery, it can operate continuously for 3 hours, making it suitable for camping, picnics, and other activities. The grill pan weighs 1.8kg and is more portable than traditional gas grills.

Healthy Diet Customization

Due to its precise temperature control, this device can be used for low-fat diets. Experimental data shows that the fat release rate of meat cooked at 180°C is 20% higher than that of a frying pan. Furthermore, the FEP coating's insulating effect prevents direct contact between food and the metal substrate, eliminating the risk of heavy metal leaching.

Maintenance

Daily Cleaning Procedure

After each use, wait until the baking tray temperature drops below 40°C before cleaning. It is recommended to use a neutral detergent and a soft sponge; avoid using hard cleaning tools such as steel wool. Special care should be taken to prevent scratches on the FEP coating. Tests have shown that using a detergent with a pH of 6.5-7.5 can extend the coating life by over 30%. After cleaning, thoroughly dry the surface with a dry cloth to prevent oxidation of the aluminum alloy.

Long-Term Storage Specifications

If the baking tray is not used for more than 7 days, apply food-grade mineral oil to the surface for maintenance. The storage environment should maintain humidity below 60%, and the recommended temperature should be between -10°C and 40°C. Avoid stacking the baking trays to prevent deformation due to pressure.

Electrical Component Maintenance

Monthly, check the power cord for integrity and insulation resistance greater than 10MΩ. Avoid liquid ingress to the temperature control knob. Wipe the contacts with a cotton swab dipped in anhydrous alcohol. After extended use, the connection between the heating element and the terminal block may oxidize. Regularly tighten the screws to ensure good contact. Professional testing is recommended after every 500 hours of use.

Coating Maintenance Plan

Minor scratches can be repaired with a special repair paste. After repair, dry-bake at 180°C for 10 minutes to form a protective layer. Do not continue to use the product where the coating is damaged, and avoid direct food contact with the metal substrate. Under normal use, it is recommended to conduct a coating integrity test every two years to ensure food safety.

If you need to purchase our BBQ griller, please contact us.
