38CNC 4 axis 2 layer die

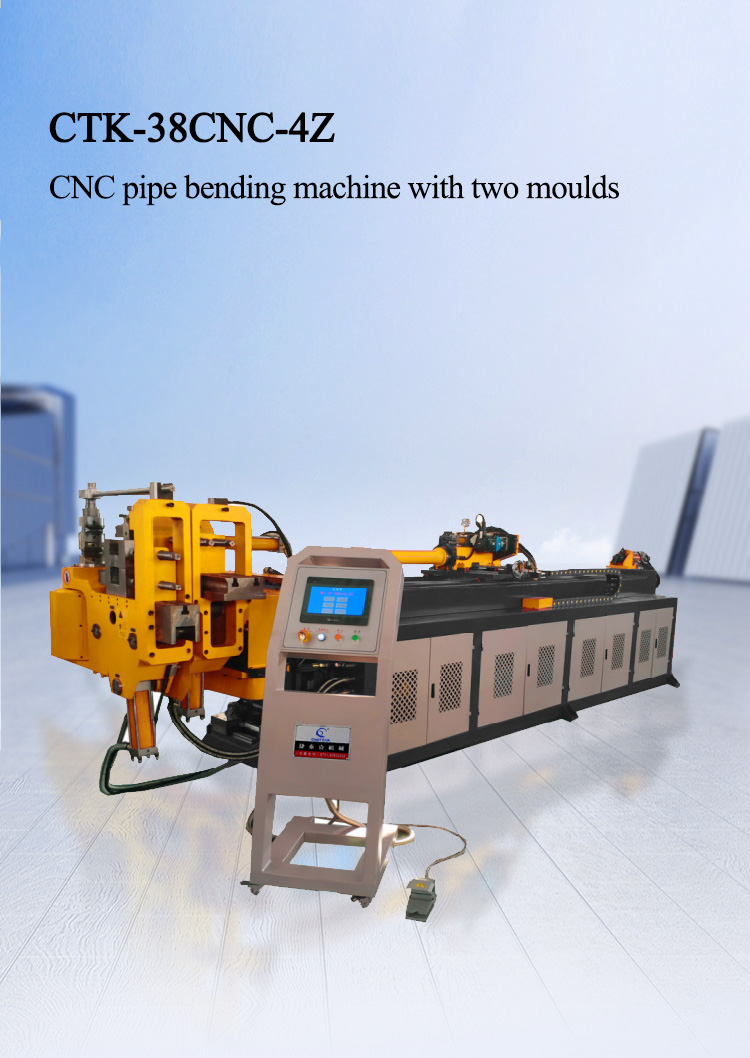

CNC pipe bending machine CTK-38CNC-4Z

• CTK-38CNC-4Z automatic CNC pipe bending machine, the actions of bending, feeding and turning are all controlled by servo.
• It has the advantages of high bending power and high precision of three-axis control. All programming and input are directly carried out on the interactive touch screen. All information descriptions can be automatically selected. The operation of the tube bender is extremely convenient, fast and accurate.

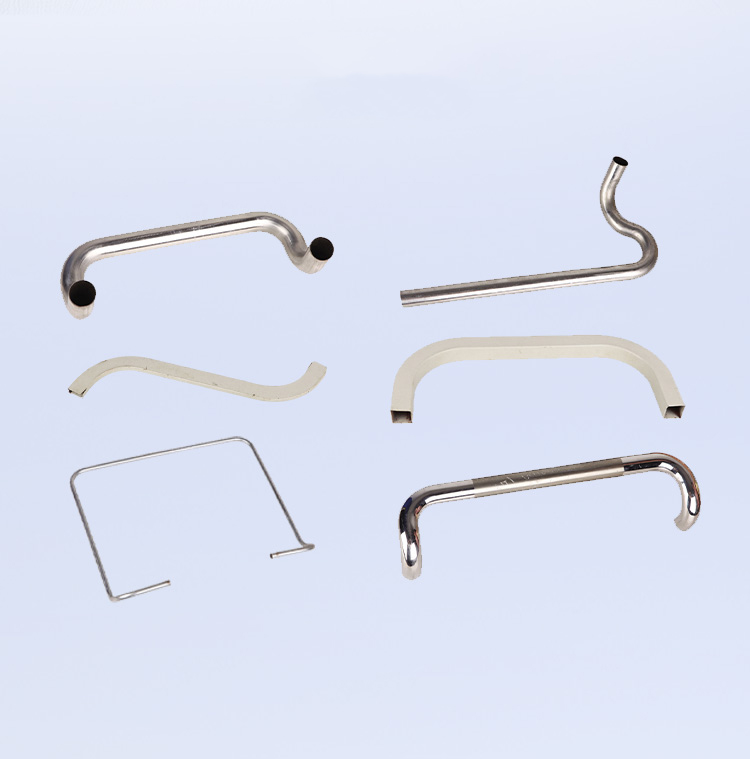

• High-performance medium-sized pipe bending machine, easy-to-operate controller, makes your operation and programming easier, and has a wide range of uses. The metal pipe bending machine is used in mass production or standardized production, such as in automobiles, motorcycles and other parts, such as exhaust pipes, Production of seat cushions, high-pressure vessel pipes, sports equipment and all iron pipe furniture, as well as for boilers, aerospace, shipbuilding and general engineering piping.
• Metal pipe bending machine:

• Maximum bending capacity (mm) Φ38X2.0

  Maximum bend radius (mm) 200

  Maximum bend angle (°) 185

  Max effective mandrel length(mm) 3150

  Feeding length（mm） 2000

  Feeding speed（m/sec） 1.17

  Bending accuracy（°） ±0.1°

  Bending speed（°/sec） Max.171°/sec

  Corner accuracy（°） ±0.1°

  Corner speed（°/sec） Max.340°/sec

  Power supply 380V,50Hz

  Control valve voltage（V） 24

• CNC bending machine

•
