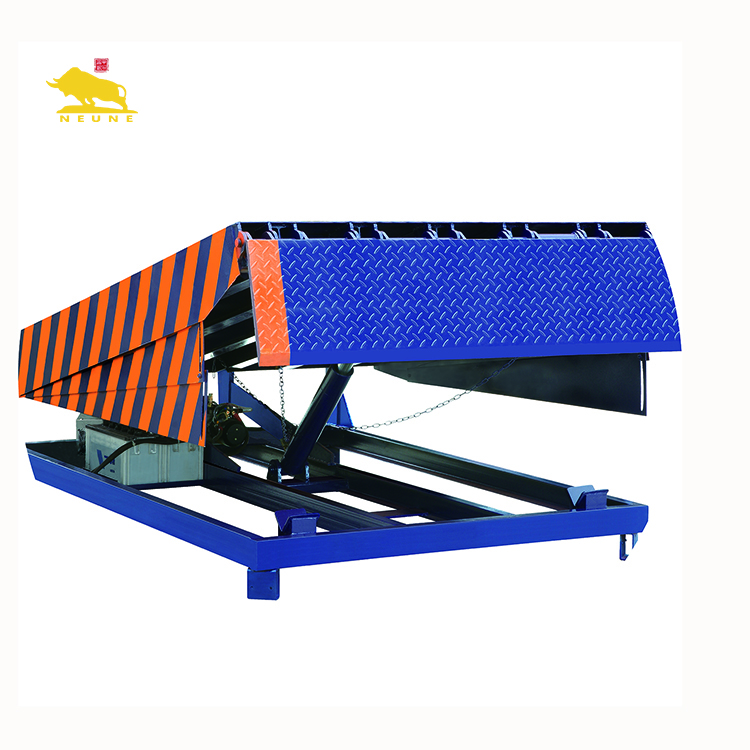

Fixed Hydraulic Dock Leveler DCQ
Product description:
The fixed hydraulic boarding bridge is a special equipment (height adjustment plate) for fast cargo handling, which is widely used in docks, cargo platforms, warehouses and other places. The height adjustment plate can flexibly connect the cargo platform with the truck, so that the loading and unloading vehicles can get in and out of the truck without any obstruction when loading and unloading goods. Imported hydraulic pump station is adopted for the equipment, and anti-roll apron is set on both sides, which makes the work safer and improves the work efficiency. It is applicable to places where trucks are frequently loaded and unloaded and different models are used.
Specifications
|
Model |
Capacity(kg) |
Platform size(mm) |
Lip board size (mm) |
Distance(mm) |
Motor power(kw) |
Pit dimensions L*W*H(mm) |
|
DCQ8-0.7 |
8000 |
2440x1830 |
400 |
+400-300 |
0.75 |
2600X1860X510 |
|
DCQ10-0.7 |
10000 |
2440x1830 |
400 |
+400-300 |
0.75 |
2600X1860X510 |
|
DCQ12-0.7 |
12000 |
2440x1830 |
400 |
+400-300 |
1.5 |
2600X1860X510 |
