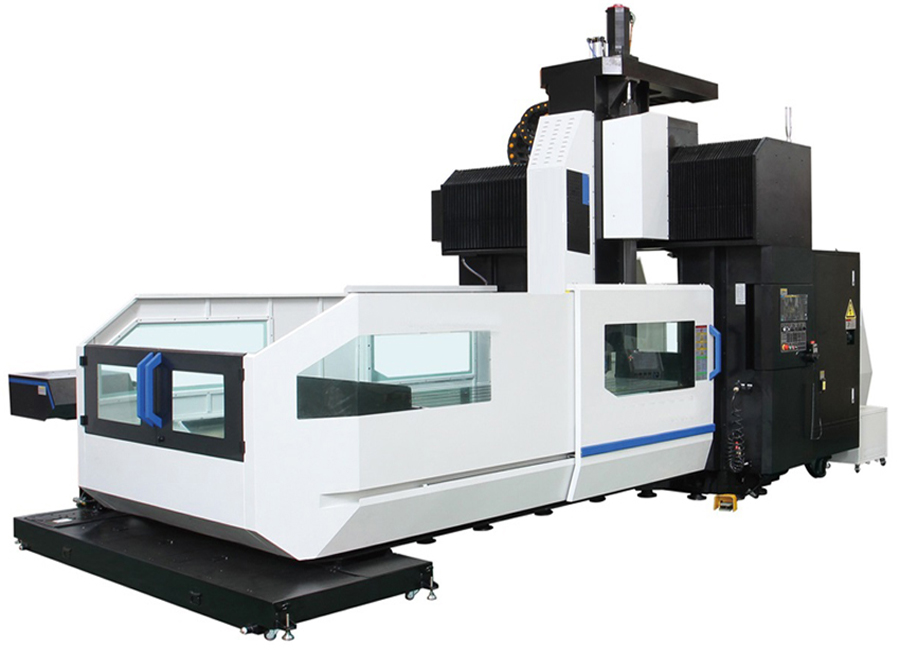

CNC Gantry Machining Center

CNC Gantry Machine Tools

Product Characteristic

1.Structure: Columns are fixed on both sides of bed. Beam is fixed on the both columns. Ram type spindle (milling head and boring head ) is installed on beam. They are formed a gantry frame type structure with high thermal symmetry.
2.Utilizes Taiwan famous brand high speed spindle unit(6000rpm),max speed 3000rpm,suitable for heavy cutting with low speed.
3.X and Y axes utilize heavy-duty linear rolling guide rail with features of large loading capacity and high precision of CNC Machine Tools.
4.Balanced cylinders on both sides of the ram, Z- axis fast response speed.
5.It can match with CNC Vertical Machining Center or Vertcial Milling Machine to realize more NC machining functions for special parts.
6.It's one of CNC Machine Tools that mainly to machine heavy loading workpieces.

Technical Parameters

Standard configuration:

※Taiwan spindle, BT50-190.

※Taiwan X linear guide way, Y axis linear and box combination guide way, Z box guide way.

※Taiwan HIWIN ball screws for X,Y, Z.

※ Taiwan ATC 24 tools.

※ NSK bearings.

※ Auto lubrication system.

※ Taiwan water coolant pump.

※ Nitrogen balance system.

※ Water gun and air gun.

※ Both sides Screw type chip conveyor.

Optional accessory:

Please kindly note that optional accessory will be charged separately.

*Germany ZF gear box and oil cooling.

*Double chain type removal system.

*Planetary reducer for three axis.

*32pcs chain type tool magazine.

*Taiwan 90 degree auto changing milling head(including the head magazine).
