Middle Speed Wire Cut EDM Machine

3 year ago

19 0 

3 year

Product details

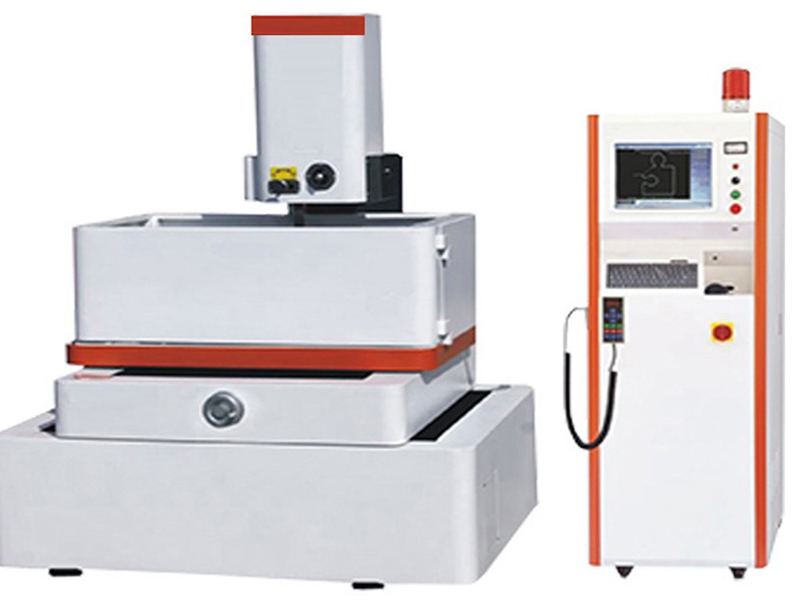

Multi Pass Wire-Cut EDM Machine

Product Characteristic

①The CNC Wire Cut EDM Machine use a new type of high-power field effect tube as the power tube, strong and powerful, high cutting efficiency, high cutting smoothness, and has a good comprehensive processing performance.
②The Multi Pass Wire Cut EDM Machine Has a unique function board plug-in structure.
③The Multi Cut Wire Cut EDM Machine can cut big thickness work pieces, and the cutting materials are die steel and cemented carbide.
④This series of Wire-Cut EDM Machine is widely used in aerospace, automotive, molds, and other industries.

Technical Parameters

Multi Pass Wire-Cut EDM Machine SF320

Technical Parameters	Unit	ZBJ320/SF320
Travel of X and Y Axes	mm	400x320
Maximum cutting thickness	mm	300
Wire diameter	mm	Standard 0.18 mm; Optional: 0.12-0.2 mm.
Cutting Taper	°/mm	6°/ 80 mm
Work Table Size (LxWxH)	mm	620x480x300
Maximum Work piece weight	kg	300
Surface Roughness /Ra	u.m	Ra≤1.2
Numerical Control System	#	X8, HF SYSTEM or HL SYSTEM
Display	#	Latest
Serial Interfaces (V.24)	#	RS 232C, Ethernet port, USB
Remote control	#	Including
3-D Graphical Preview	#	Including
Total machine power	KV	1.8
Precision	mm	0.015
Maximum cutting speed	mm²/min	≥120
Wire speed	m/s	11.5
Minimum feed increment	mm	0.001
Pulse width adjustable range	us	15-150
Maximum power consumption	KVA	≤2
Machine size (LxWxH)	mm	1700x1300x2160
Machine weight	kg	1500
Machine control cabinet size (LxWxH)	mm	1200x800x800
Machine control cabinet weight	kg	150

Standard configuration:

※AC Power Supply:220 or 380V, 50 Hz, 3 phase

※Molybdenum Wire:200 M

※Remote Control:1 Piece

※Wire Tensioner:1 Piece

※Coolant Filter:1 Piece

※Coolant:1 Piece

※Work Lamp:Including

※Work Piece Fixture:1 Set
