40m USART Laser Distance Measure Sensors USB 60m
3 year ago

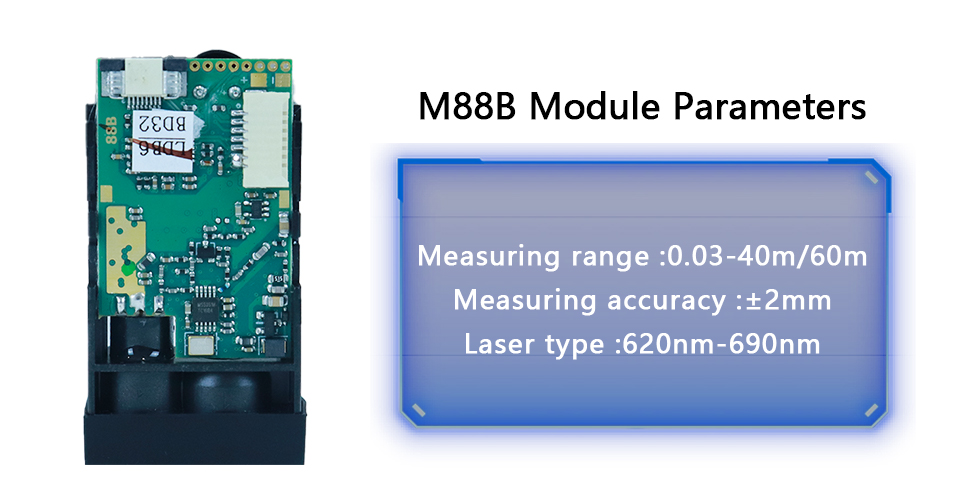

Smallest Digitial Tool Laser Measure Sensor Module 40M
World smallest digital laser measure sensor module,Which can widely used in Phone ,robot ,warehouse and measurement area with accuracy +-1mm. It is the smallest digitial tool with size of 45x25x12mm,weight about 10g, that can measure range 0.03~40M without reflection. The Laser mesure sensor module 40m excellecnt performance of percision measuring satified many users from all over the world.
Why Us
Chengdu JRT Meter is the factory of laser measure modules sensors since 2004. Support OEM your own laser measuring tools.
Welcome to tell us your applicaiton, we are glad to help.
Industial Applicaiton:
1. Distance optional: 40m, 60m, 100m, 120m, 150m
2. Interface optional: serial port, USB, RS232, RS485, Bluetooth etc
3. Operating temperature: -10 ºC~50 ºC can be customized.
Specification
Accuracy
+-1mm(0.04inch)
Measuring Range
0.03-40M
Measuring Unit
meter/inch/feet
Measuring Time
0.1-3 seconds
Laser class
Class two
Laser Tape
620-690nm,<1mW
Size
45x25x12mm(+-1mm)
weight
About 10g
Voltage
DC2.0-3.3V
Electrical level
TTL/CMOS
Frequency
8Hz
operating Temperature
0-40
Chengdu JRT Main Ranging Modules: Industrial Laser Distance Sensors, Laser Rangefinder Sensor, Tof LiDAR Sensors.
