Auto Brake Pads

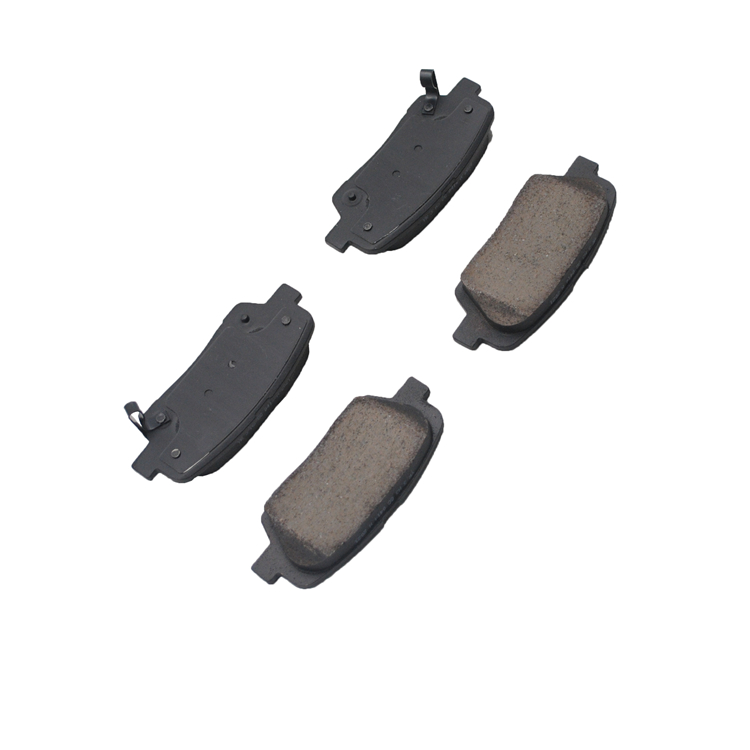

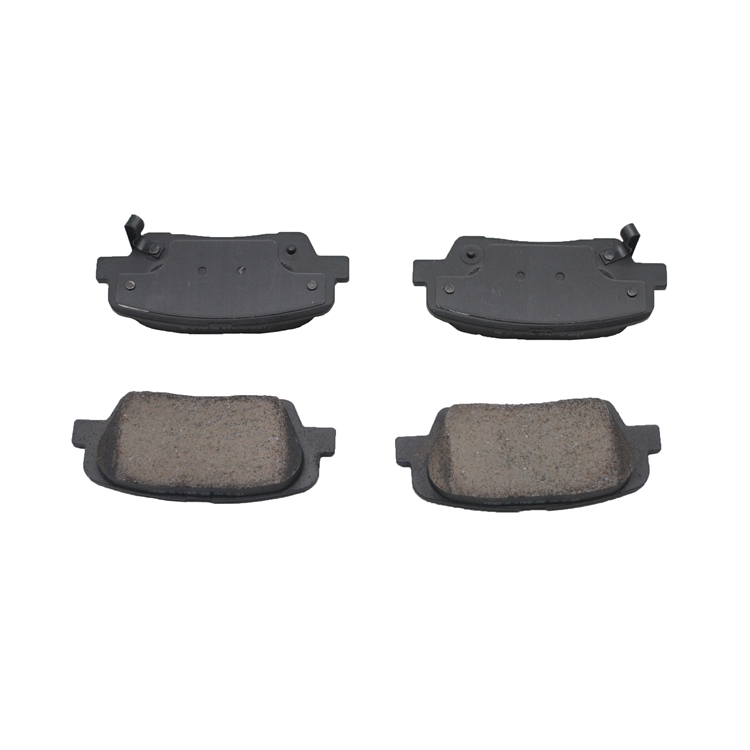

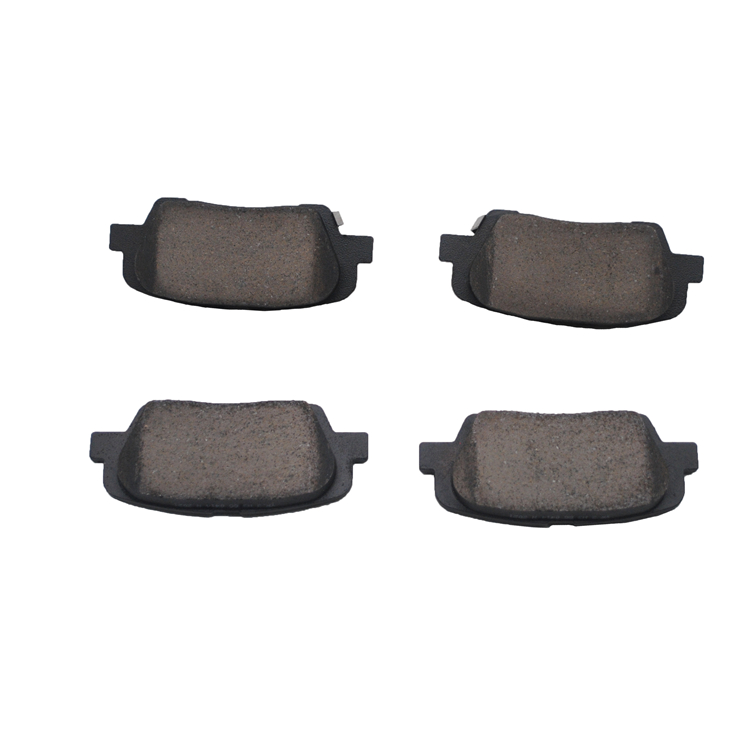

D1439-8575 Brake Pads For Hyundai Kia

PART DESCRIPTION AUTO BRAKE PADS Plate/ AUTO CAR BRAKE PADS/ AUTOMOTIVE BRAKE PADS
TYPE Steel
Disc Steel Comments Similar to D1284 but thinner All: Similar to D1284 but thinner. Inner: composite shim glued on - metal shim clipped on. Wear sensor staked on LH / RH. Composite shim glued on.
Axle Rear
Plate 1 Designation Inner
Plate 1 Thickness (mm) 5.1
Plate 1 Thickness (in) 0.201
Plate 1 Length (mm) 116.8
Plate 1 Length (in) 4.60
Plate 1 Length at Notch (mm) 104.1
Plate 1 Length at Notch (in) 4.10
Plate 1 Height at Middle (mm) 45.2
Plate 1 Height at Middle (in) 1.78
Plate 1 Hgt of Notch/Ear(mm) 12.2
Plate 1 Hgt of Notch/Ear(in) 0.49
Plate 1 Total Height (mm) 48.3
Plate 1 Total Height (in) 1.91
Plate 2 Designation Outer
Plate 2 Thickness (mm) 5.1
Plate 2 Thickness (in) 0.201
Plate 2 Length (mm) 116.8
Plate 2 Length (in) 4.60
Plate 2 Length at Notch (mm) 104.1
Plate 2 Length at Notch (in) 4.10
Plate 2 Height at Middle (mm) 45.2
Plate 2 Height at Middle (in) 1.78
Plate 2 Hgt of Notch/Ear(mm) 12.2
Plate 2 Hgt of Notch/Ear(in) 0.49
Plate 2 Total Height (mm) 48.3
Plate 2 Total Height (in) 1.91
