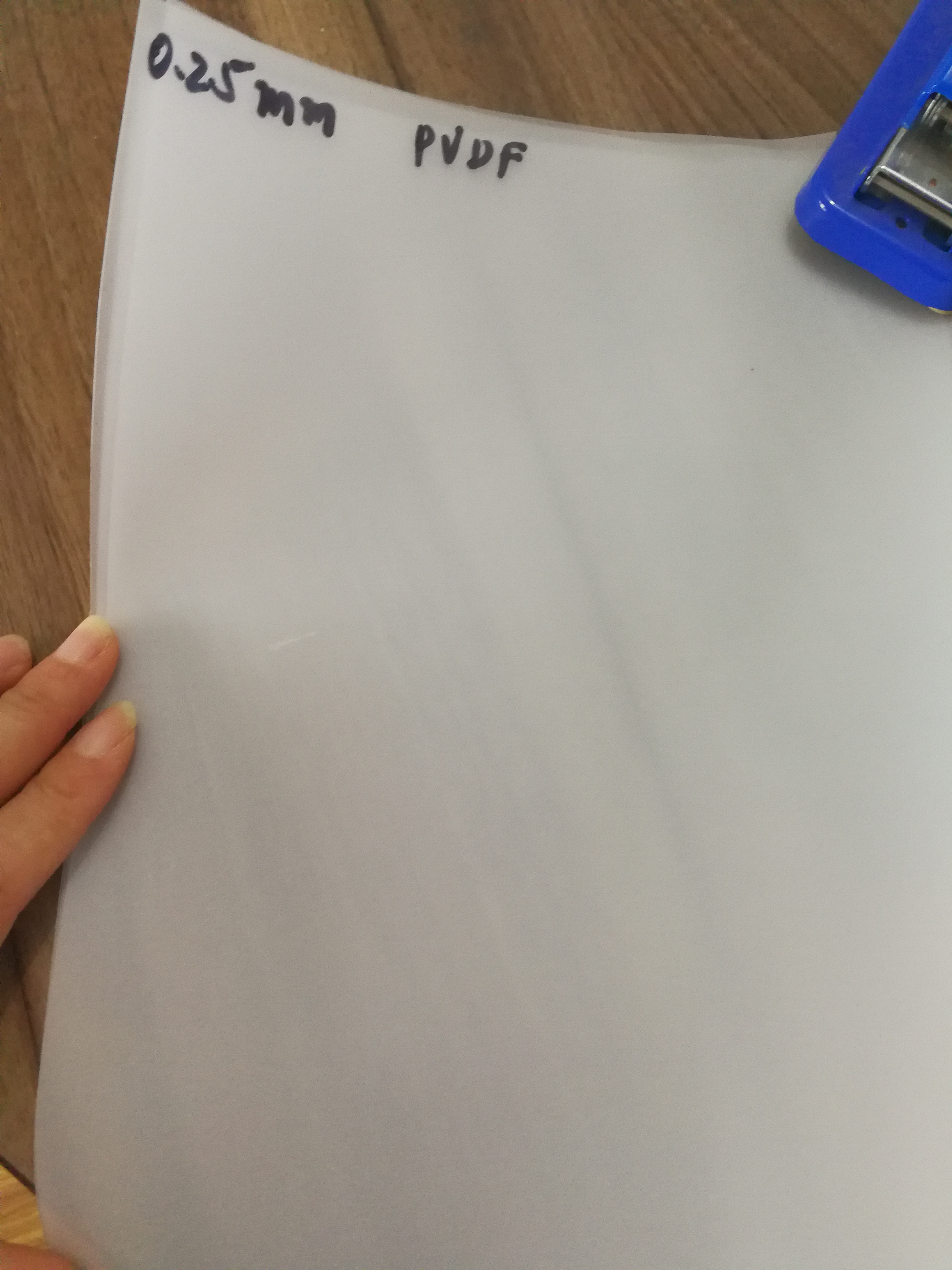

PVDF thickened large plate
3 year ago
PTFE custom white PP board complete specifications
Prouduct Parameters
The Main Properties Of PVDF
PVDF has the best characteristics in fluorine plastic, which are the strongest toughness, low coefficient of friction, strong corrosion resistance, aging and weather resistance, good radiation resistance. PVDF (polyvinylidene fluoride) has the granular Alias: polyvinylidene fluoride; Fluorine resin-2; F2;F26; PVDF; fluororesin-2. Guangzhou Engineering Plastics Industries (Group) Company has studied and applied this material in many industries for many years. And we know that the PVDF material has the following main characteristics.
Special properties of PVDF
1. Its Anti degeneration is also one of the optimal fluoride resins. 2. It has excellent insulation properties, dielectric constant (60~ 106Hz) reaches 6.0~8.0. 3. Its radiation-resistant properties are more prominent, radiated by 3x 108 lats r-ray irradiation. 4. It has a high tensile strength, good impact strength and toughness, high hardness and abrasion resistance. 5. Moreover, its water absorption is only 0.03% in 80C; Its chlorine penetrability is the smallest among fluorine resins. 6. The PVDF has the excellent physical properties. The relative density of polyvinylidene fluoride is 1.75~1.78. Long-term use temperature is -40~+125C. 7. The mechanical strength of PVDF is the most superior among Fluorine resin, and under certain temperature and pressure it can still maintain a good intensity. 8. PVDF has the characteristics of prominent anti-aging of UV and weather aging resistance, its products even stay outdoor 10 or 20 years, they will not be friable or split. 9. PVDF has a good chemical stability. It will not be corrupted by acid, alkali, strong oxidizing agent and halogen at room temperature; it will not be affect by ordinary organic solvents; it can only be swelling or partly dissolved by a handful of chemicals such as fuming sulfuric acid, alkali, ketones and ether; it can be dissolved into a colloidal solution by strong polar organic solvents such as dimethyI acetamide and Dimethyl Sulfoxide (DMSO).
Regular size
Product color:white and so on.
Sheet Size: 1000mm X 500mm X (6-100)mm ; 2000mm X 1000mm X (6- 100)mm
Rod Size:(8-100)mm X 1000mm

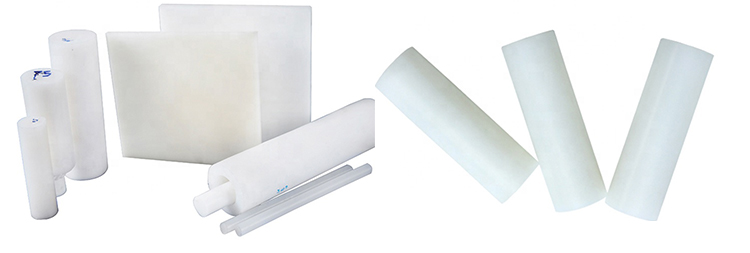

Product Display
Key Features:
- Mechanical strength and toughness - High abrasion resistance - High thermal stability - High dielectric strength
- High purity - Readily melt processable - Work temperature range -30-150 ° C - Resistance to most chemicals and solvents - Resistance to ultraviolet and nuclear radiation - Resistance to weathering - Resistance to fungi - Weldable
PVDF SHEET CORROSION RESISTANCE
|
media |
Content |
Max.temperature |
media |
Content |
Max.temperature |
|
sulfuric acid |
<10 |
120 |
hydrocyanic acid |
- |
120 |
|
- |
<60 |
120 |
sulfinic acid |
- |
100 |
|
- |
80-93 |
80 |
nitrous acid |
- |
70 |
|
- |
98 |
65 |
carbonic acid |
- |
120 |
|
fuming sulphuric acid |
- |
x |
chromic acid |
- |
80 |
|
nitric acid |
<10 |
120 |
- |
- |
50 |
|
- |
<50 |
50 |
hypochlorous acid |
- |
60 |
|
- |
70-90 |
25 |
perchloric acid |
- |
50 |
|
nitrosonitric acid |
- |
x |
bromic acid |
- |
50 |
|
hydrochloric acid |
- |
120 |
chlorosulfonic acid |
- |
x |
|
phosphoric acid |
<85 |
120 |
fluosilicic acid |
- |
120 |
|
- |
>85 |
100 |
boric acid |
- |
120 |
|
hydrofluoric acid |
40 |
120 |
fluoboric acid |
- |
120 |
|
- |
41-100 |
80 |
chloroazotic acid |
- |
20 |
|
hydrobromic acid |
- |
120 |
mixed acid |
- |
50 |
|
hydroiodic acid |
≥12% |
120 |
- |
- |
- |
|
formic acid |
- |
110 |
nicotinic acid |
- |
120 |
|
acetic acid (acetic acid) |
<50 |
90 |
bitter acid |
- |
50 |
|
- |
80 |
65 |
Sulphonethane |
- |
100 |
|
ice |
- |
50 |
benzenesulfonic acid |
- |
40 |
PVDF fluoropolymers are rigid and resistant to creep under mechanical stress and load. Because PVDF is stable to sunlight, and other sources of ultraviolet radiation, it is widely used as base resins for long-lasting exterior coatings. An additional advantage over other fluoroplastics is that PVDF can be welded into tanks for acid and corrosive chemical processing in elevated temperature environments.

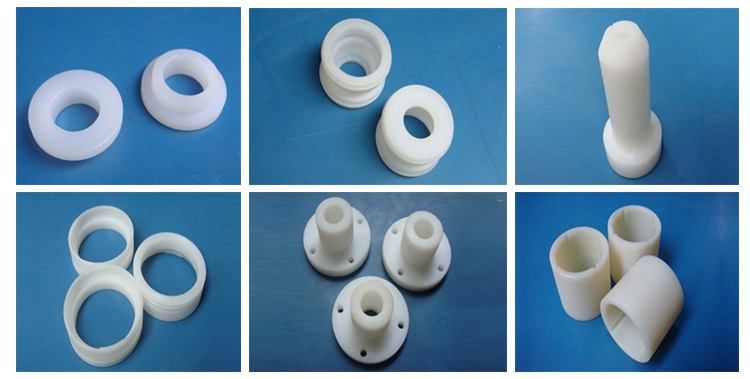

PVDF Products Finished Display
We can provide customized PVDF accessories and profiles to meet customer needs.
We are a company that focuses on the research, manufacture, and sale of engineering and high-performance plastics. At the same time, we offer machined plastic components. If you have any problems or want to get the quoted price of any plastics or machined components, please feel free to contact us. Our engineers will reply to you as soon as possible.
large quantity Wholesale PVDF Discount available
We can also customize PVDF pipes, PVDF rods, PVDF plates, PVDF processed parts, PVDF special-shaped parts, PVDF injection molded parts
If you need other materials, please contact customer service for more information
Injection Process
Our Factory
(Our factory has 100 sets of precision processing equipment, welcome to visit our factory!)
Reliable mold expert 15+ years' experience, Cooperated with many world famous brands for many years, Specialize in large and complex injection mold making, One-stop service from design to production.
Companies strictly enforce the ISO9001(2008)international quality certification system, the product quality conforms to the eu RoHS standard.
Our company is developing in the mode of quality for survival, brand for development and customer's demand, welcome new and old customers to visit our factory for guidance.
