MAR-LS-300 Quick Release Straight Handle Battery Hydraulic Crimper

As one of large Chinese cable preparation tools and equipment manufacturing and trading company, MARSHINE owns ample experience for powerline tools. For 20 years, we have been providing worldwide electricians and utility linemen with efficient yet reliable cable prep tools at the competitive price. This MARSHINE MAR-LS-300 Quick Release Straight Handle Battery Hydraulic Crimper is one of our efficient yet compact battery hydraulic crimping tools for 16 to 300mm2 cable lugs. With 6 tons output, can handle most of on-site crimping works with ease.

With a wide 16 to 300 mm2 crimping range, the MARSHINE MAR-LS-300 Straight Handle Crimper can handle various copper and aluminum cable connection requirements. Its 17 mm stroke and 3 to 6 second crimping cycle support fast repetitive operation, while a 4.0 Ah battery provides up to approximately 170 crimping cycles on 150 mm2 copper cable per charge. The quick-release straight-handle design makes die replacement and tool handling convenient, while the supplied enhanced plastic box keeps the crimper, battery, charger, and dies organized and protected during transportation.

Product Feature

Powerful 60 T Crimping Force

The MAR-LS-300 generates a maximum 60 KN crimping force, providing strong and consistent compression for cable lugs, terminals, and electrical connectors.

Wide Crimping Range

The tool accommodates conductor sizes from 16 mm²to 300 mm², making it suitable for a wide range of electrical cable termination applications.

Cordless 18 V Operation

Powered by an 18 V rechargeable battery, the MARSHINE MAR-LS-300 Quick Release Hydraulic Crimper eliminates the need for a power cable during operation. This allows electricians to work efficiently in remote locations, cable trenches, substations, and other areas where mains electricity may not be readily available.

Fast Crimping Cycle

With a crimping cycle of approximately 3 - 6 seconds, the MAR-LS-300 helps reduce processing time and increase productivity during repetitive cable termination work.

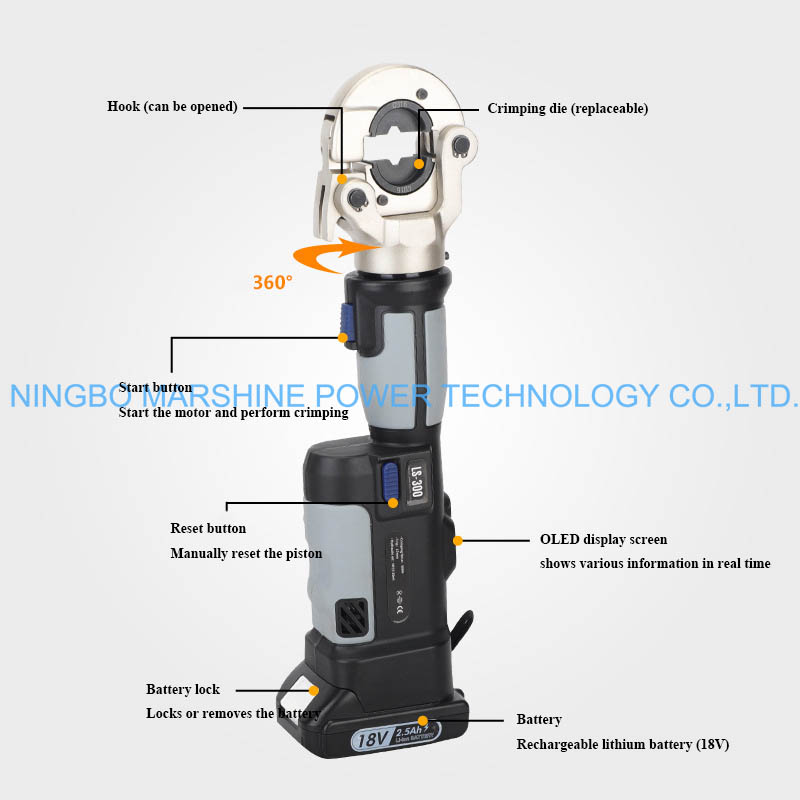

Quick-Release Straight Handle Design

The straight-handle configuration provides a comfortable and balanced grip, while the quick-release design allows convenient die replacement and adjustment between different cable sizes.

Comprehensive Die Set

The MAR-LS-300 is supplied with a complete set of interchangeable dies covering:

16, 25, 35, 50, 70, 95, 120, 150, 185, 240, and 300 mm²

This broad selection enables one crimping tool to handle multiple cable specifications.

Convenient Battery Charging

The battery requires approximately 2 hours to recharge, helping minimize downtime between work sessions.

Portable Field Design

The cordless configuration eliminates trailing power cables, making the MAR-LS-300 particularly convenient for overhead line work, underground cable projects, emergency repairs, and other mobile applications.

Enhanced Plastic Storage Case

The complete tool kit is supplied in an enhanced plastic box, providing convenient storage and protection for the crimper, battery, charger, and interchangeable dies during transportation and storage.

Product Application

The cordless design is particularly advantageous for field operations where mobility is important. Without the need for a mains power connection, operators can easily carry our MARSHINE MAR-LS-300 Battery Hydraulic Crimper between work locations and perform cable crimping directly at the installation point.

Technical Parameters

Model	MAR-LS-300
Crimping Force	60 KN
Crimping Range	16-300 mm²
Stroke	17 mm
Crimping Time	170 times (150mm² Copper)
Crimping Cycle	3-6 s
Voltage	18 V
Battery Capacity	4.0 Ah
Charging Time	2 h
Packing	Enhanced Plastic Box
Crimping Die	16,25,35,50,70,95,120,150,185,240,300mm²
