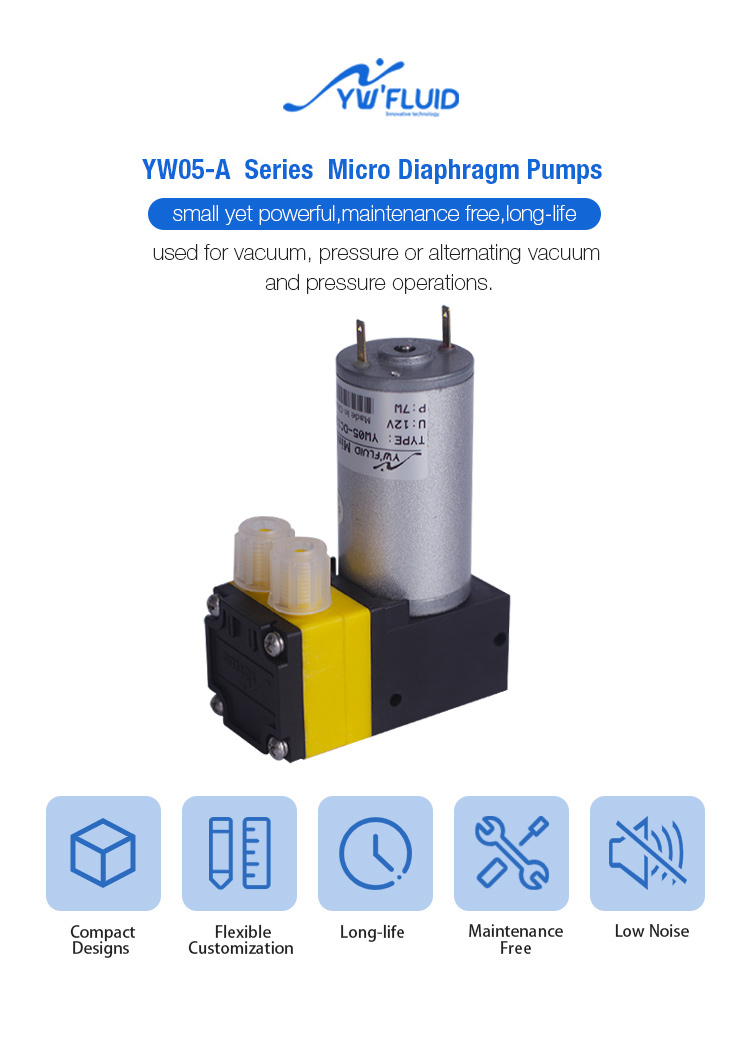

YWfluid Miniature Diaphragm Pump With DC motor Air Flow rate 3L/min Liquid flow rate 600ml/min
| Model | DC | DCL | BLDC |
| Motor type | Brush motor | Brush motor | Brushless motor |
| Pump Assembly Rated Life | 2000Hrs | 3000Hrs | 5000Hrs |
| Media | Gases and liquid | ||
| Pressure range | 0.1Mpa | ||
| Vacuum range | -0.05Mpa | ||
| Gas flow | 3L/min | ||
| Liquid flow | 600ml/min | ||
| Operating Environment | 0-40℃ | ||
| Head Configuration: | single | ||
| Nominal Motor Voltages | 12V,24V Other voltage can be customized | ||
keywords:12V Miniature Diaphragm Pump with dc motor high flow rate 600ml/min,12V Miniature Diaphragm Pump with dc motor high flow rate,6V Miniature Diaphragm Pump with dc motor high flow rate 600ml/min
Keywords:12V Air Cooler Pump Used for gas transfer,24V Air Cooler Pump Used for gas suction,12V Air Cooler Pump Used for vacuum generation
