Description:

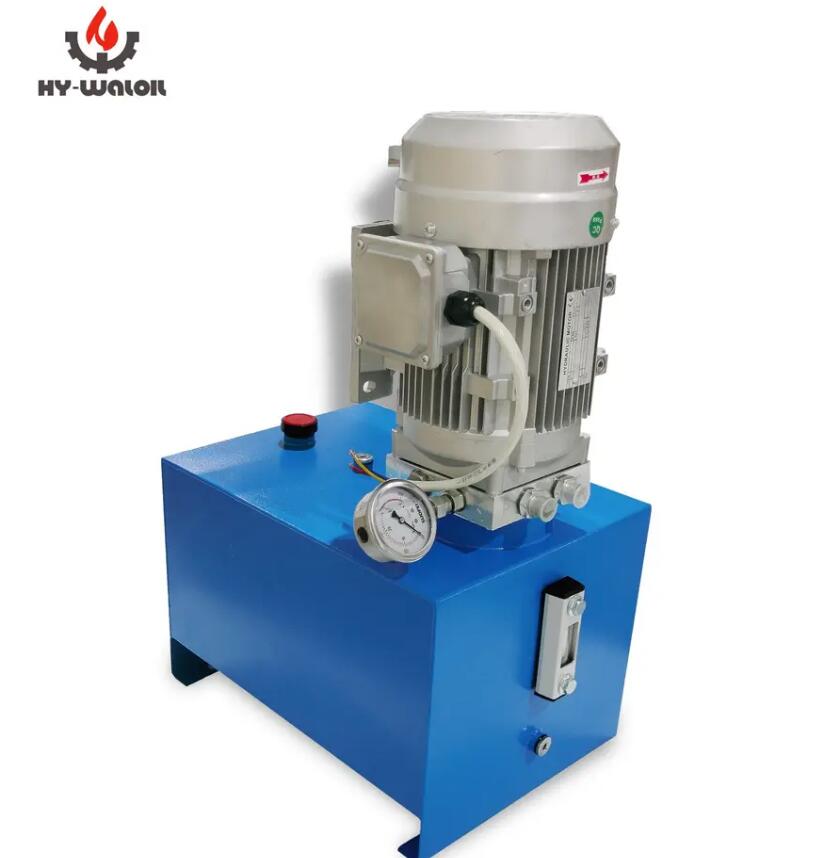

This Hydraulic Power Unit is to operate double acting cylinders, AC380/220V
Hydraulic power unit. 3kw AC380V electric motor 8.0cc/r gear pump.
40 Litrer steel tank with drain plug.
Hydraulic Power Unit complete with suction filter, return oil pipe and air breather.
Mounting: Horizontal Mounting. Max pressure: 180 bar.
Relief valve: RV2-08. set pressure 180 bar, but adjustable from 50-200 bar as standard for each power pack..
Flow Rate: 12 l/min.
Relief valve and check valve for all standard power unit
Oil Port size :3/8"BSP Power Packs suitable for all kinds of single acting cylinder.
100% QC testing, R&D capacity
Model No
P2-1Z3C2
Fuel Tank
8L
Reservoir
Metal Reservoir
Package Size
51*25*23 CM
NW/ GW
21/ 25kg
Relief Setting
1500~3200 PSI
Advantage
Application
