500W Mono Solar Panel For Solar Street Light:
Stark New Energy Monocrystalline 48 Volts Solar Panel has IEC,TUV,CE certification and focus on battery, ESS, Monocrystalline Solar Panel and Solar Panel System design install and export experience field for over 10 years.We supply competitive PERC mono, poly ,half cell solar panels.12v Monocrystalline Solar Panel includes 10W 20W 30W 40W 50W 80W 100W 200W 300W 400 500W etc, widely used in Residential Solar Panel Kits, home solar energy system, MW solar power plant.
Technical data:
Place of Origin:China
Brand Name:Stark New Energy
Model Number:STKM96-500
Type:PERC, Half Cell, Bifacial, Double-glass, All Black, MWT, IBC, HJT, hbc, Flexible, BIPV
Size:1960*1310*45mm
Panel Efficiency:19.51%
Warranty:10 years,25 years output power guarantee
Material:Mono crystalline

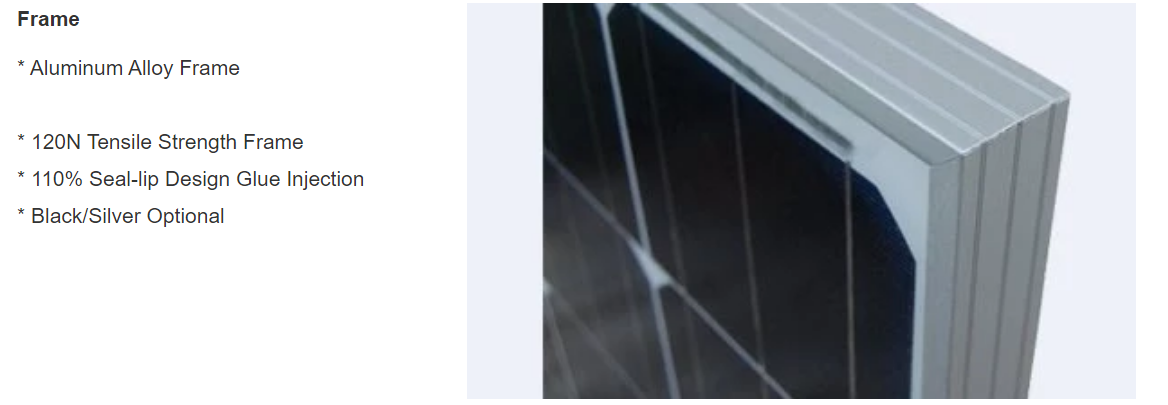

Frame:Anodized Aluminium Alloy

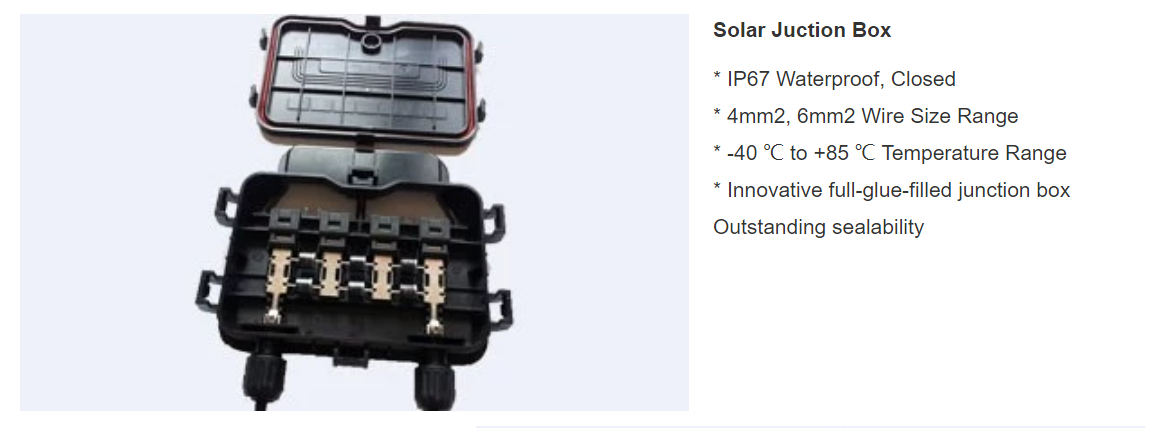

Junction Box:IP 67 or IP 68 rated

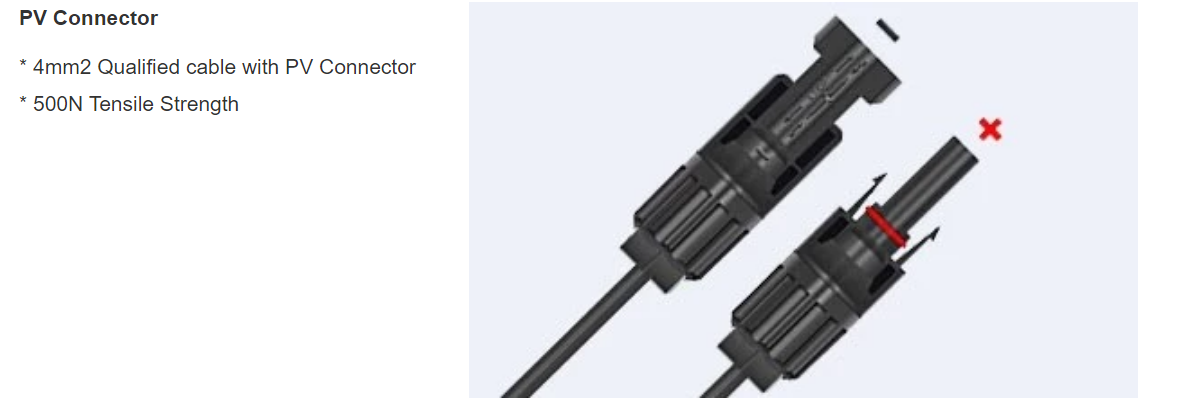

Connector:MC4
Backing Color:White Backsheet
Cable:4.0mm2 1000 mm (39.4 inches)
OEM:Avilaleb
Weight:26kg(49.6 lb)
Module:Solar Panel

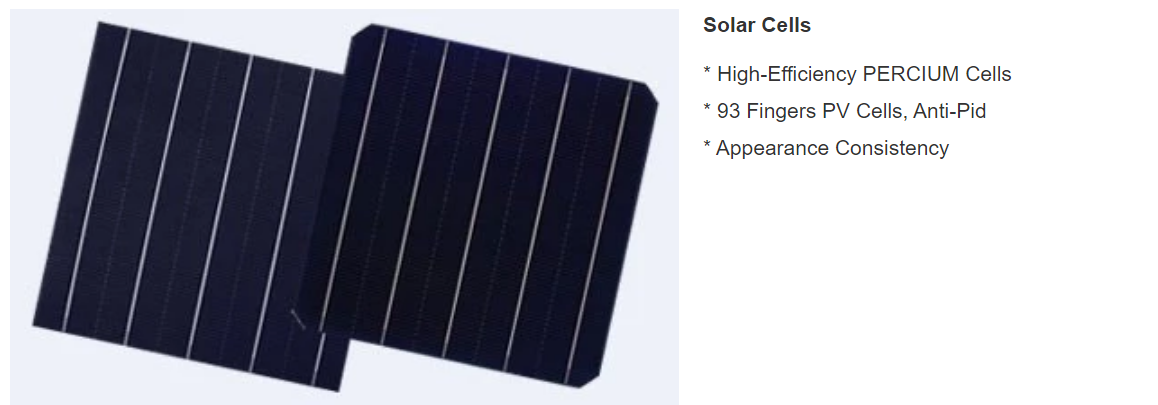

Solar cell:96 cells(8*12)
Model
STK460M
STK480M
STK490M
STK500M
Rate Maximum Powe at STC
460W
480W
490W
500W
Maximum Power Voltage(Vmp)
48.01V
48.35V
48.45V
48.63V
Maximum Power Current (Imp)
9.59A
9.93A
10.12A
10.28A
Open Circuit Voltage (Voc)
58.75V
58.59V
58.89V
58.95V
Short Circuit Current (Isc)
9.78A
10.04A
10.67A
10.87A
Module Efficiency
17.95%
18.73%
19.12%
19.51%
Power Tolerance
0~+3%
0~+3%
0~+3%
0~+3%
STC
Irradiance 1000w/m2,cell temperature 25℃,air mass 1.5
| Mechanical Parameters | ||||
| Cell Type | Mono-crystalline | |||
| No.of Cells | 96(8×12) | |||
| Dimension | 1960*1310*45mm | |||

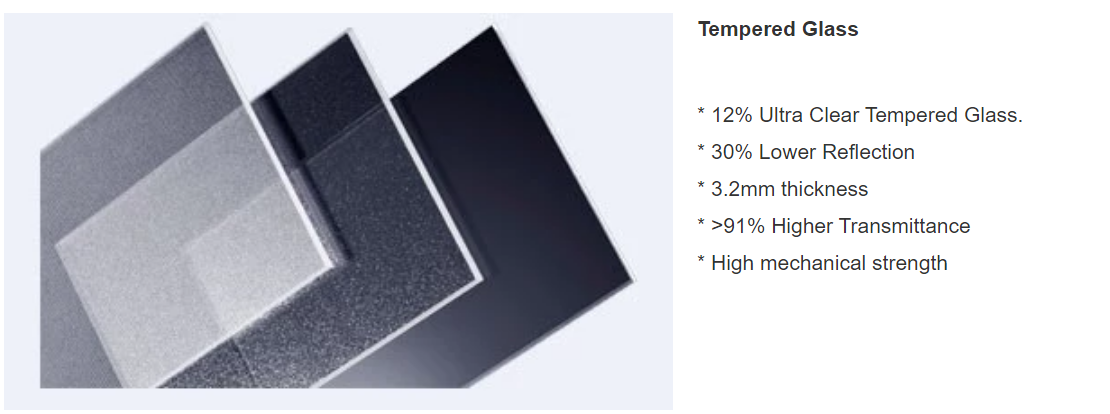

| Glass | 3.2mm,high transmission,low iron,tempered glass | |||
| Junction Box | IP65 & IP67 Rated | |||
| Output Cable | Section size:4mm2,length:900mm | |||
| Frame | anodized aluminum alloy | |||
| No.of Bypass Diodes | 3&6 | |||
| Connector | MC4 compatible | |||
| Weight | 26kg | |||
