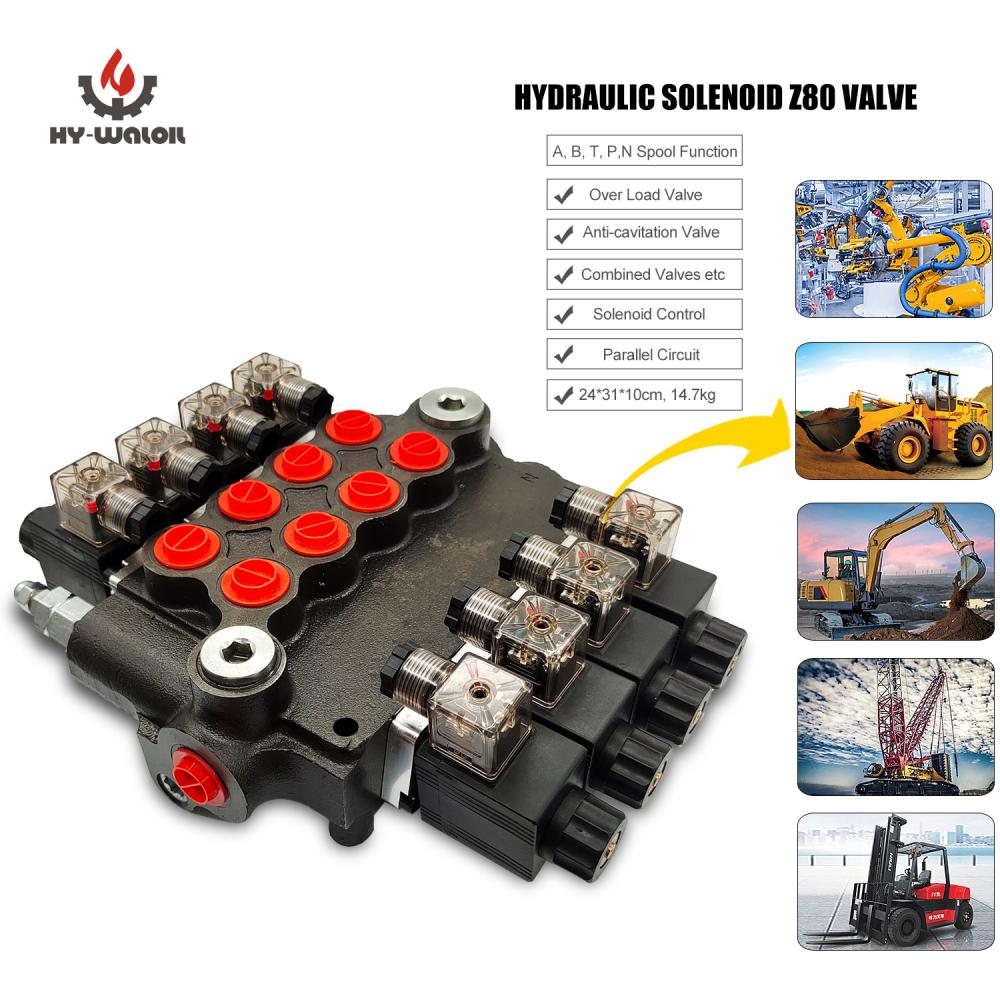

4Z80 Solenoid Hydraulic Control Valve

Z80 Direction Control Valves Description:

4 Z80 Solenoid Valve Nominal flow rate - max 80 l/min
Solenoid Hydraulic Valves Z80 with G1/2 Operating pressure:
port P - max 250 bar at 25 l/min;   max 160 bar at 80 l/min
Z80 Solenoid Operated Directional Control Valves ports A, B - 300 bar
Electromagnetic 4Z80 Hydraulic Distributor 24V port T - <50 bar

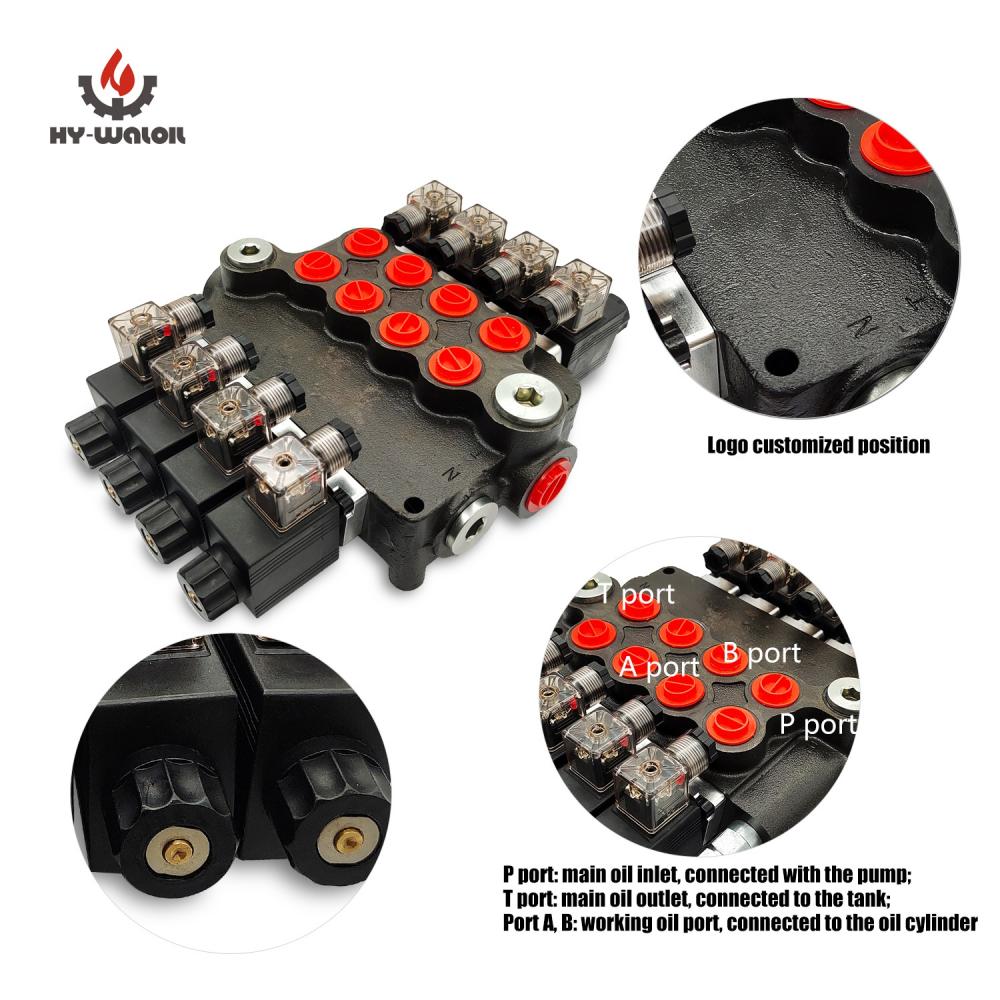

Port threads: P, A, B - G1/2
Port T, N - G3/4
Z80 Solenoid Operated Directional Control Valves Working conditions
Pecommended Oil viscosity range 10 to 100 cSt
Max.   contamination: class 10
Z80 Solenoid Operated Directional Control Valve Port threads: P, A, B - G1/2 Port T, N - G3/4

Switch Box with one momentary rocker switch that springs automatically to the neutral position
5 ft long extension harness
Weatherproof enclosure and DIN connectors

In valve on utility crane, its Awesome providing ability to control remotely. Load lifting cylinder kept retracting on its own.
