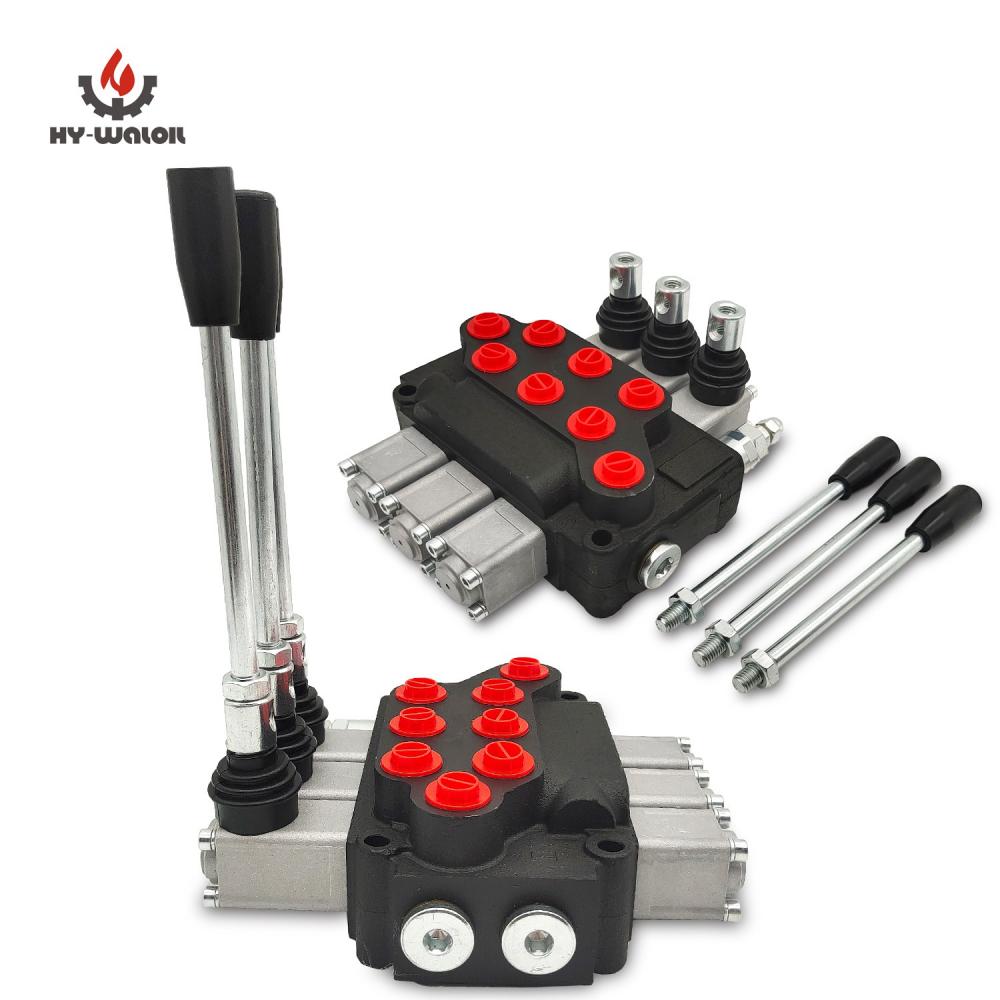

3DCV40 Hydraulic Pump Control Valve

What is the most common DCV40 Series?

DCV40 series spool valves are among the most common types of DCVs, characterized by a cylindrical spool that slides within a valve body. The position of the spool determines the fluid pathway and consequently, the direction of fluid flow

45 LPM Hydraulic Bank Oil Monoblock Control Valve Description:

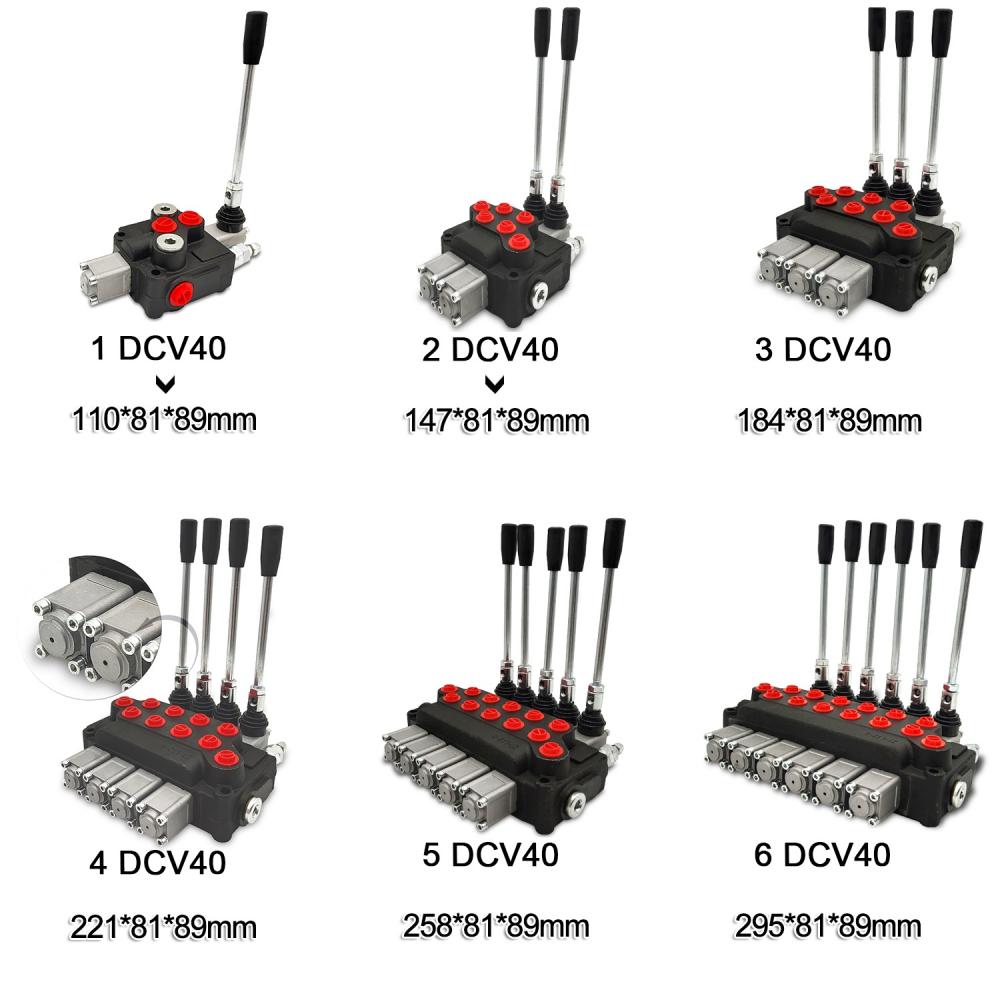

* Monoblock types with 1 to 8 working sections

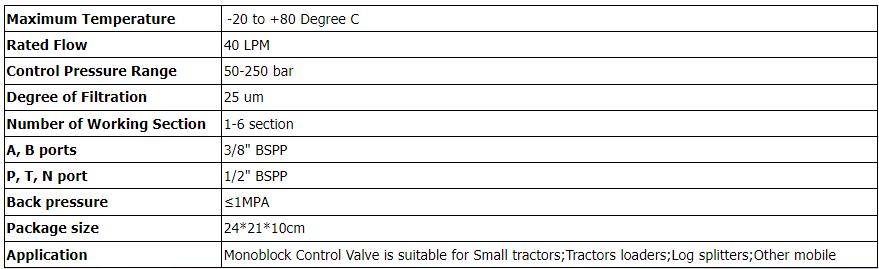

* Dcv40/ Zt-L12-Ot Hydraulic Control Valve Nominal pressure 45 l/min, max 50 l/minute with pressure 160bar, 200bar, max pressure up to 315bar

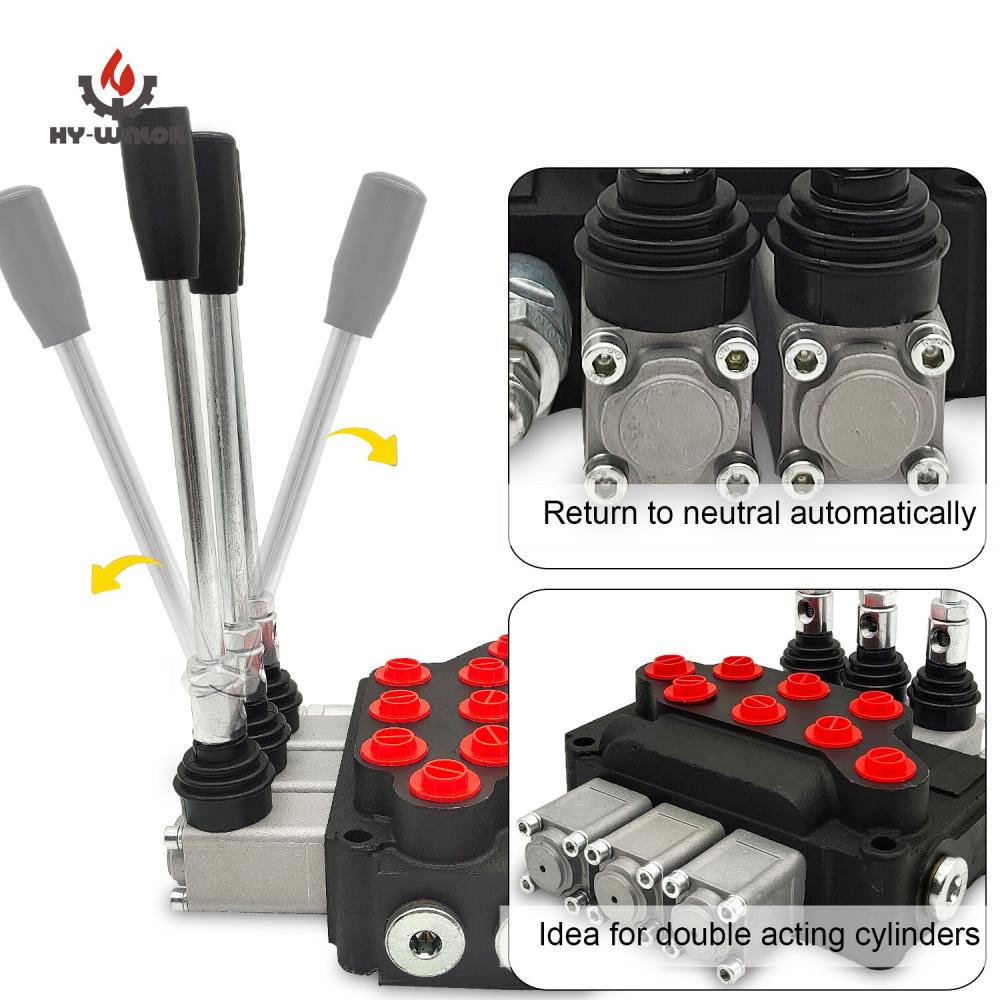

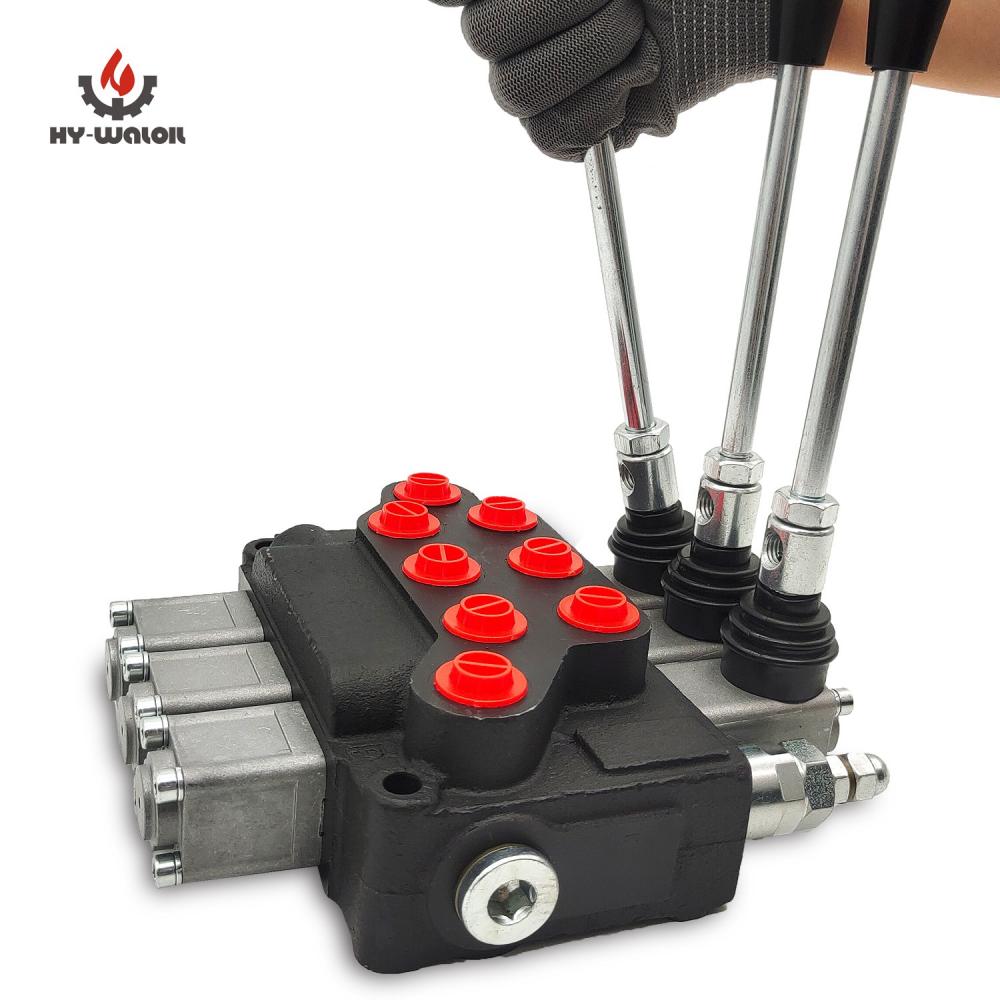

* Operated Manual Directional Valve Spring side control options: T (spring return) and W (detent control);
* Hydraulic Manual Shut Off Valve Joining port: L (screw connection)
* Parallel circuit
* Spool function: O, P. Y, A

 How to get sample of DCV series?

The simplest directional control valve is the 2-way valve. A 2-way valve stops flow or allows flow. A water faucet is a good example of a 2-way valve. A water faucet allows flow or stops flow by manual control.

Pls feel free to contact sales manager: Shinging

1.The valve body is made of integrally cast.

2.Max pressure is 31.5MPa , Max flow is 45L/min.

3.Egulating pressure function

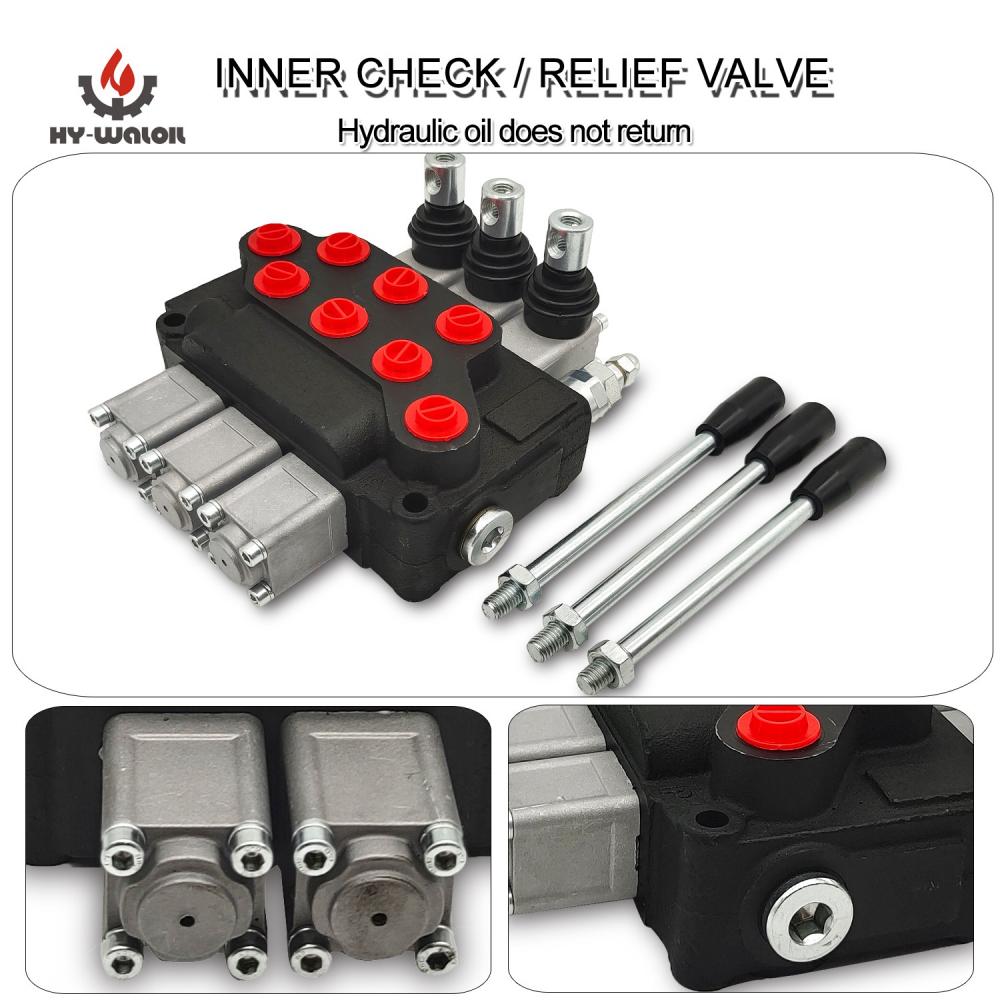

4.Anti-hydraulic backflow function

5.The product also has good sealing performance. long lasting life.
