Product details

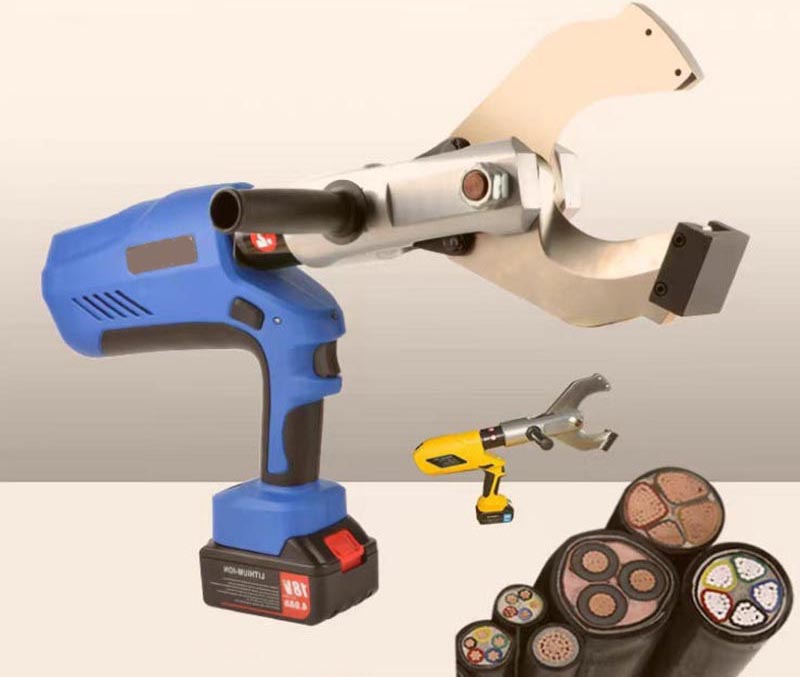

Battery Powered Hydraulic Cable Cutter

The MARSHINE Battery Powered Hydraulic Cutter clears up tangled power cords and separates the hydraulic pump gear to provide totally wireless cable cutting capability for field electrical crews. Comprised of integrated hydraulic actuation components and swivel cutting jaw assembly, this cordless cable cutter eliminates tedious manual pumping action that tires the operator in rounds of sustained cutting work. The internal hydraulic cylinder design makes it a firm battery hydraulic cable cutter without any sudden power drops in the middle of cutting thick armored wires. Equipped with a built-in digital display panel to track operations, this electric cable cutter allows technicians let technicians know about battery reserves and the number of cuts made live even during working on busy shifts.

This cordless cable cutter provides a maximum cutting force of up to 150 kn, combined with a piston stroke length of 50 mm, allowing the dense multi-layer cable to be sliced cleanly under a single smooth stroke.

It can be used on copper, aluminum and steel armoured cables with an outer diameter of up to 65 mm, basically all medium voltage distribution cables used in city and industry electrical work.

The MARSHINE Cordless Cable Cutter runs on 5.0 ampere hour 18 volt lithium battery and the cell is designed to withstand 130 complete cut cycles at full load.

A complete battery recharge is completed in just 2 hours by means of the included wide voltage charger, which is suitable for use with different voltages around the world.

The entire kit ships in a shockproof plastic storage case, with spare batteries, charging adapter and an adjustable shoulder strap for convenient transportation from one scattered jobsite to the next.

The hydraulic cable cutter is used to cut the copper and aluminum cables for the overhead transmission line during the stringing and tensioning the line.

This machine is a hand held battery powered cutter for cutting armored underground distribution cable in urban municipal conduit installation and repair jobs.

The MARSHINE Cordless Cable Cutter makes the cable ends for the terminations that crimp in indoor electrical cabinets and in transformer building shops.

The battery hydraulic cable cutter that finishes the imperiative cable cutting work during seed damage power-line restoration details.

It play a part in temporary construction power supply as well as industrial factory interior power system renovations.

Parameter

Model	EZ-65C
Voltage / Capacity	18V / 5.0Ah
Cutting Force	150kN
Net Weight (with Battery)	6.5kg
Stroke	50mm
Charging Time	2 Hours
Cutting Cycles (at Full Voltage)	130 times
Packaging	Plastic Hard Case
Cutting Capacity	Max. φ65mm Copper / Aluminum & Armored Cable
