Neutral packing: PE bag & carton
Others: can be customized packaging/custom carton

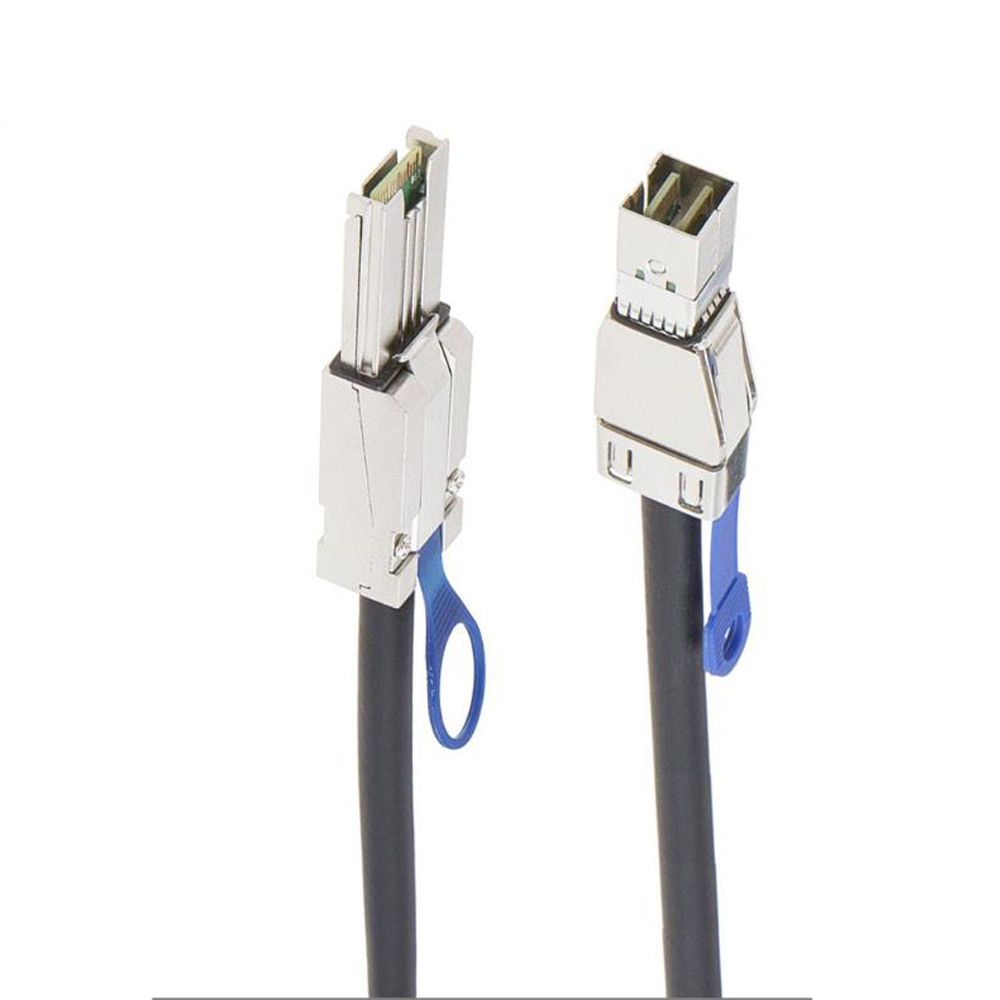

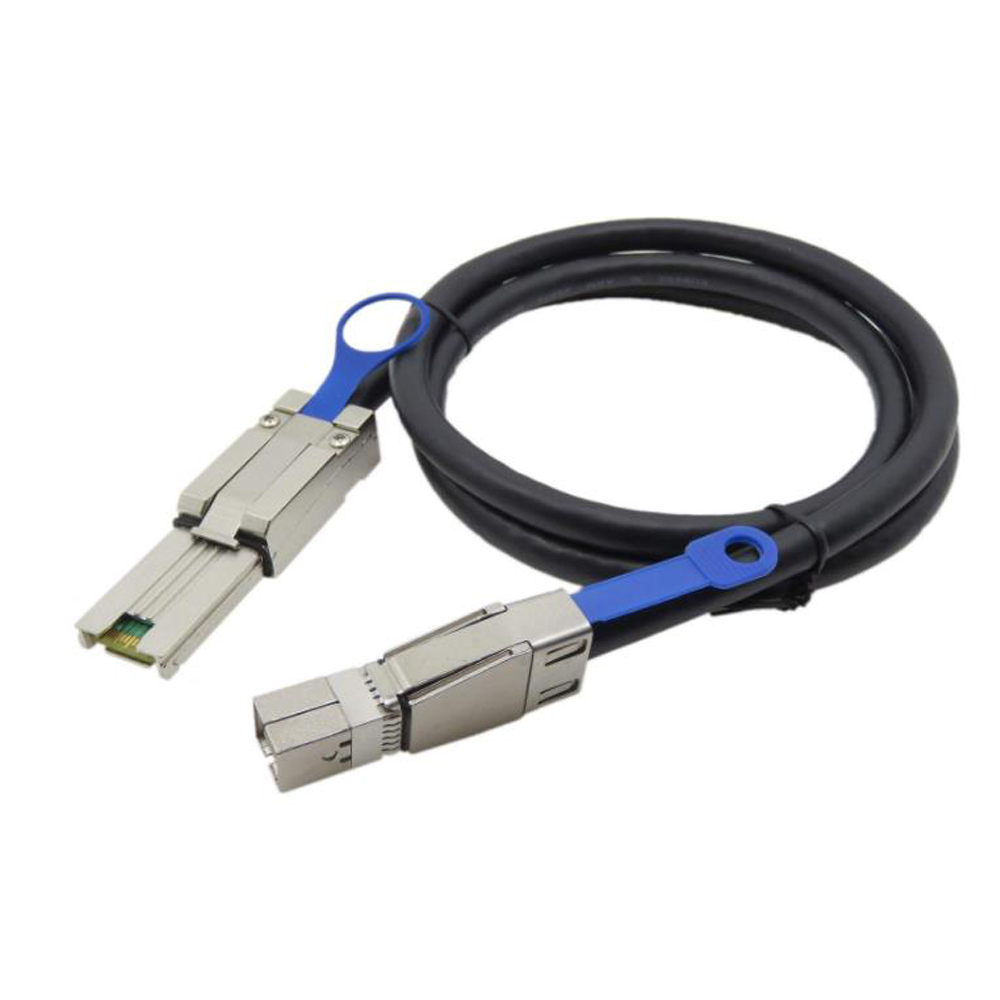

1FT 3 FT 5FT SFF-8644 External MiniSAS HD to SFF-8088 External MiniSAS Male to Male Black Storage Cable1
3 year ago
Product details
Our Advantages
Product Description
Specification
|
item
|
value
|
|
Type
|
MiniSAS 8088 to 8644
|
|
Use
|
COMPUTER, server device
|
|
Private Mold
|
NO
|
|
Brand Name
|
Bofan
|
|
Model Number
|
Bofan-001
|
|
Place of Origin
|
China
|
|
USB Type
|
8088 to 8644
|
|
Material
|
PVC, TPE
|
|
Connector
|
8088 to 8644
|
|
Function
|
Fast Transmission, High Speed
|
|
Usage
|
Computer, server device
|
|
Connector
|
CN 50PIN MALE
|
|
Contact Plating
|
Nickel Plated
|
|
Cable gauge
|
28AWG
|
|
Cable Jacket Material
|
PVC
|
|
|
|
HD MiniSAS STR TO STR
Product Description: HD Mini SAS 26P Straight to 36P Straight
Series: HD Mini SAS
Cable Length: 1 meters
Wire Size: 28AWG, Tinned copper,OD: 0.9*2.3mm
Lock to Mating Part: With Latch
Plating: Au(30u" min) over Ni(100u" min)
Color: Over mold Black
Environmental Compliance: ROHS
Flammability: Cable Horizontal flame,PCB 94V-0,PBT 94V-0
Applications
Data/Communications
1.RAID (Redundant Array of Independent Disks )
2.Workstations
3.Rack-mount server
4.Servers
5.Storage rack
Features and Benefits
1.Transmission rate 12 Gbps.
2. Meet SAS3.0 specification.
Mechanical Performance
Mating Force and Unmating Force
Condition: EIA 364-13. insert and extract at a speed of 25mm/minute.
Mating Force: 100 N maximum.
Unmating Force: 50 N maximum.
Electrical Performance
1.Contact Current Rating
0.5Amperes maximum per pin when mated.
2.Voltage Rating
30VAC per contact when mated or unmated.
3.Contact Resistance
30mohm max. initial, 15mohm maximum after stress test.
4.Dielectric Withstanding Voltage
500 VAC for 1 minute no breakdown.
5.Insulation Resistance
1000 Mohm minimum.
Signal Integrity
1.Mated Connector Impedance: 100 ohm±15%
2.Cable Absolute Impedance: 100 ohm±10%
Product Environmental Compliance
RoHS2.0: Compliant
ChinaRoHS: Yes
REACH SVHC: Yes
Low-Halogen Status: Not Reviewed
Company Profile
Certifications
Buyer feedback
Company Introduction
Dongguan Bofan Technology Co., Ltd. was established in 2003, with a total area of 8000MM². We are a connecting cable manufacturer integrating sales and R&D. We have a complete supply chain system and sufficient raw material inventory, which will help in many situations. Up to now, we have more than 300 employees and a monthly output of about 1.5 million pieces. The company has been developing and growing based on the business philosophy of "people-oriented, customer-oriented", and has obtained Disney product production authorization licenses and many other certifications.
Production Process
Product packaging & shipping
Shipping method: By Air (5-7days) Advantage: safest，short shipping time shortcoming: Shipping is expensive, troublesome procedure
Shipping method: by sea
Advantage: lowest cost, Great transportation capacity shortcoming: Long transportation time, the greatest risk, and troublesome procedures
Shipping method: international express(4-6days) Advantage: Short transportation time, door-to-door service, high safety factor, simple procedures, stable cycle
shortcoming: highest shipping cost
Strict requirements for weight and size
FAQ
1. who are we?
We are based in Guangdong, China, start from 2013,sell to North America(40.00%),Western Europe(20.00%),Northern Europe(10.00%),Domestic Market(10.00%),Eastern Asia(5.00%),South America(5.00%),Southern Europe(5.00%),Southeast Asia(5.00%),South Asia(0.00%),Oceania(0.00%),Central America(0.00%),Africa(0.00%),Eastern Europe(0.00%),Mid East(0.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Serial Cable, Industrial Cables, Computer Cables, Wire Harness, Ethernet Cable
4. why should you buy from us not from other suppliers?
13 years manufacture Factory production OEM service Powerful R&D Dept include 15 years engineers 250 workers High quality products Worldwide sale High efficient service
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
