DFS-XX-XXX-D05

DIN 41612 / IEC 60603-2 Connector Product introduction

The variety of different types and termination technologies (press-fit, dip soldering, manual soldering, wrapping, crimping, THR) for DIN connectors cover a wide range of applications.

Eurocard Connectors per DIN 41612 and IEC 60603-2 Features
Various termination technologies possible
Leading and lagging contacts
Pre-centering
Variety of termination lengths
A range of accessories, such as shrouds, board locks, coding keys
Quick lock switch fastener for daisy chaining
Board locks and codes provide developers and users with additional safety and a wide range of possible applications.

DIN 41612 (EN 60603-2) PCB & Backplane Connectors Applications
Backplane daughter card, 19-inch technology (VME)
Board-to-board, parallel, or stacked
High-power

Connector Category: Din 41612 Eurocard Connector丨Solder Din 41612 Connector丨IDC Din Connectors丨High Power Din Connector

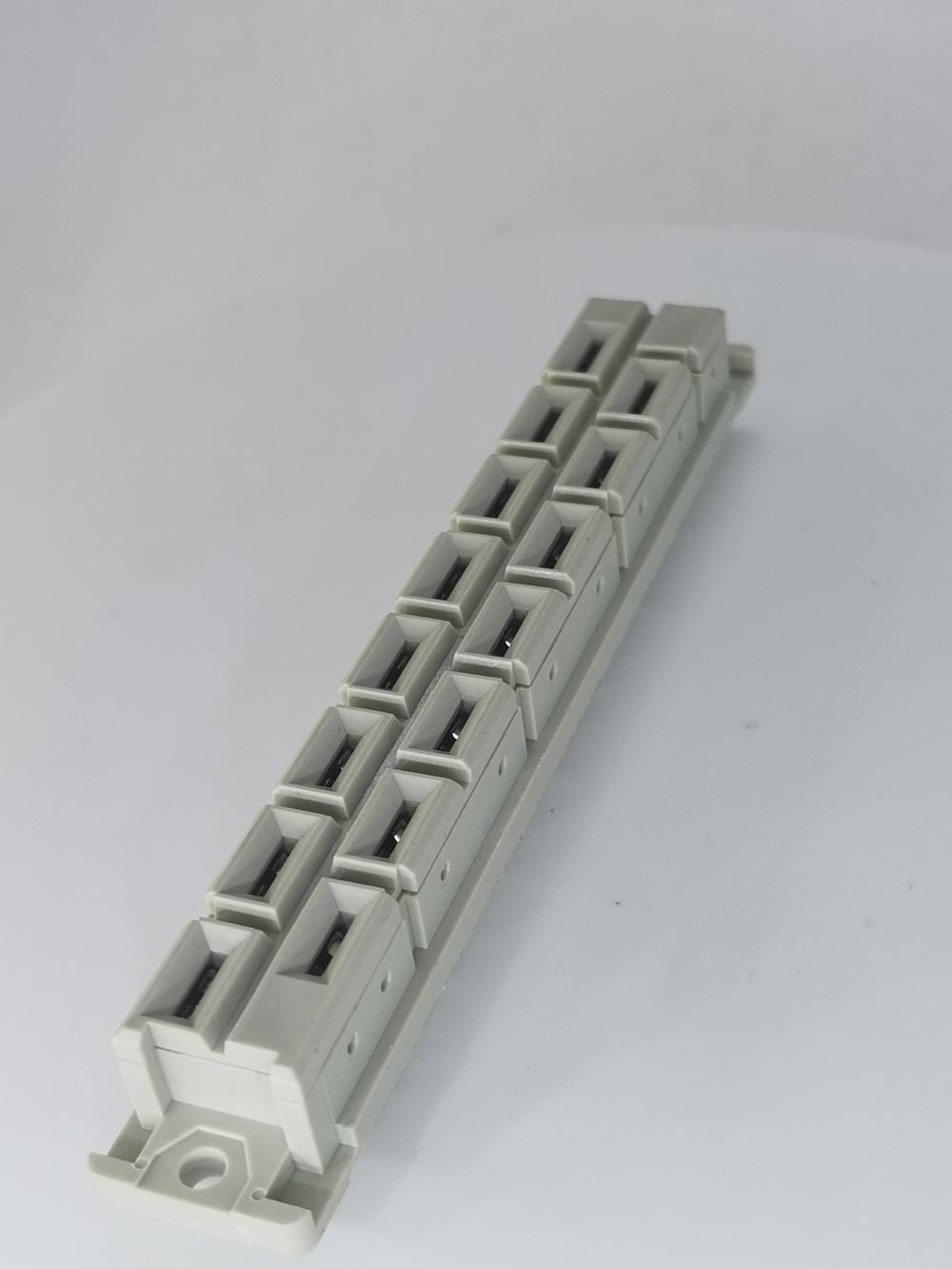

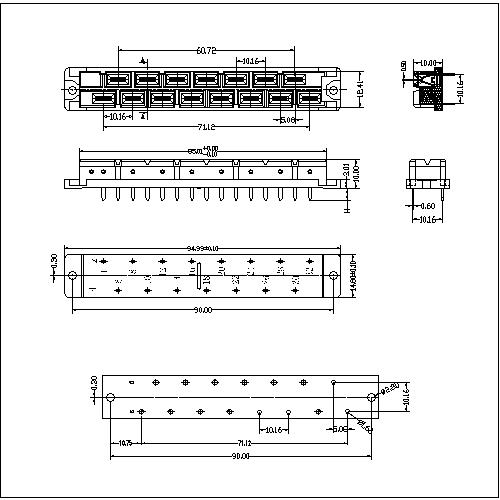

 DIN41612 Vertical Female H15 Type High Power Connectors SPECIFICATION
Current Rating: 15Amp
Insulation Resistance: 1000MΩ min.at DC 500V
Contact Resistance: 8mΩ max
Withstand Voltage: AC 3100V For 1 Minute
Operating Temperature: -55°C to +105°C
Contact Material: Phosphor Brass
Contact Plating: Au or Sn Over Ni
Insulator Material: PBT+30%GF UL 94V-0
Insertion Force: 90N max.
Withdrawal Force: 0.2N min.per individual contact
