Fast Recovery Diode FRD60B30J TO-3PN

3 year ago

83 0 

8 year

Product details

ULTRAFAST SOFT RECOVERY RECTIFIER DIODE FRD60B30

P/N:YZPST-FRD60B30

DESRCRIPTION:
The FRD60B30 is a ultrafast soft recovery rectifier diode.
It has the characteristics of low forward voltage ，low leakage current，

low power loss ，higher reliability systems ， RoHS standard.

YZPST-FRD60B30J-1

ABSOLUTE MAX I MUM RATINGS Ratings (at 25℃ ambient temperature unless otherwise specified.)

Symbol	Parameter	Value	Unit
VR	Maximum D.C. Reverse Voltage
VR	Maximum D.C. Reverse Voltage
VRRM	Maximum Peak Repetitive Reverse Voltage
VRWM	Working Peak Reverse Voltage	300	V
IF(AV)	Continuous forward current ， TC= 110℃	60
IFSM	Single pulse forward current ，TC=25℃	600	A
TJ,TSTG	Operating and Storage Temperature Range	-55 to +175	°C

ELECTRICAL CHARACTERISTICS (at 25℃ ambient temperature unless otherwise specified)

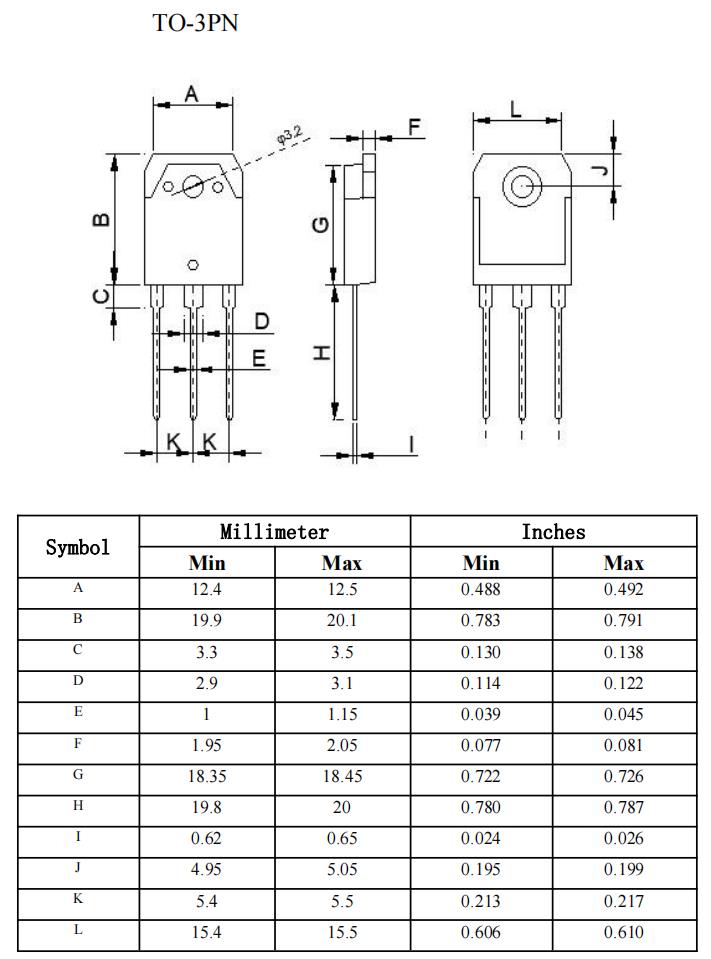

PACKAGE MECHANICAL DATA
