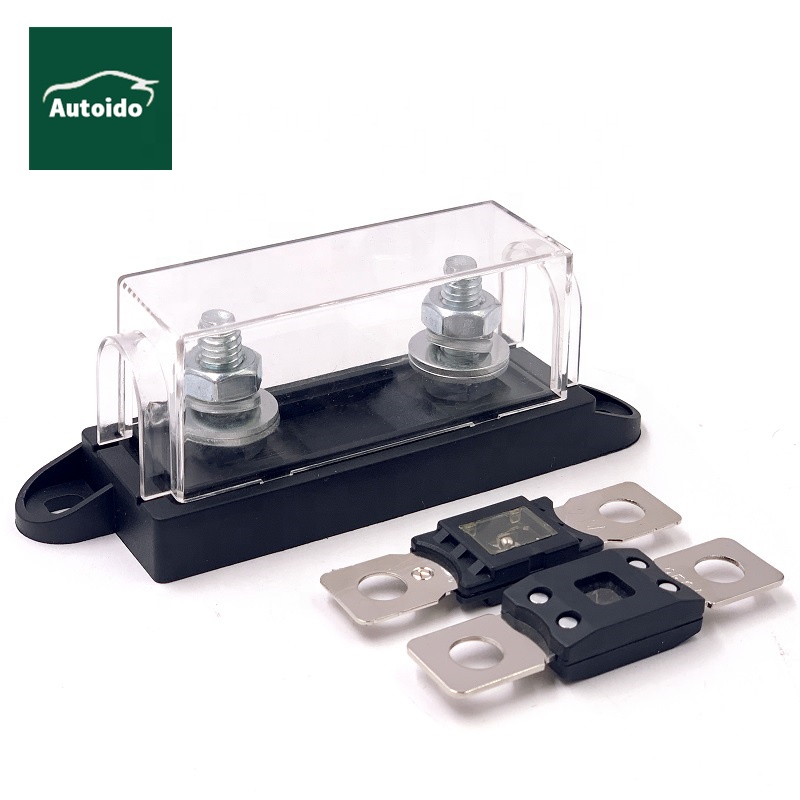

1-Way MEGA Fuse Holder with Clear Protective Cover

The continuous-current capacity of the complete holder assembly must be confirmed through product-specific temperature-rise, voltage-drop and connection tests. Do not select the holder based only on the printed ampere rating of the fuse.

How Does a MEGA Fuse Holder Work?

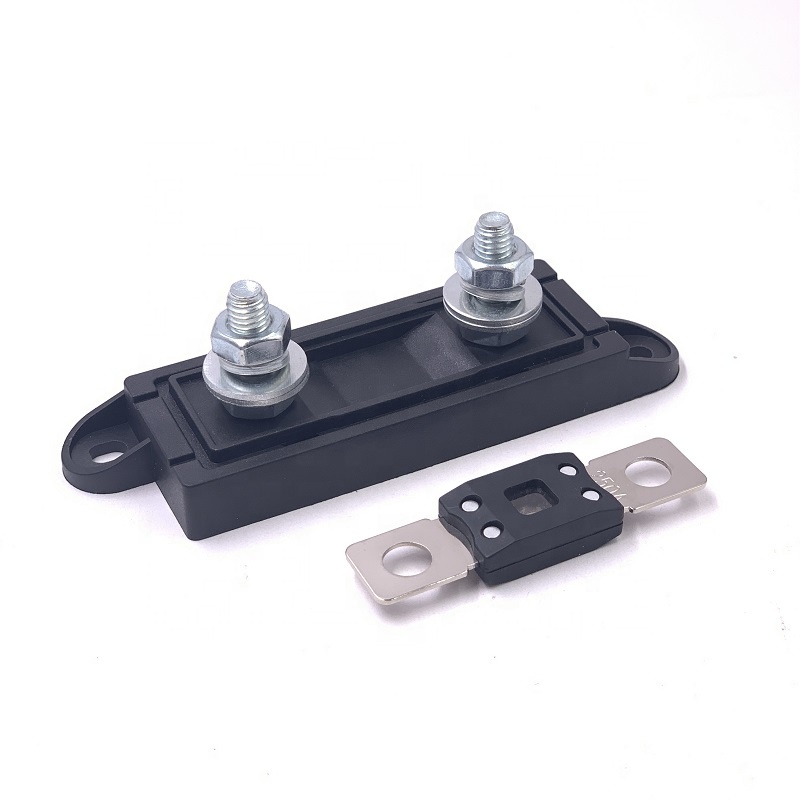

A MEGA fuse is installed between the two threaded studs. One stud connects to the power source and the other connects to the protected circuit.

During normal operation, current passes through the MEGA fuse. When an overcurrent condition exceeds the fuse’s time-current characteristics, the fuse element opens the circuit and helps protect the downstream cable and equipment.

The fuse holder provides the mechanical mounting and electrical connection. Circuit protection depends on selecting the correct fuse, cable, terminals and installation method.

What Is a 1-Way MEGA Fuse Holder?

A 1-way MEGA fuse holder is a single-circuit mounting and connection device designed for a compatible MEGA bolt-down fuse. It provides two connection points for the power source and protected circuit while the installed MEGA fuse provides overcurrent protection.

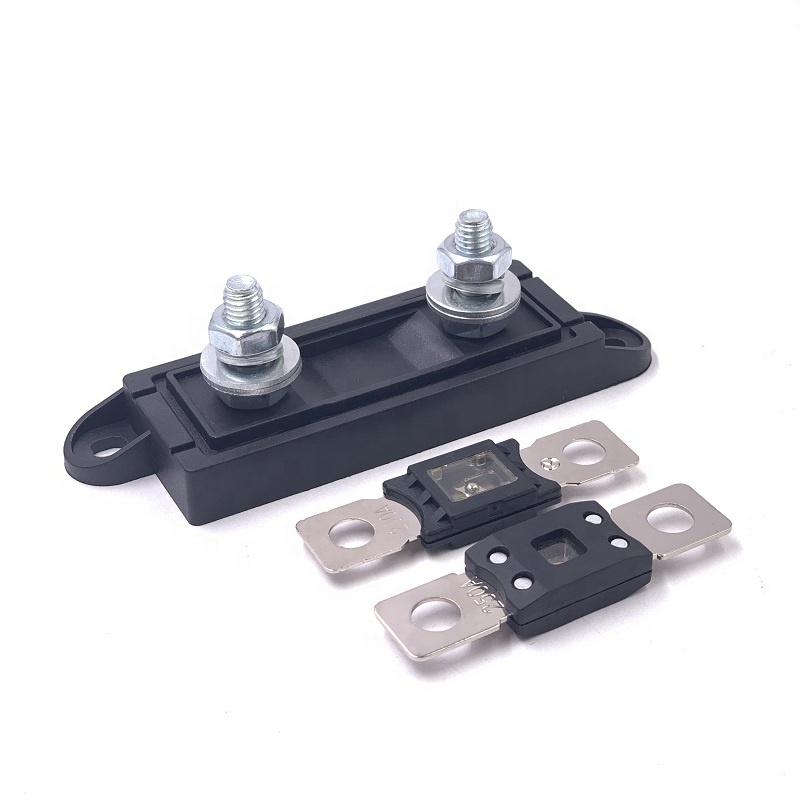

Compatible MEGA Bolt-Down Fuses

This holder is designed for compatible MEGA-format bolt-down fuses.

Before ordering, confirm:

• Fuse body dimensions

• Mounting-hole spacing

• Fuse voltage rating

• Required ampere rating

• Interrupting capacity

• Time-current characteristics

• Cable-lug dimensions

• Available installation space

MEGA, MIDI/AMI and ANL fuses are different formats and should not be assumed to be interchangeable. Never select a fuse by appearance or current rating alone.

Choosing the Correct Fuse Rating

The fuse should primarily protect the connected cable and downstream circuit.

Fuse selection should consider:

• Maximum continuous load current

• Cable conductor size

• Cable insulation temperature rating

• Ambient temperature

• Inrush or startup current

• Circuit voltage

• Expected fault current

• Fuse time-current curve

• Holder temperature-rise performance

• Equipment manufacturer requirements

A 500A MEGA fuse should only be used when the fuse holder, cable, terminals, installation and complete electrical system have been validated for that operating current and fault condition.

How to Install a MEGA Fuse Holder

1. Disconnect the battery or isolate the power source before installation.

2. Confirm that the system voltage does not exceed the holder and fuse voltage ratings.

3. Mount the holder securely on a stable surface.

4. Install correctly sized cable lugs over the M8 studs.

5. Fit the selected MEGA fuse between the two studs.

6. Install the washers and nuts in the specified order.

7. Tighten all connections to the validated torque value.

8. Refit the transparent protective cover.

9. Check polarity, cable routing and connection security before restoring power.

10. Inspect the holder for abnormal heat or loose connections after initial operation.

Install the fuse holder as close to the power source as permitted by the system design. Use properly crimped cable lugs and protect cables from vibration, sharp edges, heat and moisture.

Installation should be performed by a qualified technician according to the vehicle, equipment and electrical-system requirements.

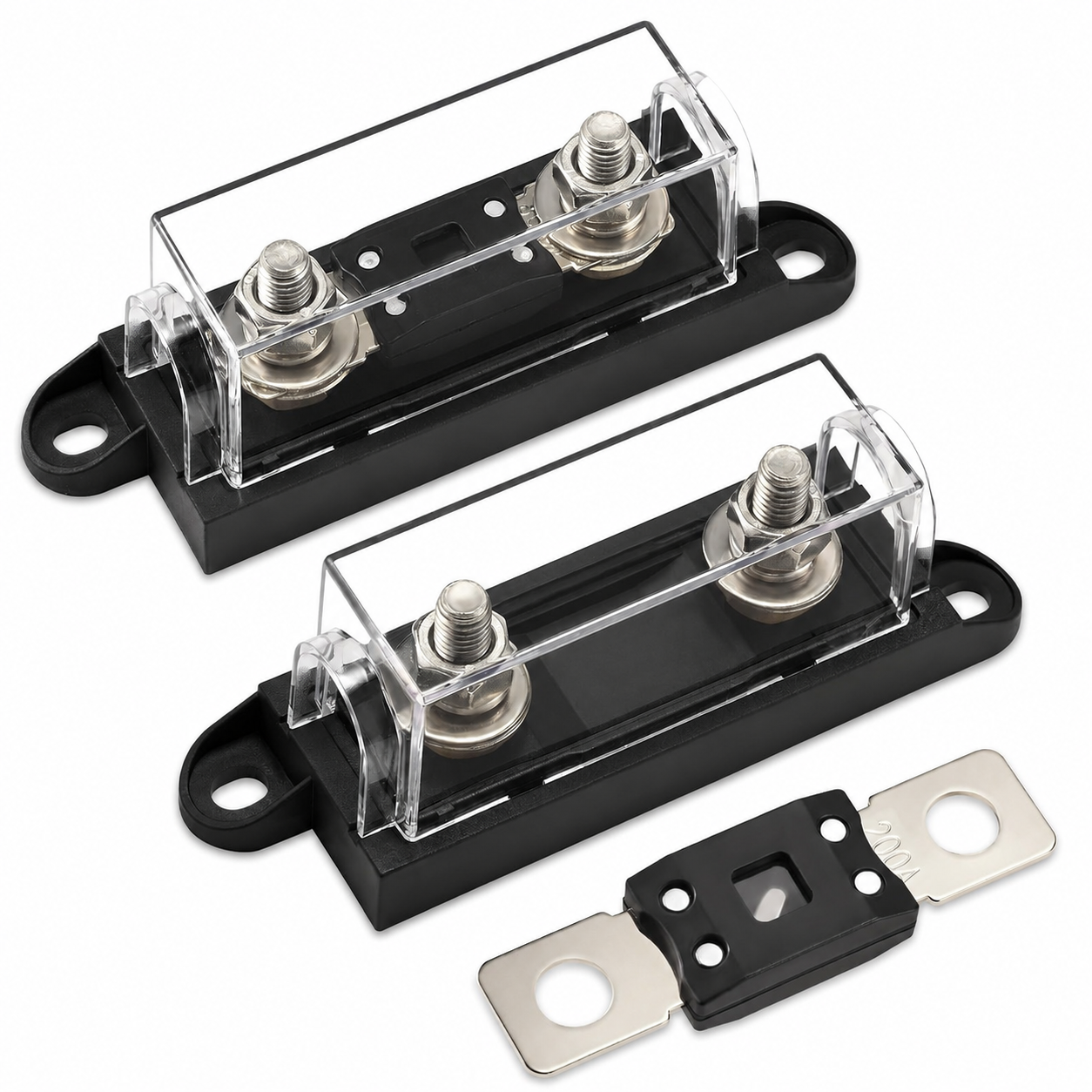

MEGA Fuse Holder Applications

• Auxiliary battery cable protection

• Car audio amplifier power circuits

• Automotive DC power distribution

• RV and camper electrical systems

• Marine auxiliary DC circuits

• DC-to-DC chargers

• Power inverters

• Alternator charging circuits

• Battery isolation systems

• Industrial low-voltage DC equipment

Suitability must be evaluated for each application. This 32V holder is not intended for high-voltage EV traction-battery circuits.

MEGA vs MIDI/AMI vs ANL Fuse Holders

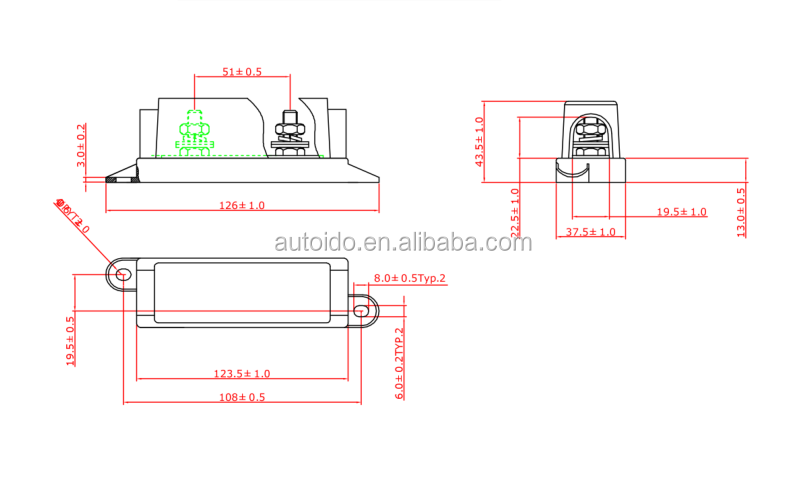

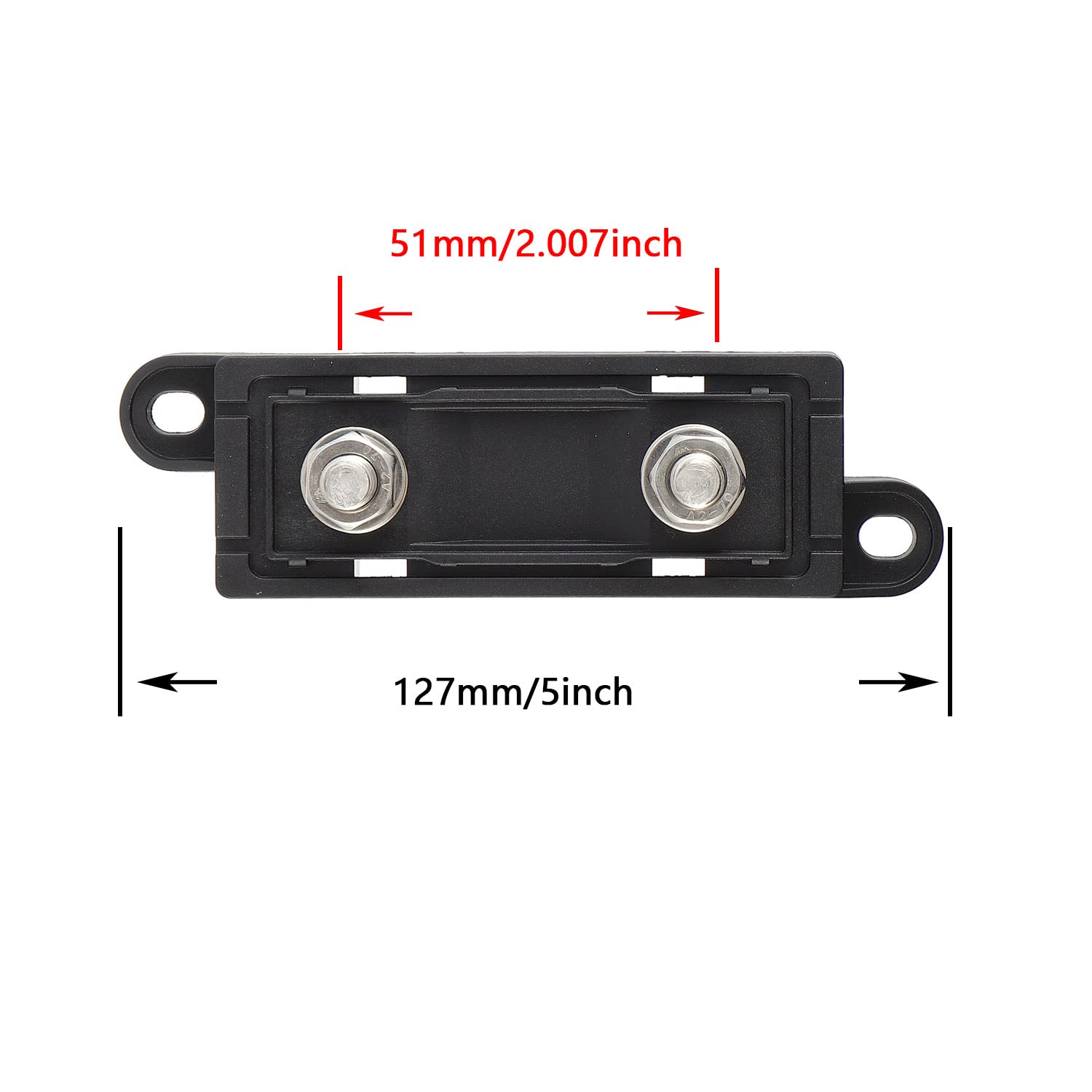

These formats have different dimensions, mounting-hole spacing and electrical characteristics. Verify compatibility using the fuse and holder drawings before ordering.

Materials and Construction

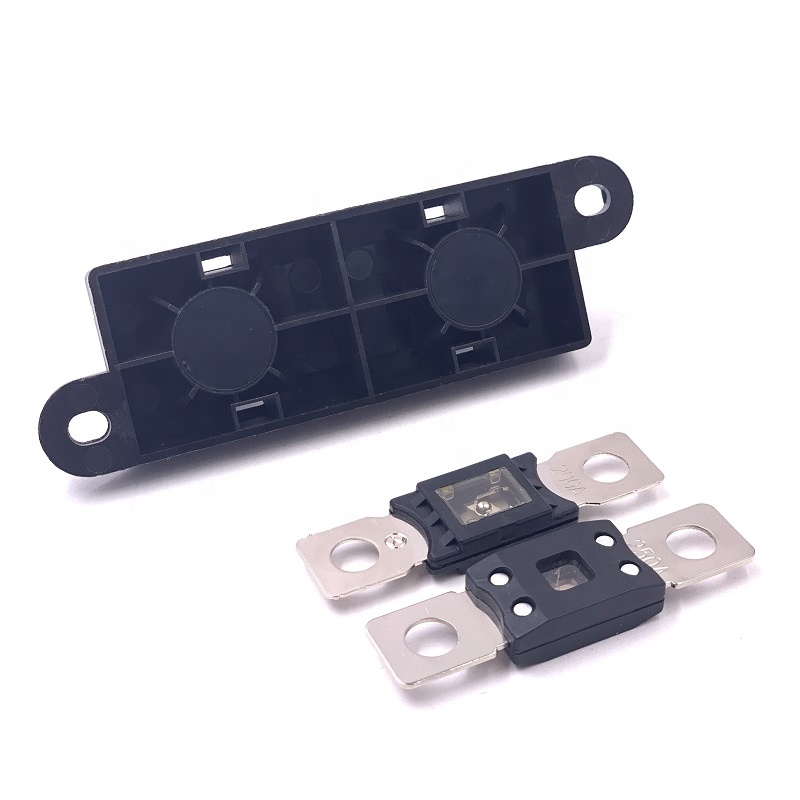

The fuse holder consists of an insulating base, two threaded connection studs, fastening hardware and a transparent protective cover.

The black base supports the fuse and helps isolate the live connection points from the mounting surface. The clear cover allows visual inspection while helping reduce accidental contact with the fuse and terminal hardware.

Is This MEGA Fuse Holder Waterproof or IP Rated?

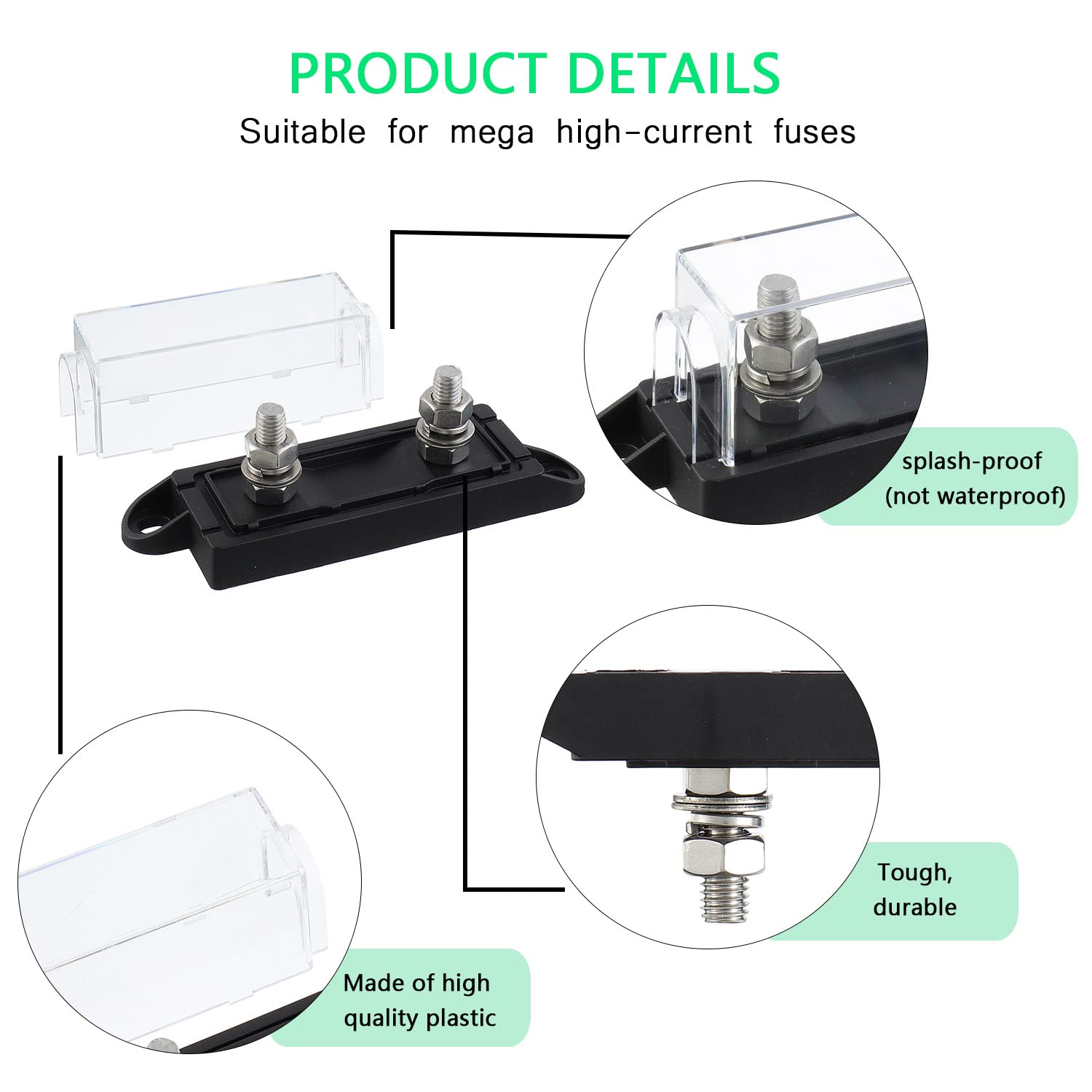

The transparent cover provides physical protection and helps shield the fuse and terminals from accidental contact.

The product should only be described as waterproof or assigned an IP rating when the complete assembled product has passed the applicable ingress-protection test. If no verified IP rating is available, install it in a dry or otherwise protected location.

Quality Control

Depending on the order and project requirements, inspection and validation can include:

• Visual and dimensional inspection

• Fuse fit and installation check

• Cover fit and retention test

• Stud and hardware inspection

• Fastener torque test

• Connection-resistance test

• Voltage-drop test

• Temperature-rise test

• Insulation-resistance test

• Vibration or terminal-loosening evaluation

• Packaging inspection

Only test items actually performed for this part number should be listed in the final product documentation.

MEGA Fuse Holder OEM & ODM Customization

Autoido supports OEM and ODM customization for MEGA fuse holder projects, subject to engineering and production requirements.

• Custom logo and product marking

• Housing and cover color options

• Hardware or plating options

• Custom packaging

• Barcode and private-label packaging

• MEGA fuse and holder kits

• Multi-holder configurations

• Product dimensions and structural development

• Inspection and test requirements

• Bulk and retail packaging

For an accurate quotation, provide the system voltage, continuous load current, fuse rating, cable size, operating environment, required quantity and packaging requirements.

Why Choose Autoido as a MEGA Fuse Holder Manufacturer?

Dongguan Andu Electronic Co., Ltd. has more than 20 years of experience in automotive circuit-protection products.

Our capabilities include:

• Automotive fuse and fuse-holder manufacturing

• Product and mold development

• Automated production equipment

• In-house inspection and laboratory capabilities

• OEM/ODM project support

• Custom packaging and branding

• Fuse and holder combination supply

• Technical support for product selection

Product certifications and test results should be confirmed at the exact part-number level before being included in customer documentation.

Frequently Asked Questions About MEGA Fuse Holders

What type of fuse does this holder use?

It is designed for compatible MEGA-format bolt-down fuses. Confirm the fuse dimensions, hole spacing, voltage rating and electrical characteristics before ordering.

Does the holder include a MEGA fuse?

The fuse can be supplied separately or packaged with the holder. Specify the required ampere rating when requesting a quotation.

Can this holder be used in a 12V or 24V vehicle?

A 32V-rated holder may be suitable for 12V or 24V DC systems when the maximum circuit voltage and all other electrical requirements remain within the validated ratings.

Does the holder support 500A continuously?

Not necessarily. The available MEGA fuse range does not by itself establish the continuous-current rating of the holder. The holder, cable, terminals and complete installation must be validated through temperature-rise and voltage-drop testing.

Is the holder waterproof?

A transparent cover does not automatically make the product waterproof. Use a waterproof claim only when a verified IP rating or applicable ingress-protection test report is available.

Are MEGA and ANL fuses interchangeable?

No. MEGA and ANL fuses use different physical formats and mounting arrangements. Use only the fuse type specified for the holder.

Can several holders be installed together?

The side interlocking structure can allow compatible holders to be arranged together. Each circuit still requires its own correctly selected fuse and cable.

What size terminals are required?

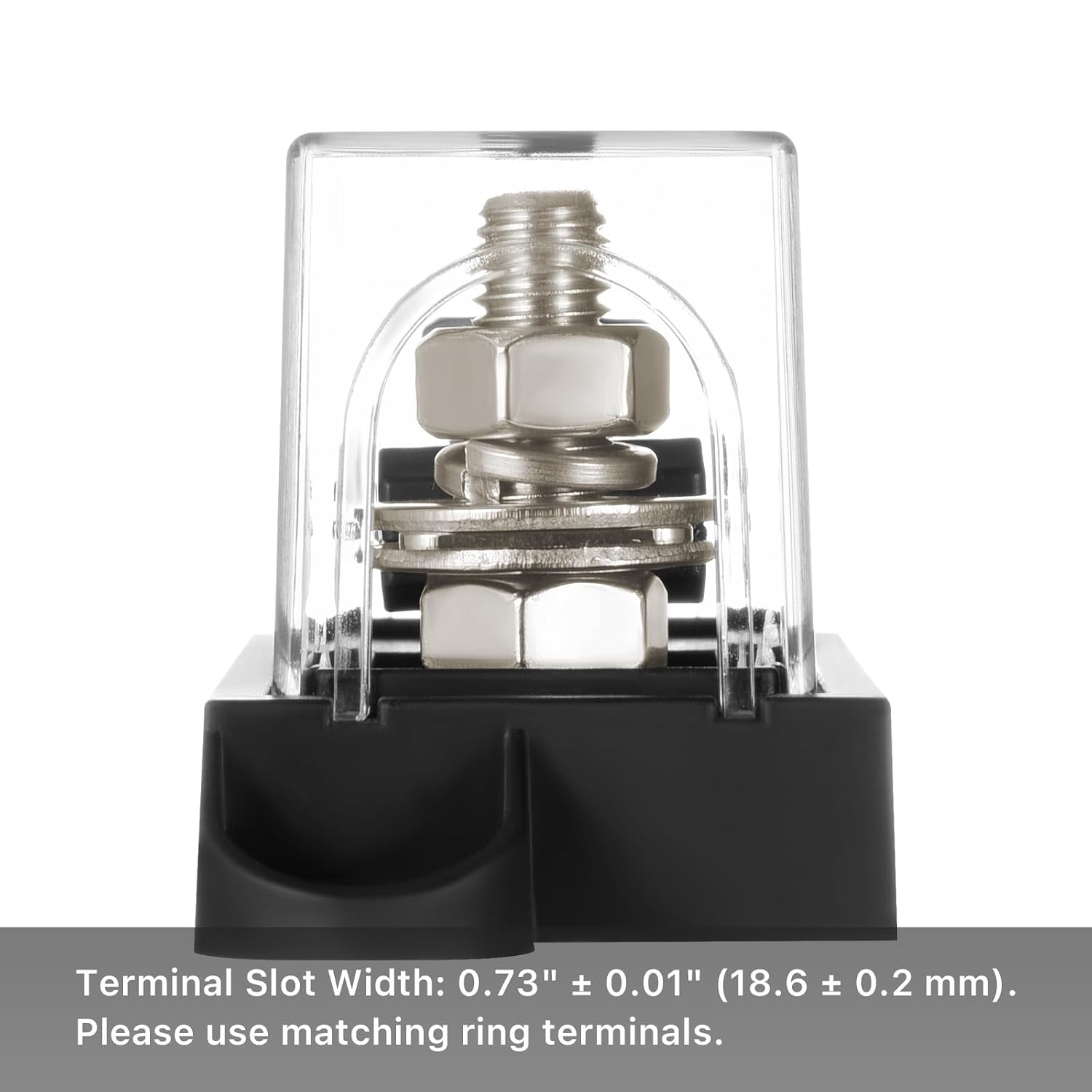

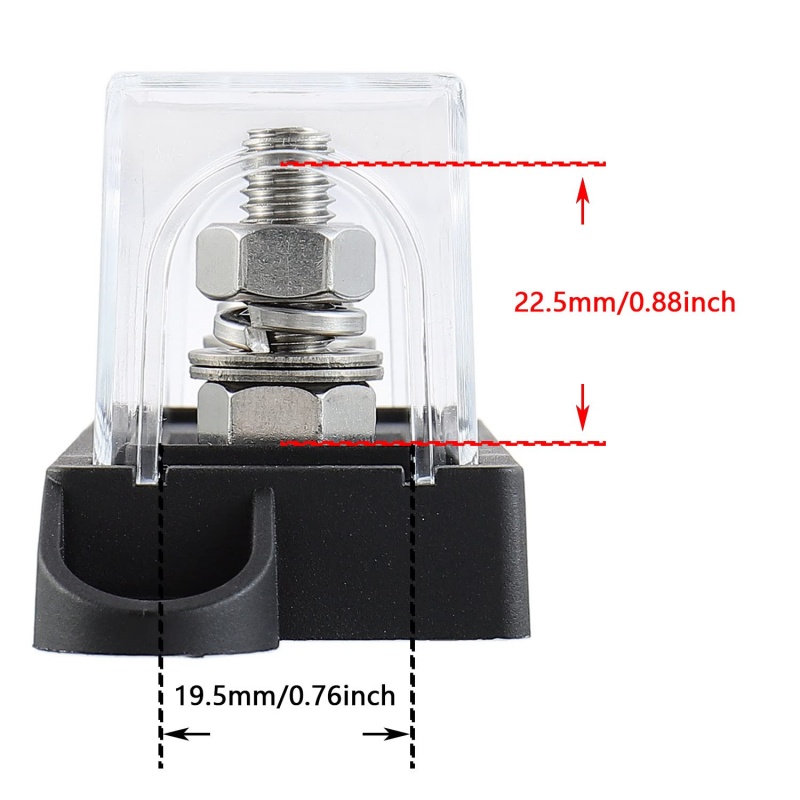

The current product uses M8 threaded studs. Select ring terminals that match the M8 studs and the cable conductor size.

Where should the fuse holder be installed?

Install it close to the power source where permitted by the electrical design. Choose a secure, ventilated and protected location away from excessive heat, vibration and moisture.

What information is needed for an OEM quotation?

Provide the voltage, continuous and peak current, fuse rating, cable size, application, operating environment, quantity, logo and packaging requirements.
