How Does an ATC/ATO Inline Fuse Holder Work?

An inline fuse holder is installed in series between the power source and the electrical load.

Typical circuit:

Power Source → ATC/ATO Inline Fuse Holder → Electrical Load

The holder provides the mounting and electrical connection for the blade fuse.

The installed ATC/ATO fuse provides the actual overcurrent protection. If current exceeds the safe level for sufficient time, the fuse element opens and interrupts the circuit.

This helps protect the connected cable and equipment from damage caused by excessive current or short-circuit conditions.

Compatible ATC/ATO Blade Fuses

The holder is designed for standard ATC/ATO automotive blade fuses.

Common compatible fuse ratings can include:

• 1A
• 2A
• 3A
• 4A
• 5A
• 7.5A
• 10A
• 15A
• 20A
• 25A
• 30A
• 40A

The physical compatibility of a fuse does not automatically mean every fuse rating is suitable for every wire size.

Always match the fuse rating to:

• Wire gauge

• Circuit load

• System voltage

• Cable length

• Equipment requirements

Do not increase the fuse rating without confirming that the protected cable can safely carry the current.

How to Choose the Correct Wire Gauge

Wire gauge should be selected according to the expected circuit current, cable length and allowable voltage drop.

A thicker wire has a lower AWG number and can generally carry more current than a thinner wire.

For example, a 10 AWG configuration is suitable for higher-current applications than a 22 AWG configuration.

When selecting wire size, consider:

• Continuous operating current

• Maximum expected load

• Cable length

• Voltage drop

• Fuse rating

• Installation temperature

• Equipment manufacturer's requirements

The fuse rating should never exceed the safe current capacity of the protected wire.

Typical Applications

The ATC/ATO inline fuse holder can be used in a wide range of automotive and DC circuits, including:

• Cars

• Trucks

• RVs

• Motorcycles

• Boats

• Auxiliary lighting

• USB chargers

• Vehicle accessories

• Small DC equipment

• Battery-powered accessories

• Aftermarket electronics

It is especially useful when a circuit requires its own replaceable fuse but does not use an existing vehicle fuse box position.

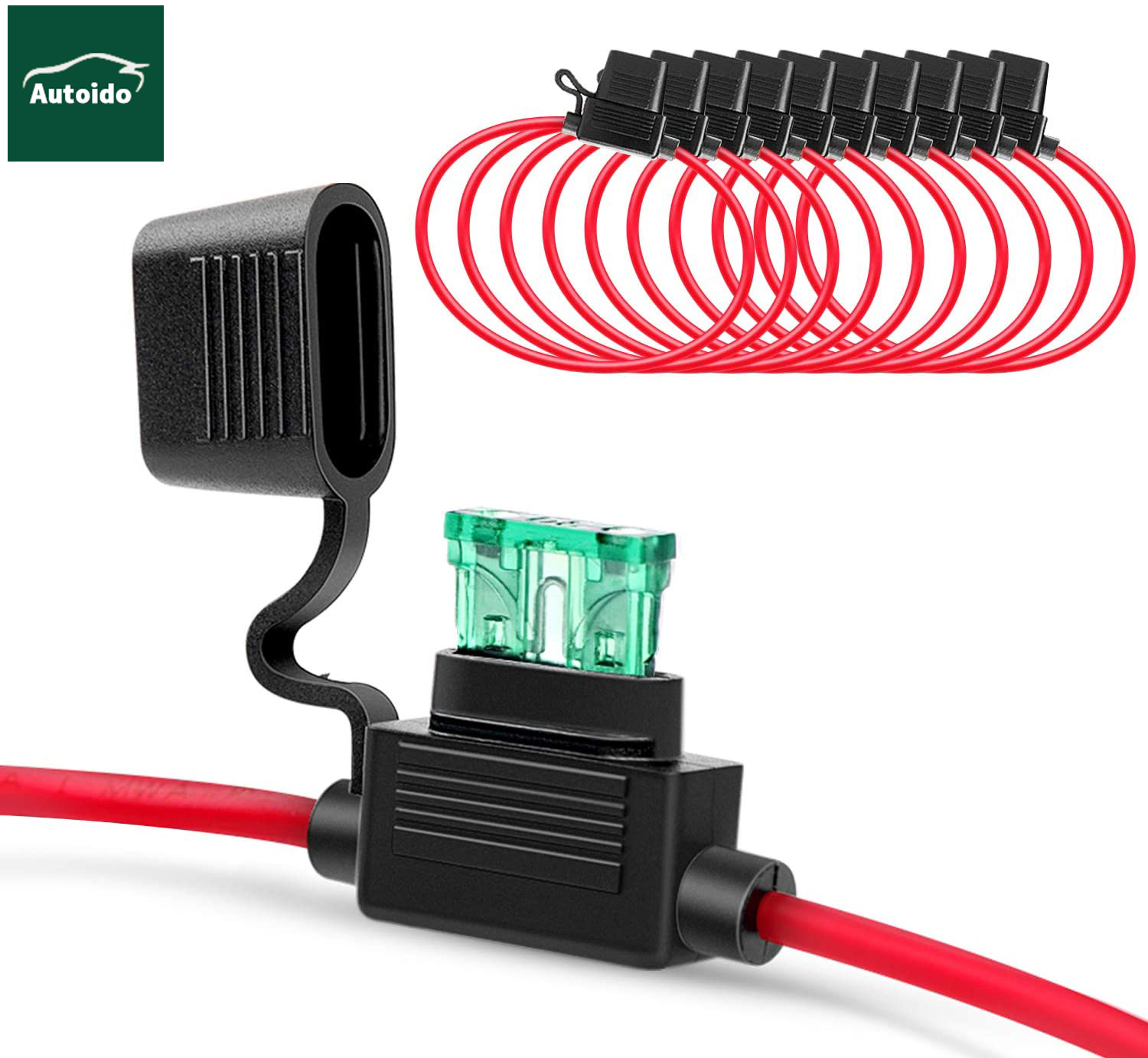

Weatherproof Cover and Construction

The protective cover helps shield the installed blade fuse and electrical connection from dust, splashes and accidental contact.

The insulated housing provides mechanical support and electrical isolation around the fuse and terminals.

For outdoor or marine installations, the holder should be installed in a location appropriate for the product's environmental protection level.

Unless a specific IP rating has been verified, the product should not be treated as suitable for continuous water immersion.

How to Install an Inline Fuse Holder

A typical installation process is:

1. Disconnect the power source.

2. Select the correct wire gauge.

3. Choose a suitable location close to the power source when required by the circuit design.

4. Cut the power cable at the desired fuse location.

5. Connect the inline fuse holder into the circuit.

6. Make sure all crimps or wire connections are secure.

7. Select the correct ATC/ATO fuse.

8. Insert the fuse fully into the holder.

9. Close the protective cover.

10. Restore power and test the circuit.

The fuse rating should be selected according to the protected cable and electrical load.

Inline Fuse Holder vs Fuse Tap

An inline fuse holder and a fuse tap both use automotive blade fuses, but they serve different purposes.

Choose an inline fuse holder when a circuit needs independent protection outside the vehicle fuse box.

Choose a fuse tap when power needs to be taken from an existing fuse box position.

Use an inline fuse holder when you need independent overcurrent protection for a new circuit. Use a fuse tap when you need to add an accessory circuit through an existing vehicle fuse box.

Wire, Terminal and Materials

Insulated Housing

The insulated housing protects the internal fuse and terminal structure and provides electrical isolation.

Tin-Plated Brass Terminals

Tin-plated brass terminals provide reliable electrical connection between the wire and blade fuse.

Automotive Wire

Different wire gauges can be supplied according to application requirements.

Wire gauge, cable length and terminal configuration can be customized for OEM projects.

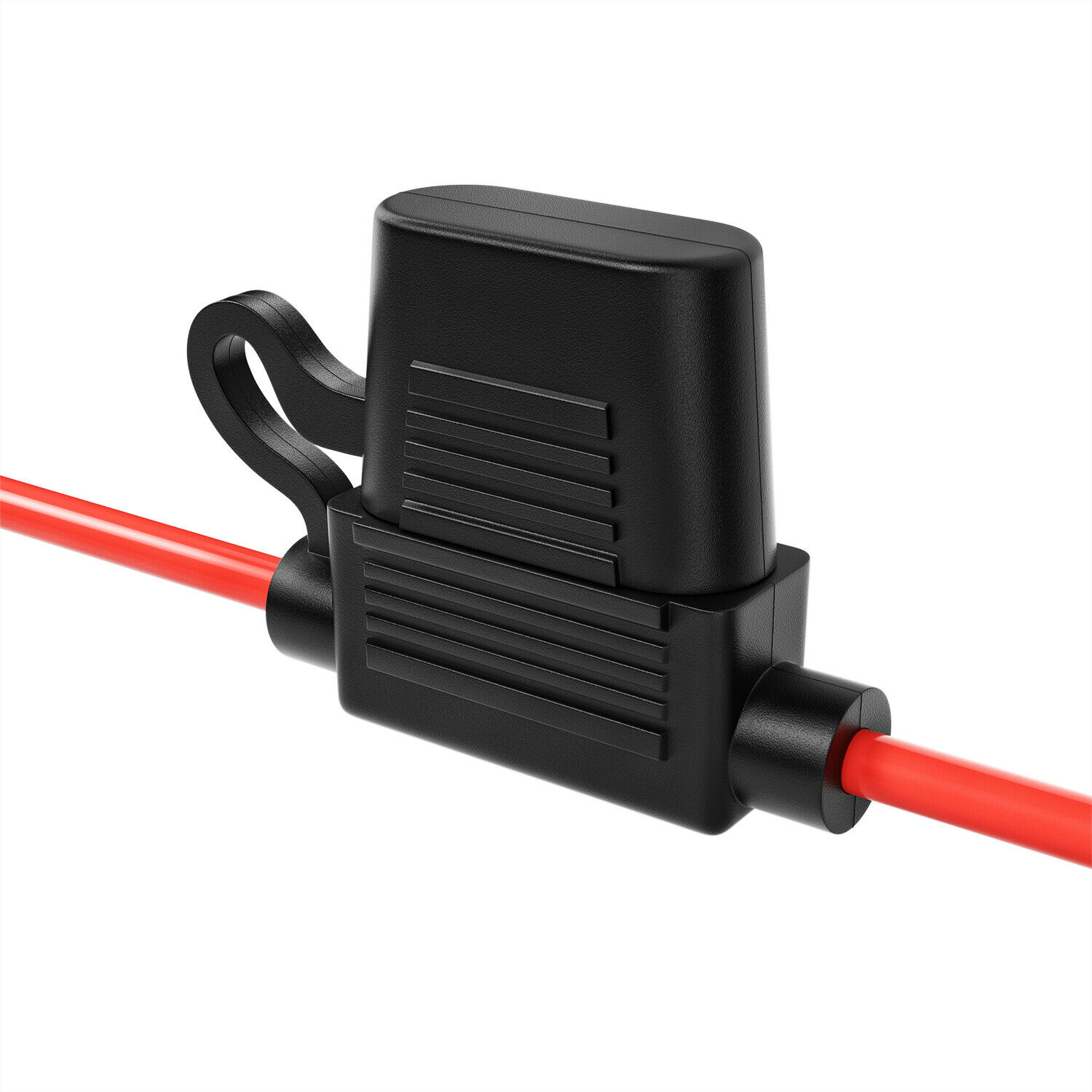

Protective Cover

The cover helps reduce exposure to dust, splash and accidental contact during normal installation.

Quality Control

Autoido applies inspection during fuse holder production and assembly.

Typical inspection items include:

• Housing dimensions

• Wire length

• Wire gauge

• Terminal positioning

• Crimp quality

• Electrical continuity

• Fuse insertion and retention

• Protective cover fit

• Product appearance

• Packaging inspection

Additional inspection requirements can be defined for OEM and customized projects.

OEM/ODM and Customization

Autoido supports OEM and ODM services for automotive inline fuse holders.

Customization options can include:

• Wire gauge

• Wire length

• Wire color

• Terminal type

• Stripping length

• Housing configuration

• Connector assembly

• Customer logo

• Product labeling

• Private-label packaging

• Retail packaging

• Bulk packaging

Customers can provide drawings, samples or technical specifications for project evaluation.

Why Choose Autoido

Autoido specializes in automotive fuses, fuse holders, fuse taps and other circuit protection products.

Our capabilities include:

• More than 20 years of fuse production and development experience

• In-house R&D support

• Product testing capability

• OEM and ODM services

• Wire and terminal customization

• Mold development

• Custom packaging

• Bulk production

• Technical support for B2B customers

Autoido supplies automotive circuit protection products for OEM, aftermarket, distributor and electrical accessory applications.

Frequently Asked Questions

What is an inline fuse holder?

An inline fuse holder is a fuse mounting device installed directly in a power cable.

It holds a replaceable fuse that protects the connected wire and electrical load from excessive current.

What fuse fits this holder?

This holder is designed for standard ATC/ATO automotive blade fuses.

Can this holder use both ATC and ATO fuses?

It is designed for standard ATC/ATO-size blade fuses. Always confirm the physical dimensions and electrical specifications of the selected fuse before installation.

What fuse ratings can be used?

Common ATC/ATO fuse ratings include 5A, 7.5A, 10A, 15A, 20A, 25A, 30A and 40A.

The correct fuse rating depends on the wire gauge and circuit requirements.

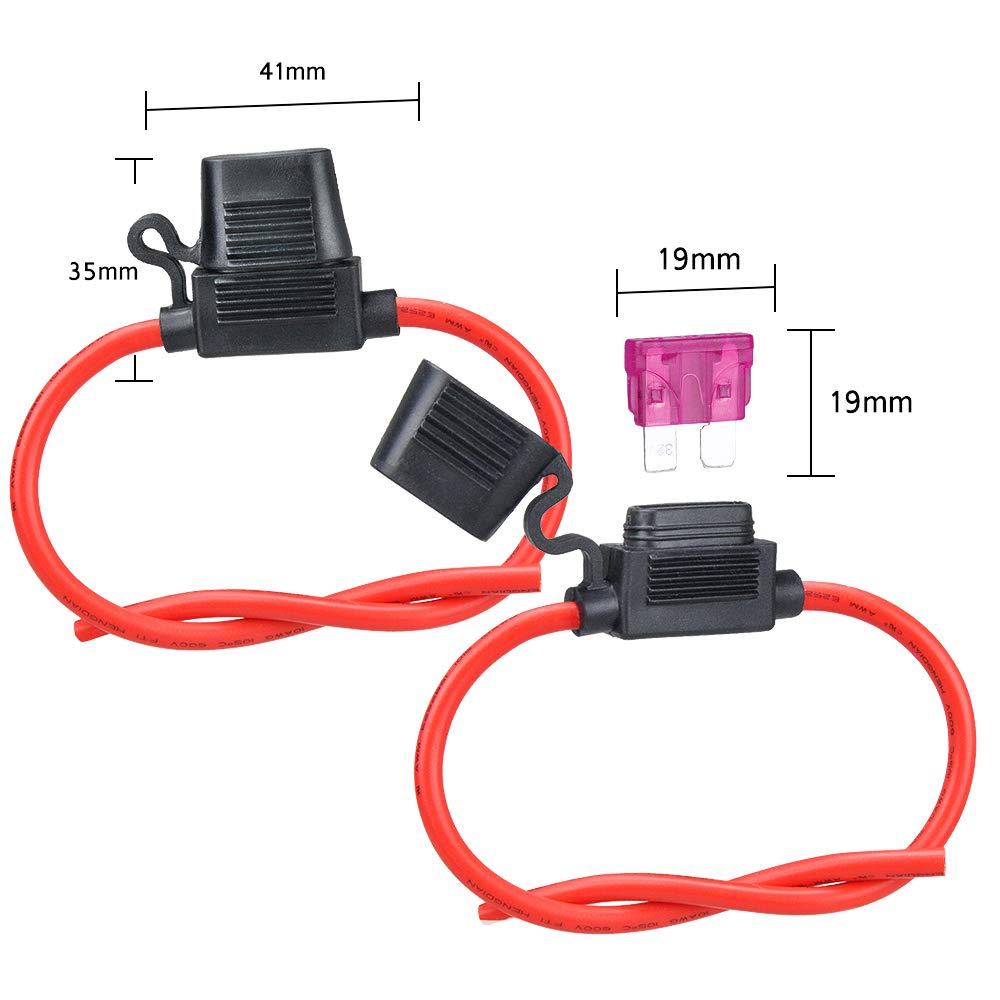

What wire gauges are available?

Wire options from 10 to 22 AWG can be supplied according to the required configuration.

How do I choose the correct wire gauge?

Select the wire gauge according to circuit current, cable length, voltage drop and fuse rating.

The fuse must not be rated higher than the safe current capacity of the protected wire.

Is this fuse holder waterproof?

The product uses a weatherproof protective cover to help protect the fuse from dust and splash.

If a specific waterproof or IP rating is required, it should be confirmed according to the selected product specification.

Can it be used in a 12V vehicle?

Yes. A 32V-rated fuse holder can generally be used in a 12V automotive system when the current, fuse and wire specifications are suitable for the circuit.

What is the difference between an inline fuse holder and a fuse tap?

An inline fuse holder is installed directly in a wire to protect an independent circuit.

A fuse tap uses an existing vehicle fuse box position to add an accessory circuit.

Can it be used for marine applications?

It can be used in suitable marine DC applications when the environmental conditions, wire size, fuse rating and protection level meet the installation requirements.

How is an inline fuse holder installed?

The holder is wired in series between the power source and electrical load, with the correct blade fuse installed inside the holder.

Can Autoido customize wire length and terminals?

Yes. Autoido supports customized wire gauge, cable length, terminal type and other wiring requirements.

Does Autoido provide OEM packaging?

Yes. Private-label, retail and bulk packaging options are available for OEM projects.
