AD185 1-Way MEGA Fuse Holder with Black Protective Cover

Product Overview

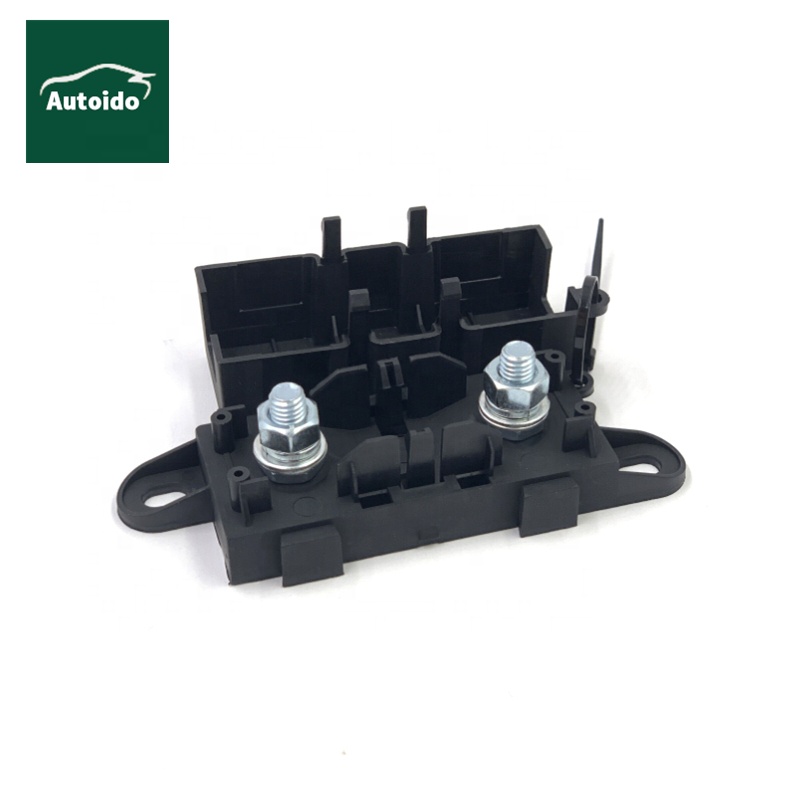

The Autoido AD185 is a 1-way MEGA fuse holder designed for compatible MEGA/ANM bolt-down fuses in 32V DC automotive and low-voltage electrical systems.

It features a black protective cover, M8 threaded studs, locking hardware and a modular side-interlocking structure for secure installation and flexible multi-holder configurations.

The AD185 is suitable for battery protection, alternator charging circuits, DC power distribution, inverters, car audio systems, RV electrical systems and other heavy-gauge cable applications.

Autoido supports bulk supply, OEM/ODM production, custom branding and customized packaging for automotive and industrial circuit-protection projects.

How Does the AD185 MEGA Fuse Holder Work?

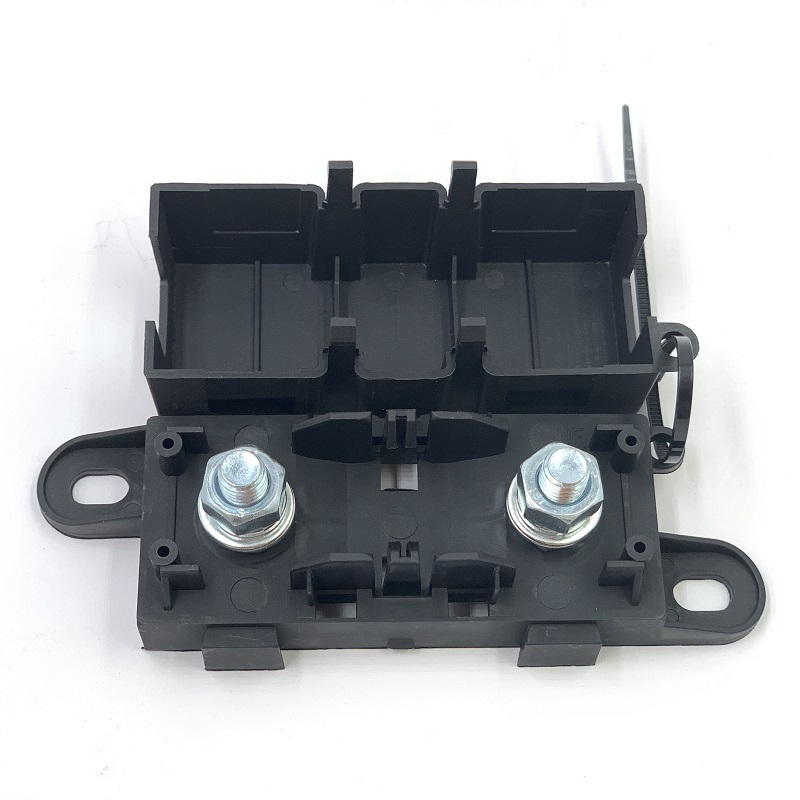

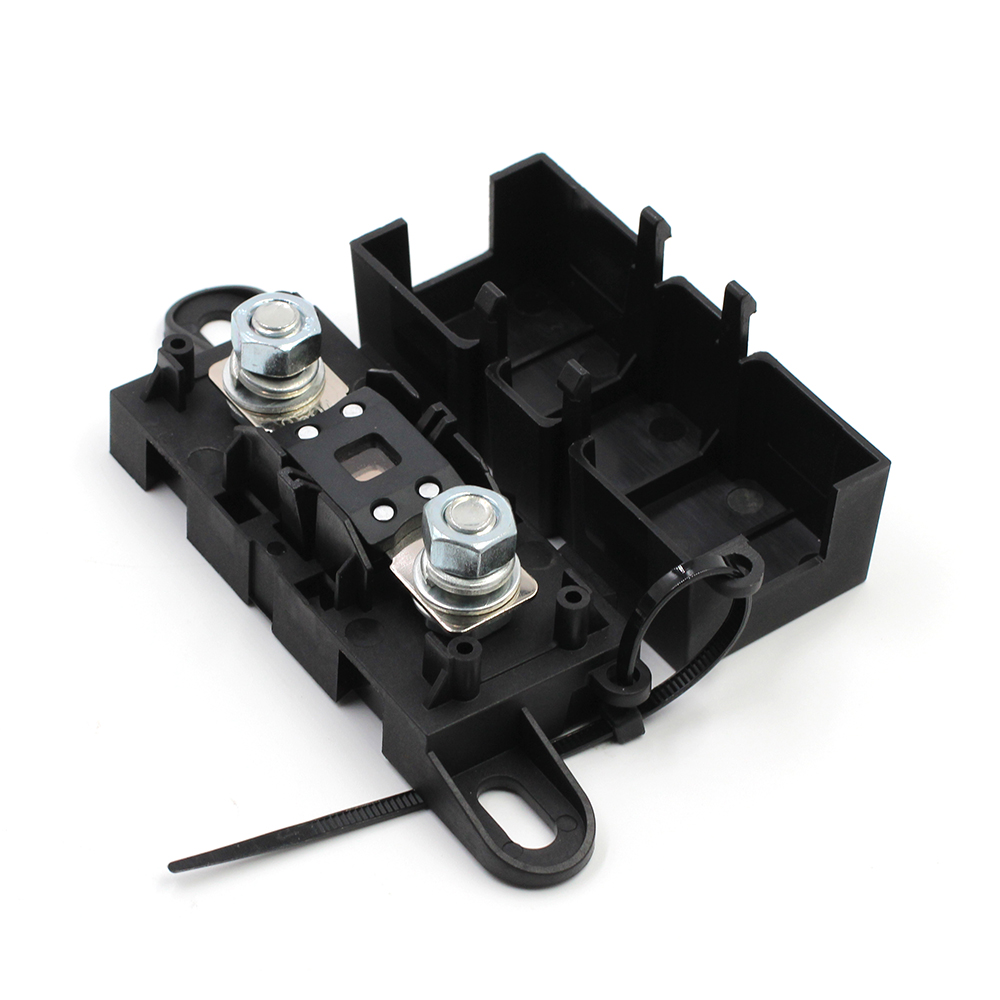

A compatible MEGA fuse is installed across the two M8 threaded studs. One stud connects to the power source, while the other connects to the protected cable or electrical equipment.

During normal operation, current passes through the fuse. If an overcurrent condition exceeds the fuse’s time-current characteristics, the fuse element opens the circuit and helps protect the downstream cable and equipment.

The fuse holder provides mechanical support and electrical connection. The installed MEGA fuse provides the overcurrent protection.

Compatible MEGA Bolt-Down Fuses

The AD185 is designed for compatible MEGA/ANM-format bolt-down fuses.

Autoido supplies MEGA bolt-down fuses from 40A to 500A. The correct fuse must be selected according to the electrical system and the holder’s validated capability.

Before ordering, confirm:

• Fuse body dimensions

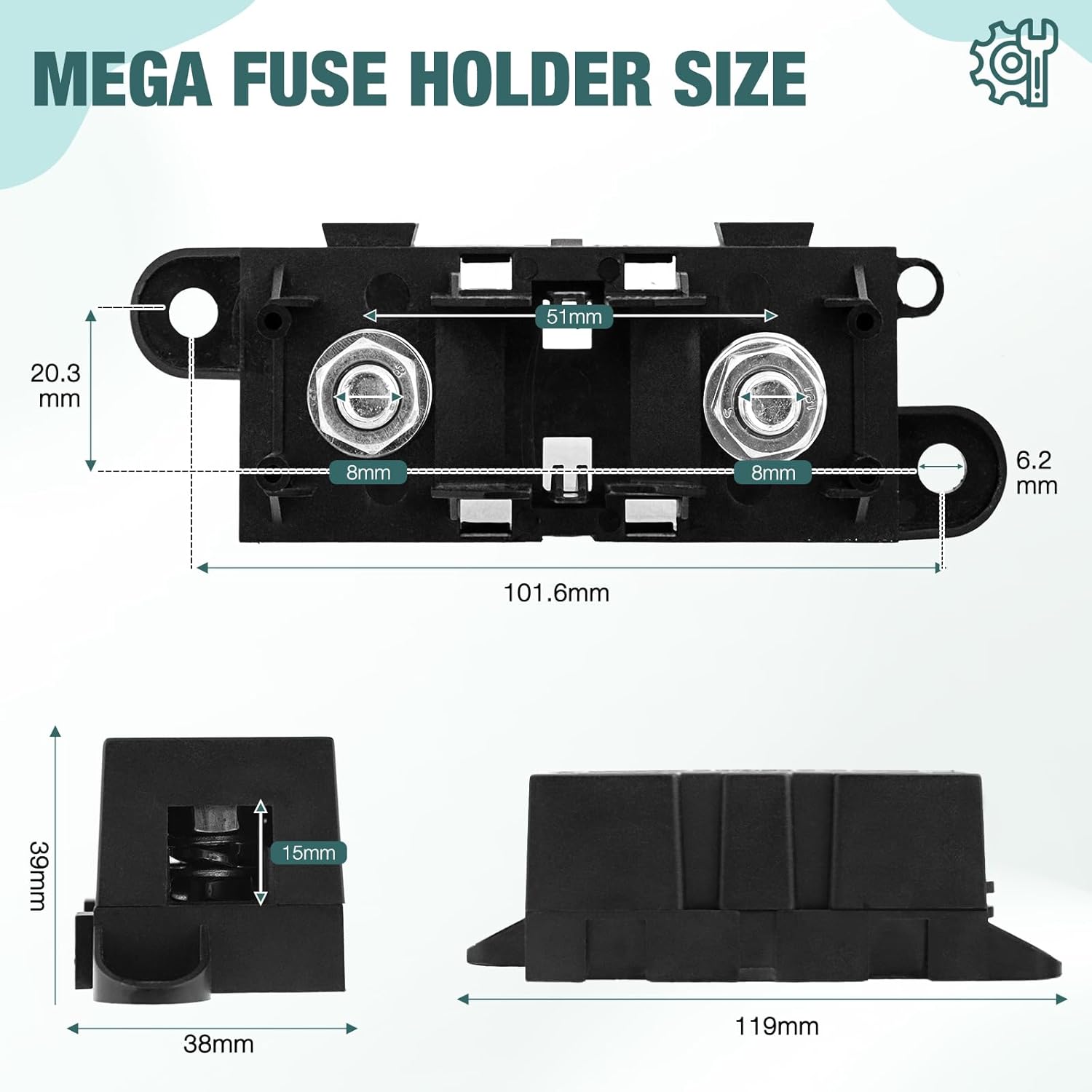

• Mounting-hole spacing

• Rated current

• Rated voltage

• Interrupting capacity

• Time-current characteristics

• Cable size

• Cable-lug dimensions

• Ambient temperature

• Required installation torque

MEGA, MIDI and ANL fuses use different physical formats and should not be treated as interchangeable.

Does a 40A–500A Fuse Range Mean the Holder Is Rated for 500A?

No. A compatible fuse range and the continuous-current rating of a fuse holder are not necessarily the same.

The holder’s actual current-carrying capability depends on:

• Stud and hardware materials

• Contact resistance

• Fuse construction

• Cable size

• Cable-lug quality

• Installation torque

• Ambient temperature

• Ventilation

• Temperature rise

• Allowable voltage drop

A 500A claim should only be published when the complete holder assembly has been validated under clearly stated test conditions.

AD185 Black-Cover Holder vs AD184-B Clear-Cover Holder

Choose the AD185 when a black enclosed appearance is preferred. Choose the AD184-B MEGA fuse holder with clear cover when visual inspection without removing the cover is important.

Both models require confirmation of fuse dimensions, electrical ratings and installation conditions.

Installation Guide

1. Disconnect the battery or isolate the power source.

2. Confirm that the system voltage does not exceed 32V DC.

3. Select a compatible MEGA fuse for the cable and protected circuit.

4. Mount the holder securely on a stable surface.

5. Connect correctly sized cable lugs to the M8 studs.

6. Install the MEGA fuse between the two studs.

7. Fit the washers and nuts in the specified order.

8. Tighten the connections to the validated torque value.

9. Install the black protective cover.

10. Check the wiring and connection security before restoring power.

11. Inspect the holder for abnormal temperature rise after initial operation.

The holder should be installed as close to the power source as permitted by the system design. Protect cables from sharp edges, vibration, excessive heat and moisture.

Installation should be performed according to the vehicle or equipment manufacturer’s electrical requirements.

MEGA Fuse Holder Applications

MEGA vs MIDI vs ANL Fuse Holders

A MIDI fuse holder may be more suitable when installation space is limited. An ANL fuse holder may be considered for compatible audio, marine and aftermarket systems.

Read MIDI Fuse vs MEGA Fuse: Key Differences Explained for additional selection guidance.

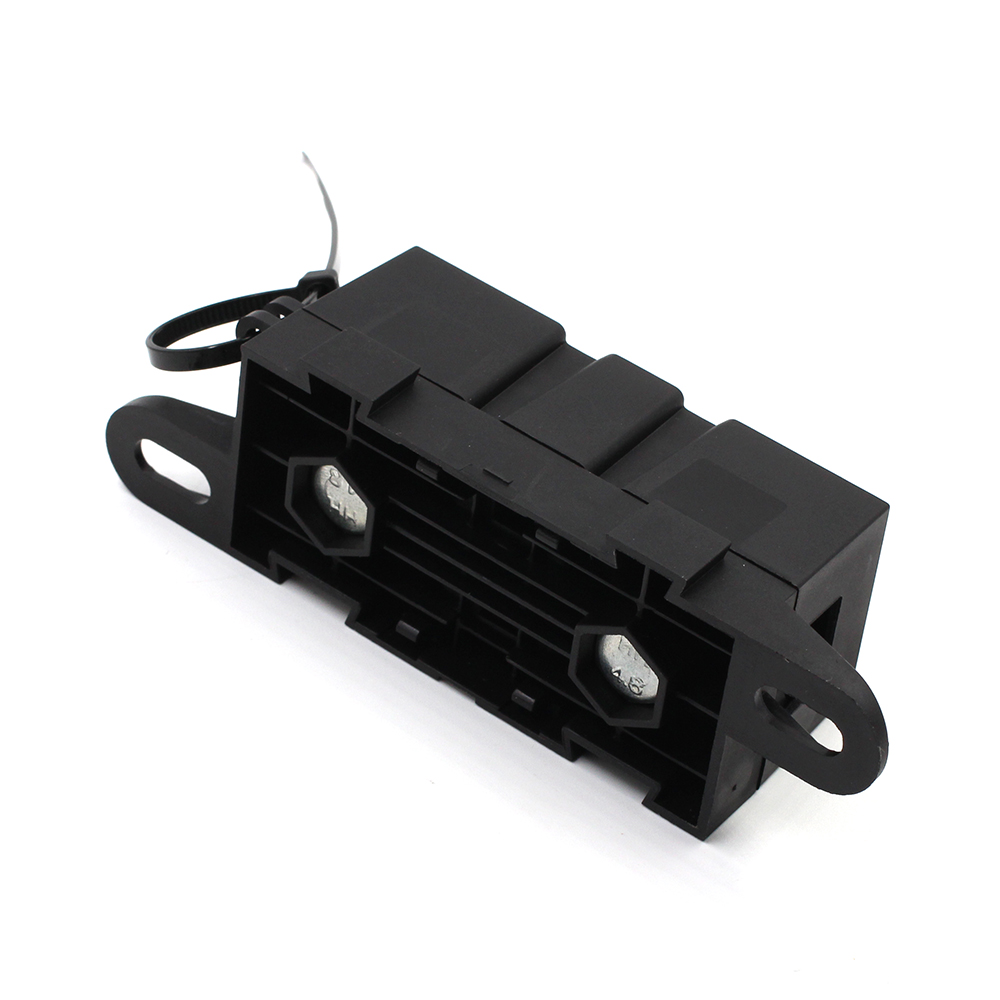

Materials and Construction

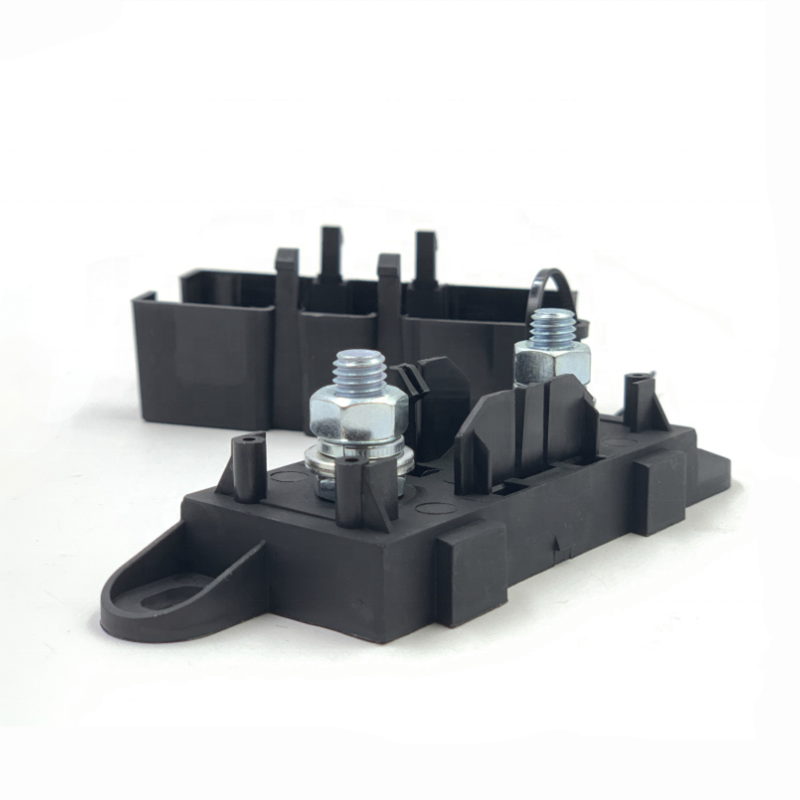

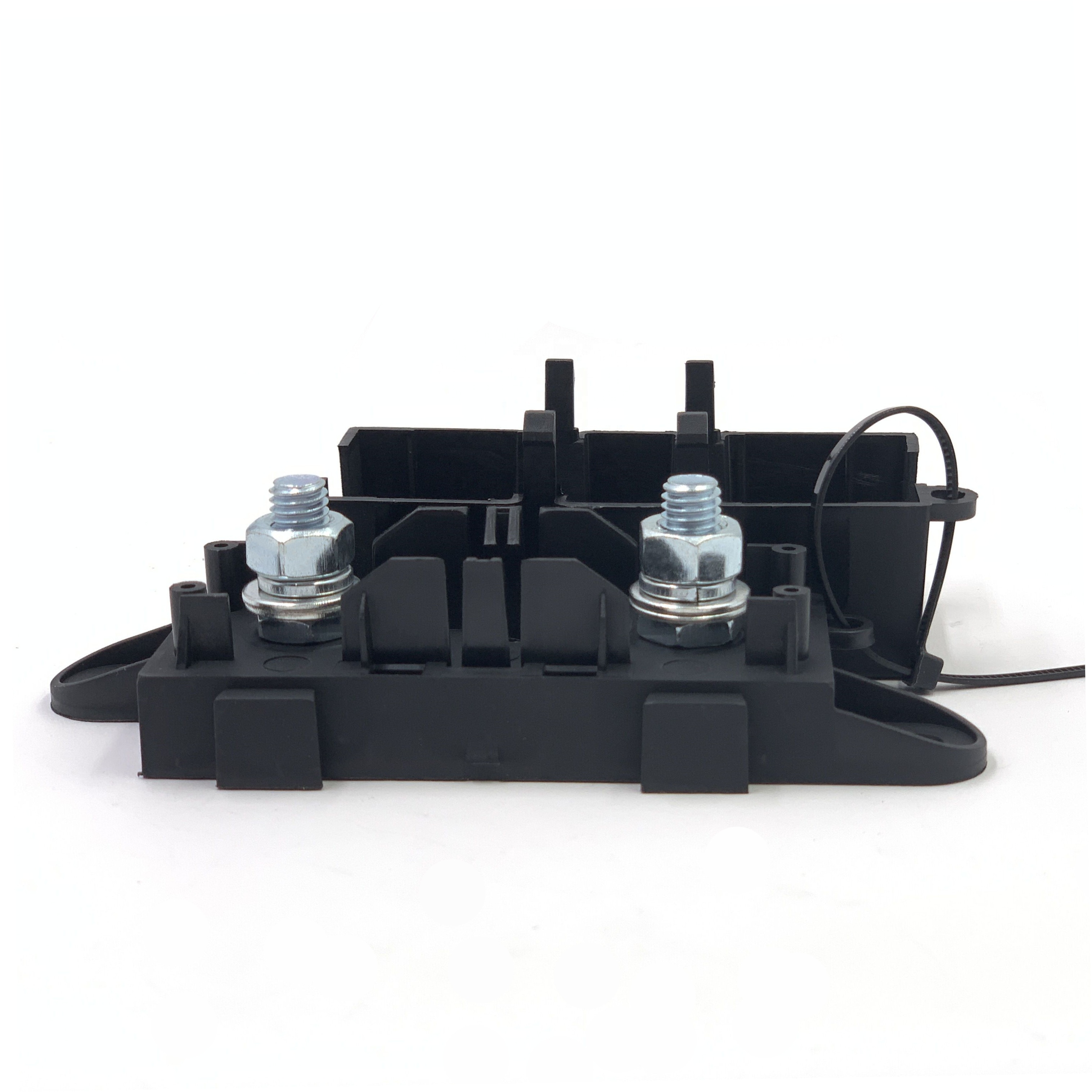

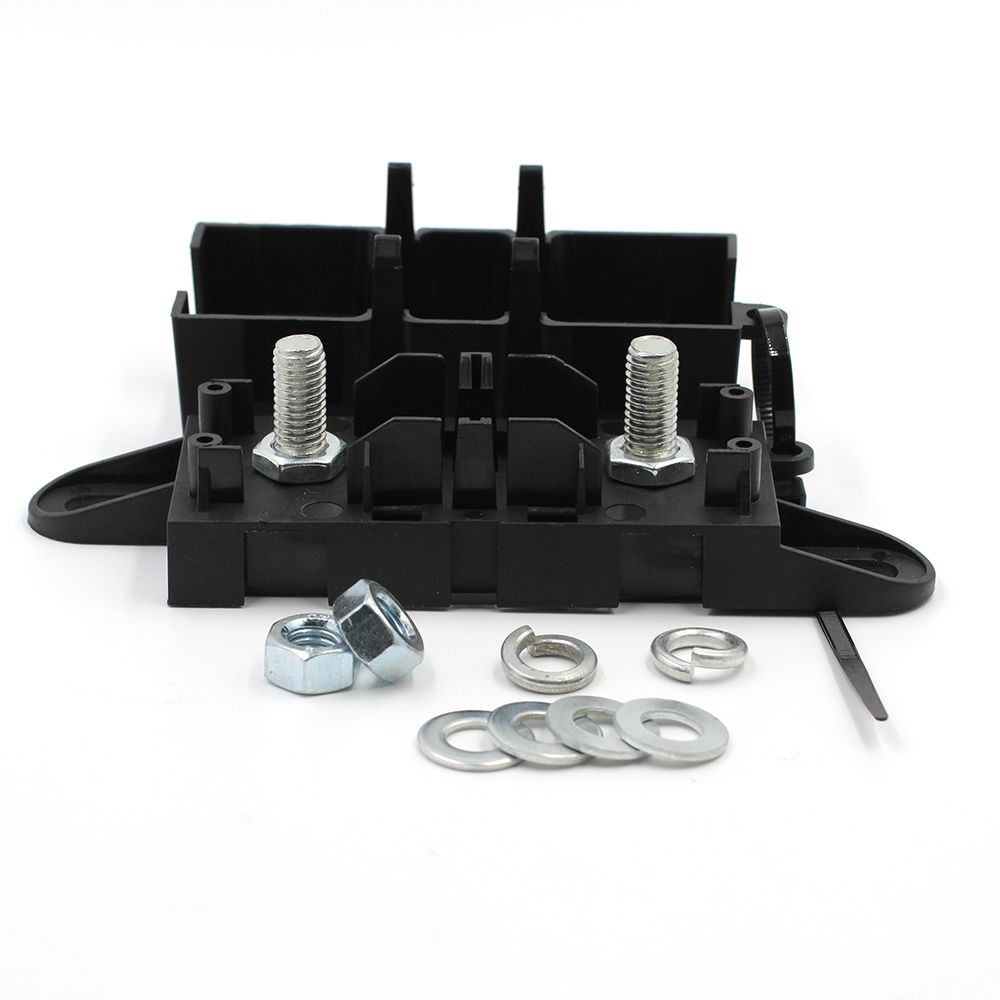

The AD185 consists of an insulating fuse-holder body, a black protective cover, M8 threaded studs, hex nuts and lock washers.

The housing supports the fuse and separates the energized connection points from the mounting surface. The protective cover helps reduce accidental contact with the fuse and terminal hardware.

The exact housing resin, stud material, hardware material, plating, flame-retardant rating and operating-temperature range should be confirmed in the part-number datasheet.

Quality Control

Depending on the order and project requirements, inspection and validation can include:

• Visual inspection

• Dimensional inspection

• MEGA fuse fit check

• Cover fit and retention test

• Thread and hardware inspection

• Fastener torque test

• Connection-resistance test

• Voltage-drop test

• Temperature-rise test

• Insulation-resistance test

• Vibration and connection-loosening evaluation

• Packaging inspection

Only tests actually performed for the AD185 should be shown in the final technical documentation.

Is the AD185 Waterproof?

The black cover helps protect the fuse and terminals from accidental contact and external contamination.

However, a protective cover does not automatically make the complete holder waterproof. The product should only be described as waterproof when it has passed an applicable ingress-protection test and has a verified IP rating.

If no IP rating is available, install the holder in a dry or otherwise protected location.

OEM/ODM Options

Autoido supports OEM and ODM requirements, including:

• Custom logo and product marking

• Housing and cover color options

• Hardware and plating options

• MEGA fuse and holder kits

• Custom packaging

• Barcode and private-label packaging

• Multi-holder configurations

• Inspection and testing requirements

• Bulk orders

For an accurate quotation, provide the system voltage, continuous load current, fuse rating, cable size, installation environment, quantity and packaging requirements.

Why Choose Autoido

Dongguan Andu Electronic Co., Ltd. has more than 20 years of experience in automotive fuse and circuit-protection product development and manufacturing.

Our capabilities include:

• Automotive fuse and fuse-holder manufacturing

• In-house product and mold development

• Automated production equipment

• Laboratory and inspection capabilities

• OEM/ODM project support

• Custom packaging and branding

• Fuse and holder combination supply

• Technical support for product selection

Certification and test claims should be confirmed at the exact part-number level.

Related Products and Technical Guides

• MEGA Fuse 40A–500A

• AD184-B MEGA Fuse Holder with Clear Cover

• MIDI Fuse Holders

• ANL Fuse Holders

• Automotive Power Distribution Blocks

• How to Choose a Fuse Holder for Automotive Wiring

• MIDI Fuse vs MEGA Fuse

• How to Choose the Right Automotive Fuse

Frequently Asked Questions

What fuse does the AD185 holder use?

It is designed for compatible MEGA/ANM-format bolt-down fuses. Confirm the fuse dimensions and mounting-hole spacing before ordering.

Does the fuse holder include a MEGA fuse?

The MEGA fuse can be supplied separately or packaged with the holder. Specify the required current and voltage rating when requesting a quotation.

Can the AD185 be used in a 12V or 24V system?

A 32V-rated holder may be used in compatible 12V or 24V DC systems when all current, temperature, fault-current and installation requirements are satisfied.

Is the AD185 rated for 500A continuously?

The page’s compatible fuse range should not automatically be interpreted as the continuous-current rating of the holder. Contact Autoido for validated temperature-rise and voltage-drop data for the intended configuration.

What size connection studs does it use?

The AD185 uses M8 threaded studs. Select ring terminals that match both the M8 studs and the cable conductor size.

Is the AD185 waterproof?

Do not describe it as waterproof unless the complete holder has a verified IP rating or applicable ingress-protection test report.

What is the difference between AD185 and AD184-B?

The AD185 uses a black protective cover, while the AD184-B uses a transparent cover that permits visual fuse inspection. Confirm other specifications using the individual datasheets.

Can several AD185 holders be connected together?

The side-interlocking structure allows compatible holders to be arranged together. Each circuit still requires its own correctly selected fuse and cable.

Are MEGA and MIDI fuses interchangeable?

No. MEGA and MIDI fuses have different dimensions and mounting arrangements. Use only the fuse format specified for the holder.

Where should the holder be installed?

Install it close to the power source where permitted by the electrical design, on a secure surface protected from excessive heat, vibration and moisture.

What is a 1-way MEGA fuse holder?

A 1-way MEGA fuse holder is designed to mount one compatible MEGA or ANM bolt-down fuse in a DC electrical circuit. The Autoido AD185 uses M8 threaded studs and includes a black protective cover for secure installation.

What fuse ratings are compatible with the AD185 MEGA fuse holder?

The AD185 is designed for compatible MEGA/ANM bolt-down fuses from 40A to 500A. The compatible fuse rating should be selected according to the protected cable, electrical load, system voltage and validated holder capability.

Does the AD185 MEGA fuse holder support multiple holders?

Yes. The AD185 features a side-interlocking structure that allows compatible holders to be arranged together. Each circuit should use the correct fuse and cable according to the electrical system requirements.

What is the difference between a MEGA fuse holder and an ANL fuse holder?

MEGA and ANL fuse holders are designed for different fuse formats and mounting configurations. The AD185 is designed specifically for compatible MEGA/ANM bolt-down fuses and should not be used with ANL fuses unless the holder is specifically designed for that fuse format.

Related Products

MEGA Bolt-Down Fuses
