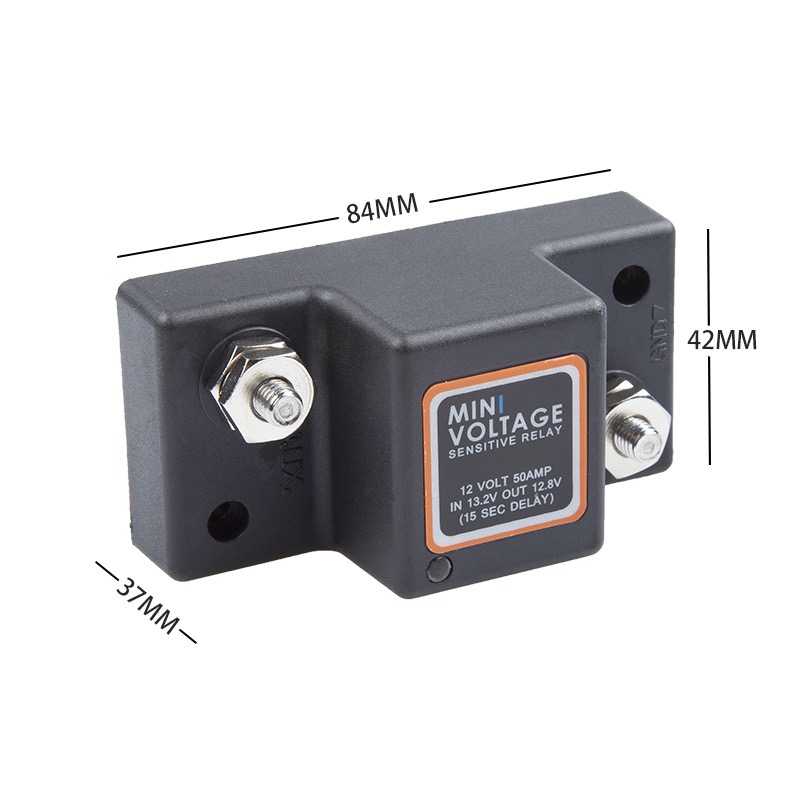

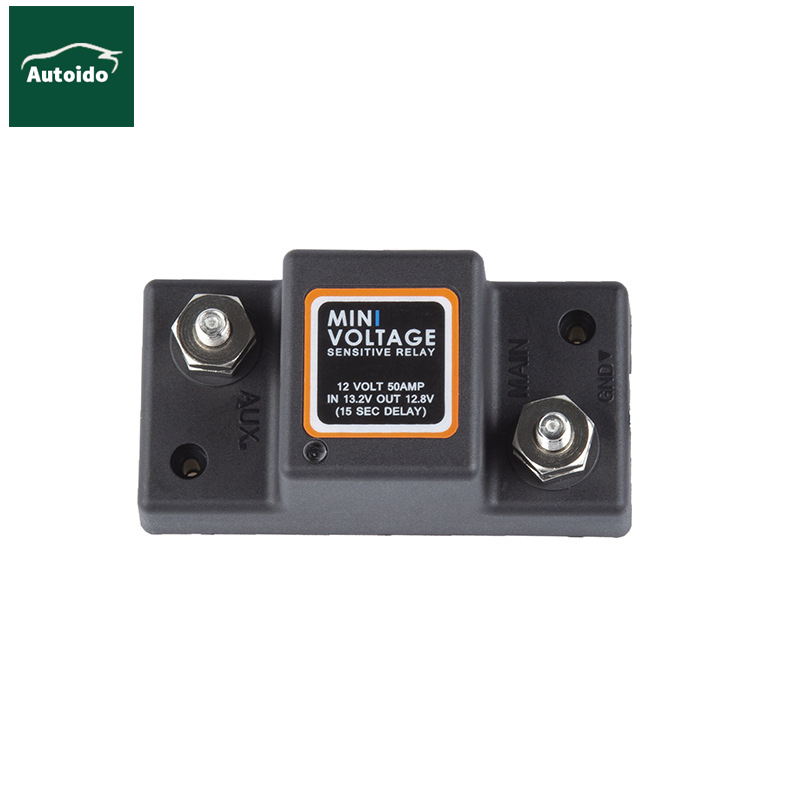

Dual Battery Isolator 12V 50Amp MINI Voltage Sensitive Relay Fit for ATV Motorcycle Voltage Sensitive Relay VSR1

2 year ago

6 0 

Dongguan Andu Electronic Co., Ltd.

2 year

Product details

Product Description

About this item

Voltage sensitive relay (VSR)/automotive relay automatic charging relays

12V voltage sensitive relay Battery Isolator Switch

Maximum operating current 50A at 12V continuous load.

70A peak current at 12V for 15 seconds
The maximum operating current is 50A

This battery isolators are small and suitable for almost anywhere, for ATV, UTV, Boats, RV's，marine vehicle, truck, caravan.

After the engine runs for 15 seconds, the VSR starts when the starter battery reaches 13.2 volts, and the LED lights up. After shutting down the vehicle, the system will disconnect both batteries when it reaches 12.8 volts after 15 seconds, allowing your main battery to restart safely.

Lightweight and designed for load fluctuations in utv or motorcycle stators. The maximum operating current is 50A at 12V continuous load, and the peak current at 12V is 70A for 15 seconds.

About this item

【Vehicle Compatibility】——This battery isolators are small and suitable for almost anywhere, for ATV/UTV,Honda Pioneer 1000,SxS,Polaris Ranger,Polaris RZR

【UTV Design】——Specifically designed for load fluctuations of utv or motorcycle stators, the huge difference outside of function compared to other isolators is size and weight. It can be installed in a very small space and is very light

【Working Voltage】——Voltage Sensitive Relay (VSR) cuts in at 13.2 volts and cuts out at 12.8 volts to ensure your primary battery is always charged and ready to run your vehicle

【Function】——With the engine running the VSR will engage after 15 seconds when the starting battery reaches 13.2 volts and the LED light will illuminate. This means that both batteries are now linked and the system is working. Once you turn off your vehicle the system will disengage the two batteries as it reached 12.8 volts after 15 seconds, leaving your main battery safe to start again

Detailed Images

Voltage	DC 12V
Current consumption	150mA/standby <1.5mA
Cut-in voltage	13.2V DC
Cutoff voltage	12.8V DC
Cut-in delay	15 seconds
Protection class	IP65
