| Catalog No. | Ampere Rating | Voltage Rating | Color |
| ADMIC-5 | 5A | 32V | Orange |
| ADMIC-7.5 | 7.5A | 32V | Tan |
| ADMIC-10 | 10A | 32V | Red |
| ADMIC-15 | 15A | 32V | Blue |
| ADMIC-20 | 20A | 32V | Yellow |
| ADMIC-25 | 25A | 32V | Natural |
| ADMIC-30 | 30A | 32V | Green |
Nylon Micro2 Blade Fuses Fuse 32V 5-30A For Auto Car Truck1
4 year ago
Product details
32V Micro2 Automotive Blade Fuse
The Autoido Micro2 automotive blade fuse is a 32V DC circuit protection device designed for compatible automotive electrical systems. It is available in 5A to 30A ratings and features a durable nylon housing with zinc alloy terminals.
What Is a 32V Micro2 Blade Fuse?
A 32V Micro2 blade fuse is a compact automotive fuse designed to interrupt excessive current in compatible 32V DC electrical circuits. It helps protect vehicle wiring and electrical components from damage caused by overcurrent or short-circuit conditions.
Product Description
The Autoido Micro2 blade fuse is a 32V automotive fuse designed to provide overcurrent protection for compatible vehicle electrical circuits. Its compact Micro2 format is suitable for applications where a smaller blade fuse is required.
The fuse features a nylon housing and zinc alloy terminals. Available current ratings include 5A, 7.5A, 10A, 15A, 20A, 25A and 30A, allowing customers to select the appropriate fuse rating according to the original vehicle or equipment specification.
The specified breaking capacity is 1000A at 32V DC, with an operating temperature range of -40°C to +200°C.
|
Fuse Type
|
Micro2 Blade Fuse
|
|
Terminal Material
|
Zinc alloy terminals
|
|
Housing Material
|
Nylon
|
|
Breaking Capacity
|
1000A @ 32V DC
|
|
Voltage Ratting
|
32VDC
|
|
Operating Temp Range
|
-40℃~200℃
|
|
Package
|
1000pcs/bag
|
This MICRO2 blade fuse can be used with compatible MICRO2 fuse taps and fuse holders for automotive circuit expansion and protection.
Key Features
- Compact MICRO2 design for space-saving automotive fuse boxes
- Available from 5A to 30A
- 32V DC voltage rating
- Zinc alloy terminals
- Heat-resistant nylon housing
- Color-coded housing for easy amp identification
- Suitable for automotive overcurrent protection
- OEM/ODM and custom packaging available

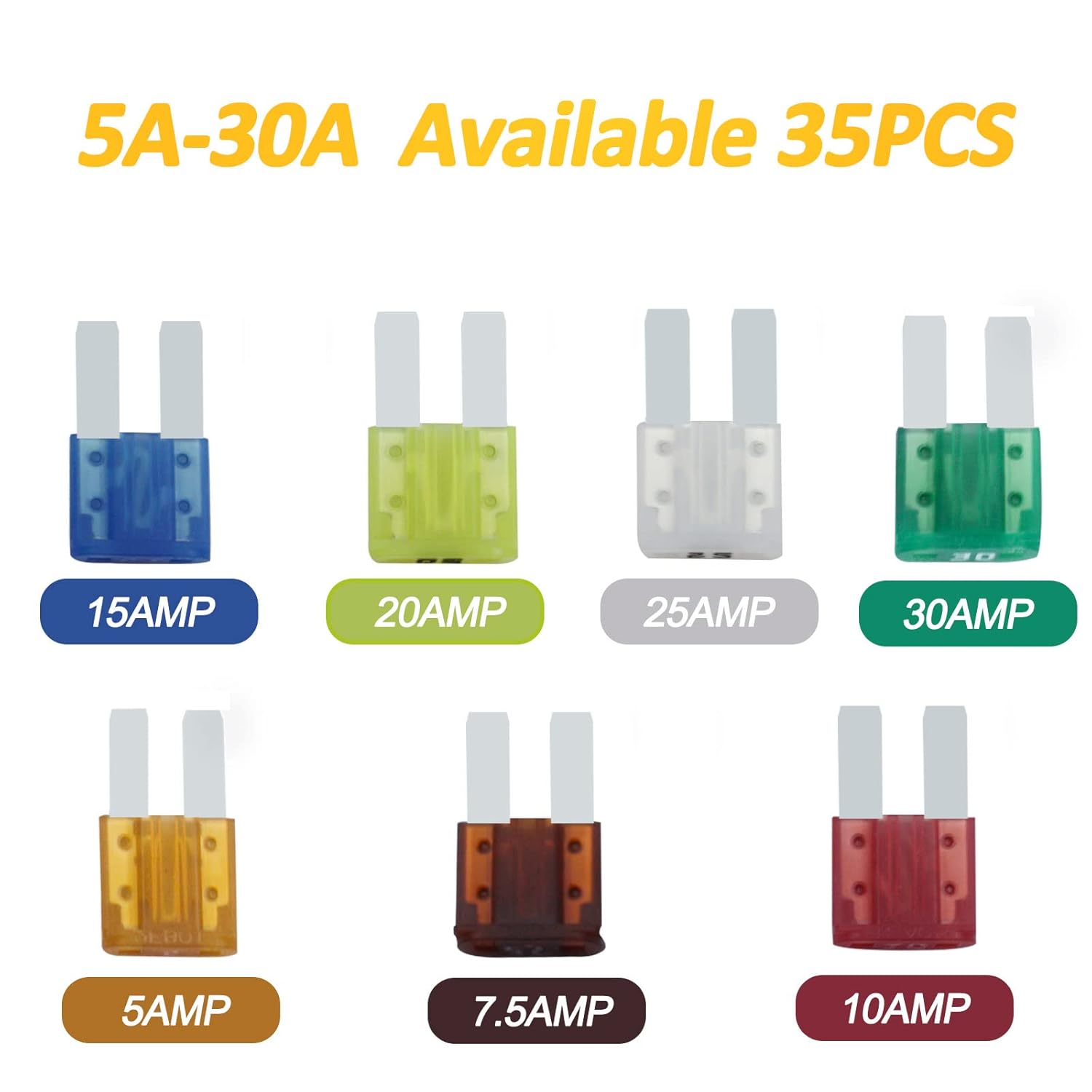

Autoido's Micro2 blade fuses are available in seven current ratings from 5A to 30A. Each fuse is rated for 32V DC and is identified by its corresponding catalog number and color.

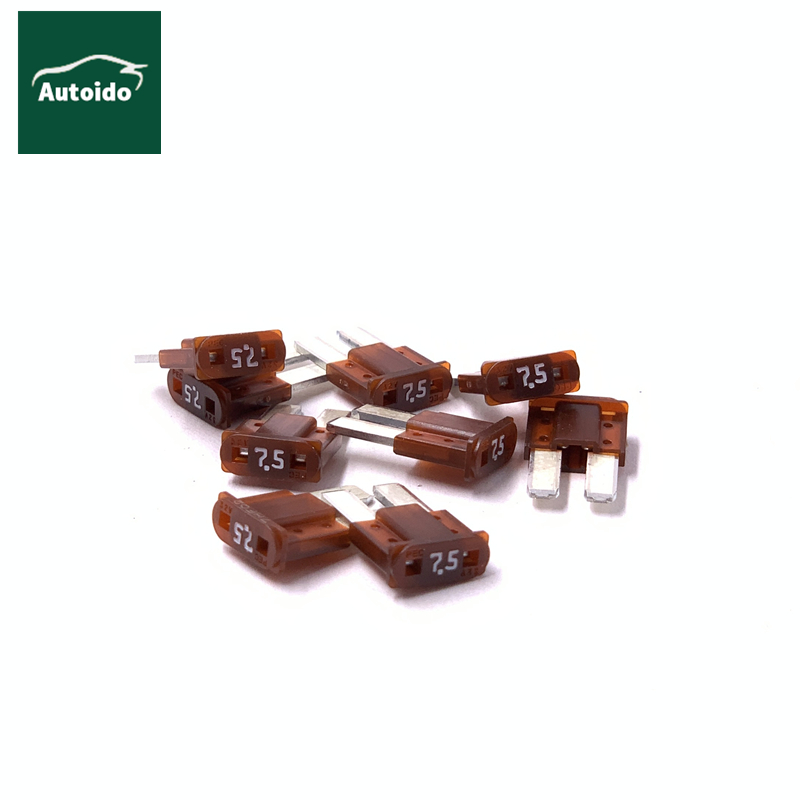

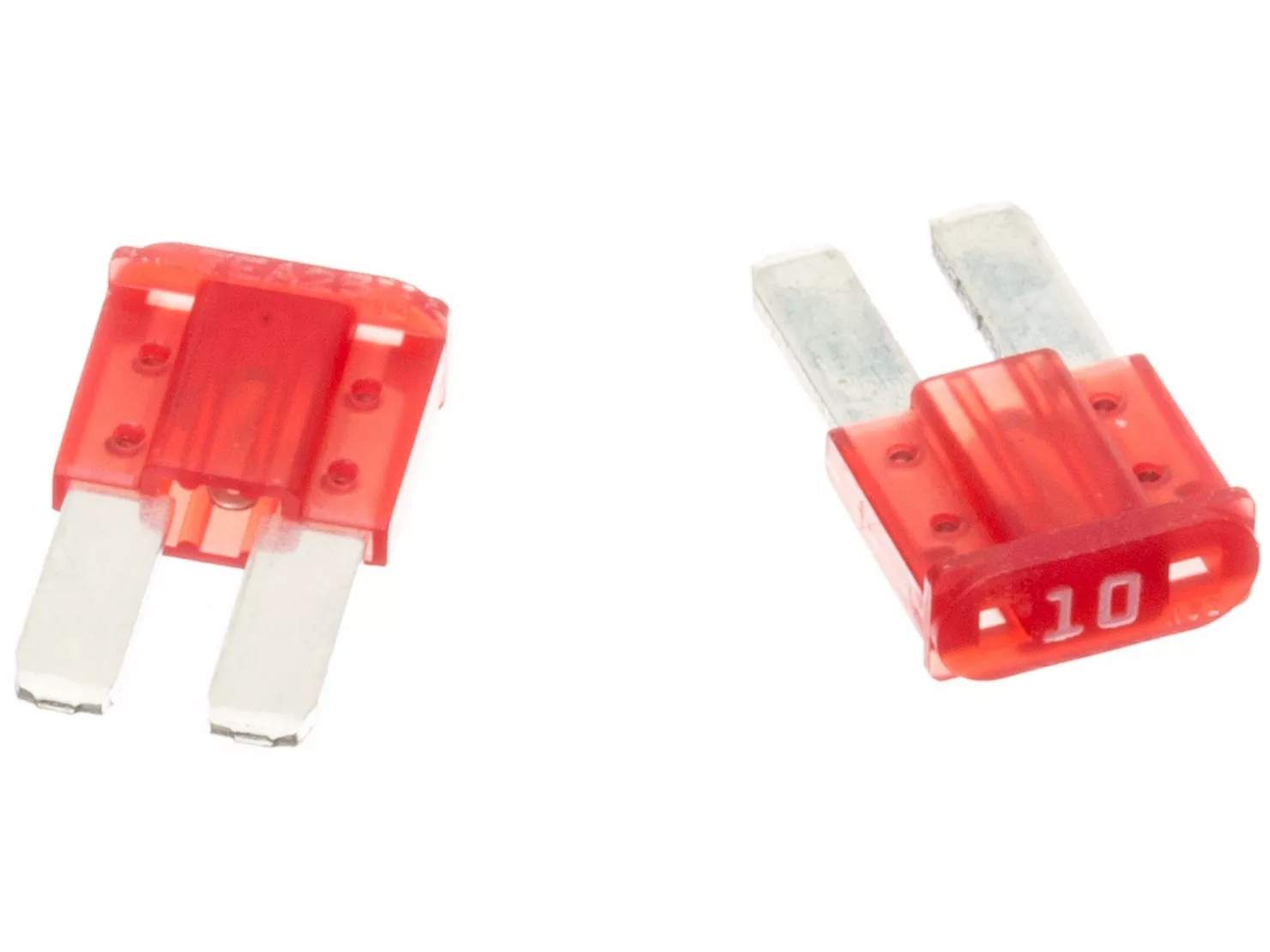

Detailed Images
Typical Applications
- Cars and passenger vehicles
- Trucks and commercial vehicles
- RV electrical systems
- Automotive fuse boxes
- Accessory circuits
- Lighting circuits
- Electronic control circuits
- Aftermarket automotive wiring
|
Feature
|
MICRO2 | MINI |
|---|---|---|
| Size | Smaller | Larger |
| Space Requirement | Lower | Higher |
| Typical Use | Modern compact fuse boxes | Wider automotive use |
| Interchangeable? | No |
No
|
MICRO2 and MINI fuses are different physical sizes and should not be considered directly interchangeable even when they have the same amp rating.
How to Choose the Correct Micro2 Fuse?
To choose the correct Micro2 fuse, confirm the fuse format, voltage rating and current rating specified by the vehicle or equipment manufacturer.
1. Check the fuse type
Make sure the vehicle uses a Micro2 blade fuse, not a MINI, Micro, Micro3 or Standard ATO/ATC fuse.
2. Check the voltage rating
This product is rated at: 32V DC
3. Match the amp rating
Available ratings: 5A / 7.5A / 10A / 15A / 20A / 25A / 30A
4. Never increase the fuse rating without authorization
Always replace a blown fuse with the same current rating unless the vehicle or equipment manufacturer specifies otherwise.
FAQ
What is a MICRO2 fuse?
A MICRO2 fuse is a compact automotive blade fuse designed to protect low-voltage electrical circuits from overloads and short circuits. It is smaller than a standard MINI fuse, making it suitable for modern vehicles and fuse boxes where installation space is limited.
What is the difference between MICRO2 and MINI fuses?
The main difference is size and terminal design. MICRO2 fuses are smaller and more compact than MINI fuses, allowing them to fit into tighter automotive fuse boxes. Although both types may offer similar amp ratings, they have different physical dimensions and should only be used with compatible fuse holders or fuse boxes.
What amp ratings are available for MICRO2 fuses?
Autoido MICRO2 blade fuses are available in multiple current ratings, including 5A, 7.5A, 10A, 15A, 20A, 25A, and 30A. Different amp ratings are identified by standardized fuse colors to help users select the correct fuse quickly.
What do MICRO2 fuse colors mean?
MICRO2 fuse colors indicate the current rating of the fuse. Common examples include 5A tan, 7.5A brown, 10A red, 15A blue, 20A yellow, 25A natural or clear, and 30A green. Always check the printed amp rating and vehicle specifications before replacing a fuse.
Can a 32V MICRO2 fuse be used in a 12V vehicle?
Yes. A 32V-rated MICRO2 fuse can be used in a 12V automotive electrical system because the voltage rating represents the maximum system voltage the fuse is designed to safely interrupt. The fuse amp rating must still match the requirements of the protected circuit.
Are MICRO2 and MINI fuses interchangeable?
No. MICRO2 and MINI fuses are different in physical size and terminal configuration, so they are not directly interchangeable. Even if two fuses have the same amp rating, the replacement fuse must match the original fuse type, dimensions, voltage rating, and current rating.
What is the interrupting rating of this MICRO2 fuse?
The interrupting rating, also called breaking capacity, is the maximum fault current that the fuse can safely interrupt at its rated voltage. This Autoido MICRO2 fuse has an interrupting rating of up to 1000A at 32V DC, providing protection during high-current short-circuit conditions.
Can Autoido provide custom MICRO2 fuse packaging?
Yes for sure.
Why Choose Autoido for 32V Micro2 Automotive Blade Fuses?
Autoido is a professional automotive fuse manufacturer providing 32V Micro2 blade fuses for compatible automotive and DC electrical applications. The Micro2 fuse is available in multiple current ratings from 5A to 30A and uses a nylon housing with zinc alloy terminals.
Autoido supports stable production, OEM/ODM customization and bulk supply, helping automotive customers select suitable fuse specifications for different circuit protection requirements.
