MINI Fuse 32V Blade Automotive Fuse for Car Auto

4 year ago

111 0 

4 year

Product details

The Autoido 32V MINI automotive blade fuse is a compact plug-in fuse designed to protect vehicle electrical circuits against overload and short-circuit conditions. It is available in multiple current ratings from 1A to 40A and is commonly used in passenger cars, trucks, motorcycles, RVs, and other 12V/24V DC automotive electrical systems.

Product Description

The Autoido ADM series is a 32V MINI automotive blade fuse designed to protect compatible automotive and DC electrical circuits from overcurrent conditions. The fuse is available in current ratings from 1A to 40A and features a PC housing with zinc alloy terminals.

With a specified breaking capacity of 1000A at 32V DC and an operating temperature range of -40°C to +125°C, the MINI blade fuse is suitable for cars, trucks, RVs, motorcycles and other compatible 32V DC electrical systems.

Different current ratings are available to meet different circuit protection requirements. Customers should select the same fuse size and current rating specified by the vehicle or equipment manufacturer.

Parameter	Specification
Product Type	MINI Automotive Blade Fuse
Rated Voltage	32V DC
Current Rating	1A–40A
Breaking Capacity	1000A at 32V DC
Operating Temperature	-40°C to +125°C
Housing Material	PC
Terminal Material	Zinc Alloy
Mounting Type	Plug-In Blade
Application	Automotive / Motorcycle / RV / Truck
Brand	Autoido
OEM/ODM	Available

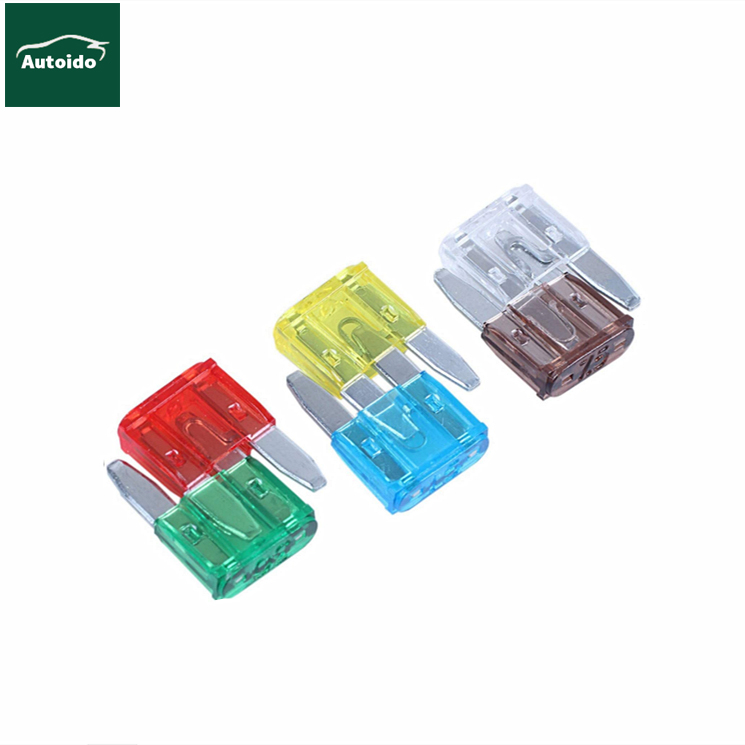

32V MINI blade fuse PC housing and terminals

Available 32V MINI Fuse Ratings

The Autoido MINI blade fuse is available in 12 standard current ratings from 1A to 40A, allowing users to select a fuse according to the original circuit protection specification.

Catalog NO.	Voltage Rating	Ampere Rating
ADMIN-01	32V	1A
ADMIN-02	32V	2A
ADMIN-03	32V	3A
ADMIN-05	32V	5A
ADMIN-7.5	32V	7.5A
ADMIN-10	32V	10A
ADMIN-15	32V	15A
ADMIN-20	32V	20A
ADMIN-25	32V	25A
ADMIN-30	32V	30A
ADMIN-35	32V	35A
ADMIN-40	32V	40A

MINI blade fuse for automotive circuit protection

32V MINI Blade Fuse Applications

The MINI 32V blade fuse can be used in compatible low-voltage DC electrical systems, including:

Passenger cars

Trucks

RVs and recreational vehicles

Motorcycles

Automotive electrical systems

32V DC control circuits

Auxiliary electrical equipment

How to Choose the Correct MINI Fuse?

To choose the correct MINI blade fuse, check three key specifications: fuse size, voltage rating and current rating.

1. Confirm the fuse size

Make sure the vehicle or equipment uses a MINI blade fuse rather than Standard ATO/ATC, Micro, Micro2 or another fuse format.

2. Match the voltage rating

The fuse should have a voltage rating suitable for the electrical system. This product is rated at 32V DC.

3. Match the amp rating

Use the same current rating specified by the vehicle or equipment manufacturer. For example, replace a 10A fuse with another 10A fuse rather than installing a higher-rated fuse.

During the use of the car, if any electrical equipment does not work, it may be caused by the burning of the fuse and need to be replaced in time.
The methods are as follows:

1. Turn off the ignition switch and open the fuse box cover.

2. Replace the fuse.

Never replace a fuse with a higher current rating unless specifically permitted by the equipment manufacturer.

32V MINI blade fuse silver-plated zinc alloy terminals

MINI Fuse vs Other Automotive Blade Fuses：

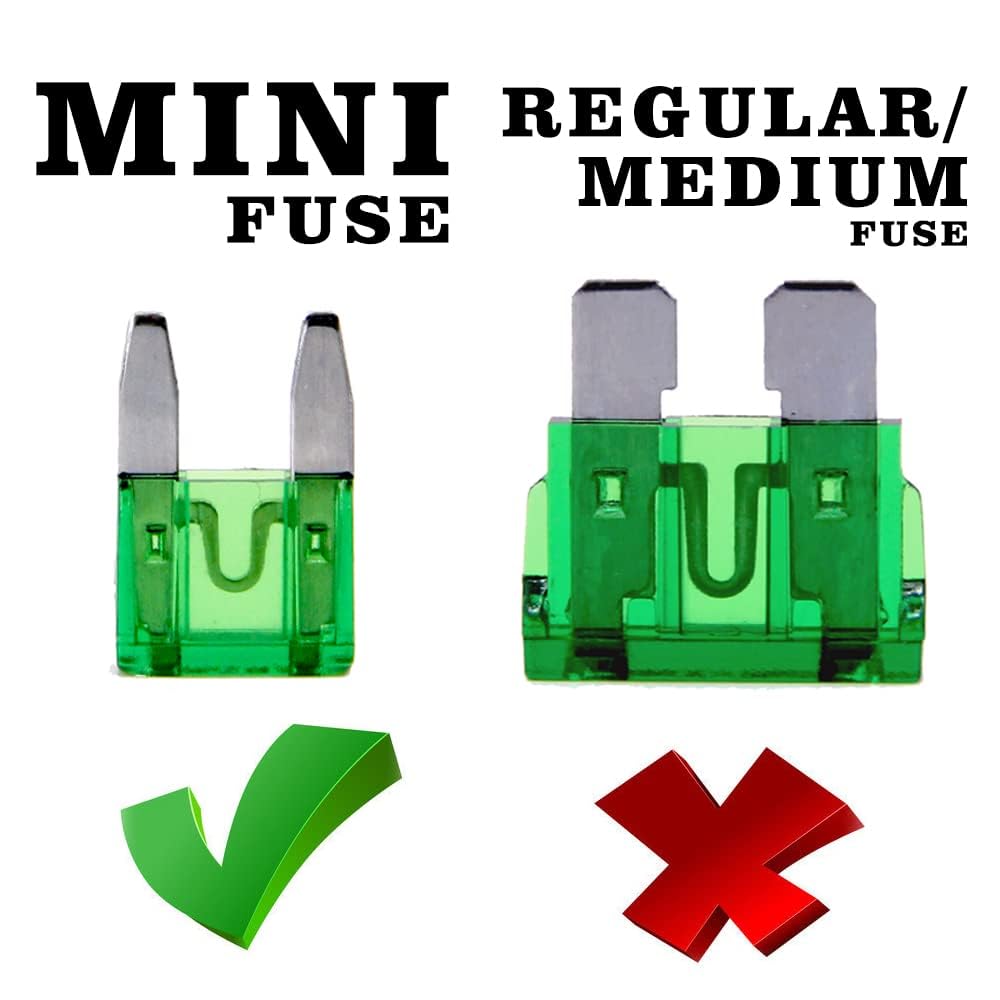

(1) MINI Fuse vs Standard ATC/ATO Fuse

MINI fuses and standard ATC/ATO blade fuses are both commonly used for automotive circuit protection, but the MINI fuse has a smaller body and requires less installation space. Both fuse types are available in overlapping current ratings, but they are not interchangeable simply because the amperage or fuse color is the same.

When replacing a fuse, always match the correct fuse type, physical dimensions, current rating, and voltage rating specified by the vehicle or equipment manufacturer. A fuse with the same color or amperage but a different body size may not fit the fuse holder correctly or provide the intended protection.

(2) MINI Fuse vs Low Profile MINI Fuse

A standard MINI fuse and a Low Profile MINI fuse are designed for similar low-voltage automotive applications, but their physical designs are different. The Low Profile MINI fuse has a shorter housing and more compact terminal structure, making it suitable for fuse boxes where installation height is limited.

Although MINI and Low Profile MINI fuses may share similar current ratings and color coding, they should not be treated as direct replacements unless the fuse box or equipment specification allows both types. Always confirm the fuse dimensions, terminal design, amperage, and voltage rating before replacement.

Quick Comparison

Feature	MINI Fuse	Standard ATC/ATO Fuse	Low Profile MINI Fuse
Body Size	Compact	Larger	Very compact
Typical Use	Automotive circuits	Automotive circuits	Space-limited fuse boxes
Current Ratings	Multiple ratings available	Multiple ratings available	Multiple ratings available
Interchangeable	Not automatically	Not automatically	Not automatically
Selection Basis	Size, amperage, voltage, fuse type	Size, amperage, voltage, fuse type	Size, amperage, voltage, fuse type

Company Introduction

Autoido supplies 32V MINI automotive blade fuses in multiple current ratings from 1A to 40A for automotive, motorcycle, RV, and other low-voltage DC applications. Our manufacturing process includes inspection and electrical performance testing to help ensure stable conductivity, consistent fuse characteristics, and reliable circuit protection.

OEM/ODM services are available for custom branding, packaging, current rating combinations, and bulk purchasing requirements. Autoido also provides technical support for fuse selection, application matching, and related automotive circuit protection products.

FAQ

What is a MINI automotive fuse?

A MINI automotive fuse is a compact blade fuse designed to protect vehicle electrical circuits from overload and short-circuit conditions. Compared with a standard ATC/ATO blade fuse, the MINI fuse uses a smaller housing while providing similar circuit protection functions. It is widely used in passenger cars, trucks, motorcycles, RVs, and other low-voltage DC electrical systems.

What amp ratings are available for MINI fuses?

Autoido MINI automotive blade fuses are available in multiple current ratings from 1A to 40A. Common ratings include 1A、2A、3A、5A、7.5A、10A、15A、20A、25A、30A、35A、40A. The correct amperage should always match the vehicle or equipment manufacturer's specification.

Can a 32V MINI fuse be used in a 12V car?

Yes, a 32V-rated MINI fuse can generally be used in a 12V automotive electrical system when the fuse size, current rating, time-current characteristics, and breaking capacity meet the original application requirements. The fuse voltage rating should be equal to or higher than the system voltage. Always check the vehicle owner's manual or original fuse specification before replacement.

What is the difference between a MINI fuse and a Low Profile MINI fuse?

A MINI fuse and a Low Profile MINI fuse are both compact automotive blade fuses, but they have different housing heights and terminal designs. A Low Profile MINI fuse is shorter and is designed for fuse boxes with limited installation space. Even if the amperage rating is the same, the two fuse types should not be considered interchangeable unless the fuse holder and vehicle specification support both designs.

How do I choose the correct MINI fuse amperage?

Choose the same amperage rating specified by the vehicle manufacturer or shown on the original fuse. Do not install a higher-amperage fuse to prevent repeated fuse blowing, because this may reduce circuit protection and increase the risk of wire or component damage. Fuse selection should also consider fuse type, physical size, voltage rating, and application requirements.
