200m Continual LiDAR Surveying Tof Sensor

200m Continual LiDAR Surveying Tof Sensor USB

A 200m LiDAR sensor is a type of sensor that uses Time of Flight (ToF) technology to measure distances for surveying purposes. The Time Of Flight Distance Sensor is designed to be connected to a computer or device via a USB interface.
The Continual LiDAR means that the ToF sensor is capable of measuring distances with Continuous measurement mode. This makes it suitable for large-outdoor surveying applications where long-range measurements are required.

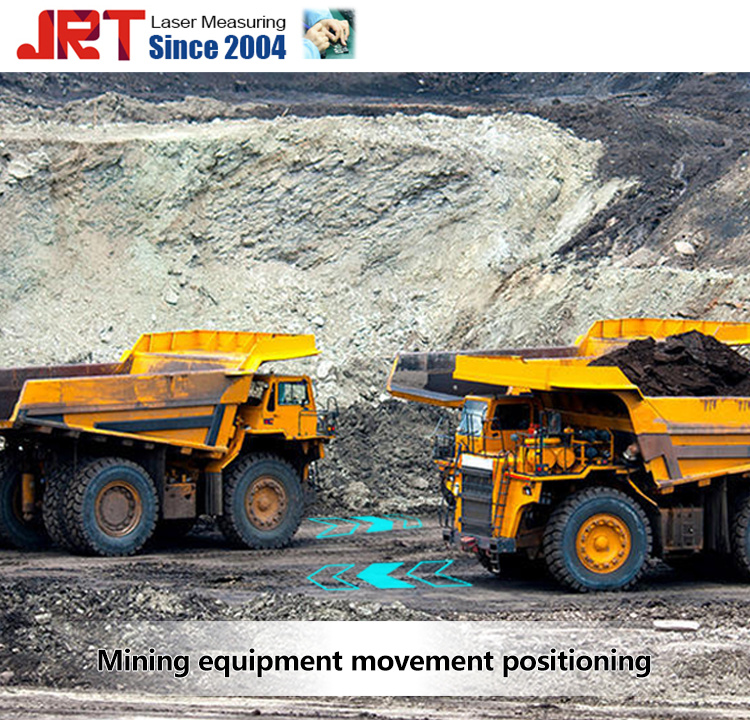

Applications:

Some Questions For You:
Q: Can I use it in continual measure mode?
A: Yes. JRT's time of flight sensor supports continual function.

Q: How much is the tof sensor accuracy?
A: The accuracy range is 2cm~ 4cm, for specific accuracy, it will be affected by your using environment.

Q: How can I output the measurement data?
A: Tof sensor support serial interface with RX TX.

Technical Parameters:
Applicaiton: industrial area
Measuring Range: 200m long
TOF protocol: 400hz high frequency,(60m 3000Hz can be customized)
Interface: UART,TTL,RXTX, USB to ttl
Accuracy: ± 10cm

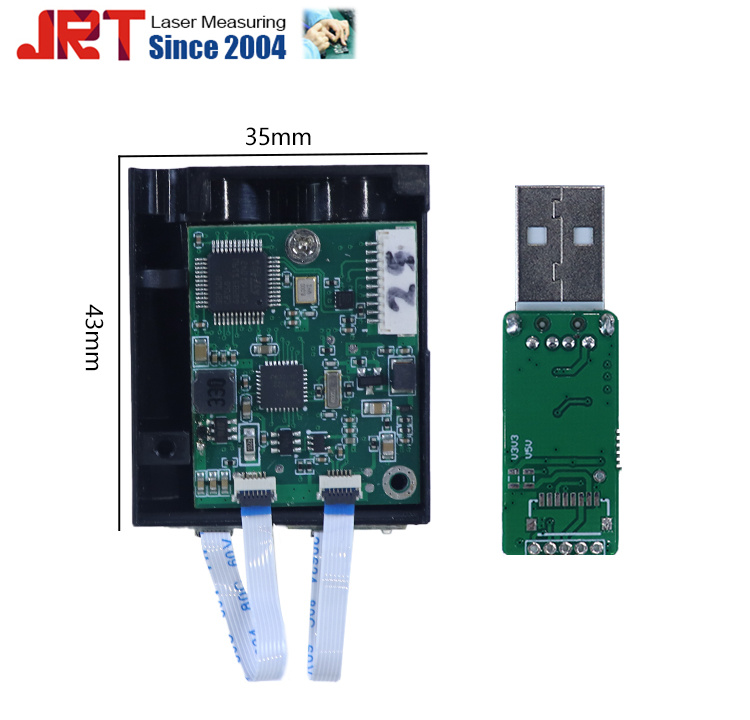

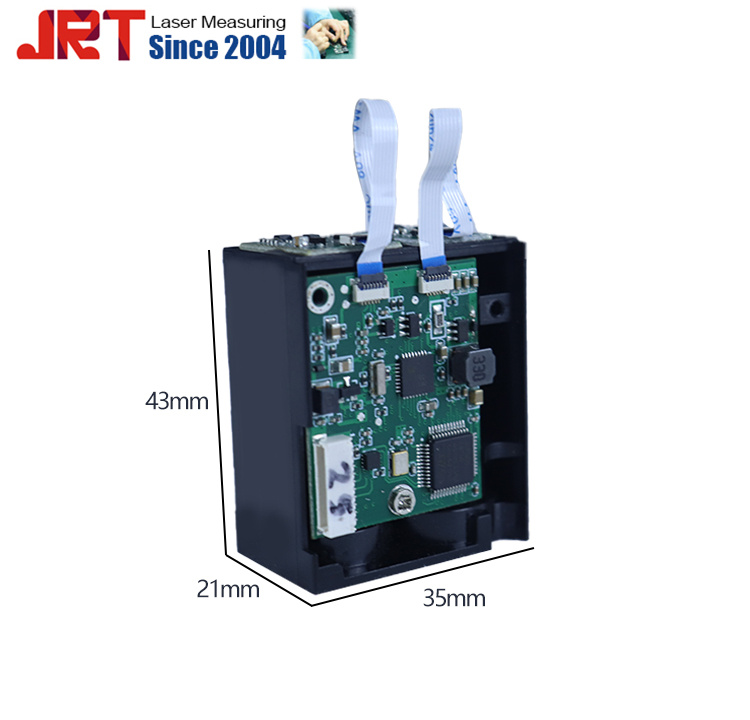

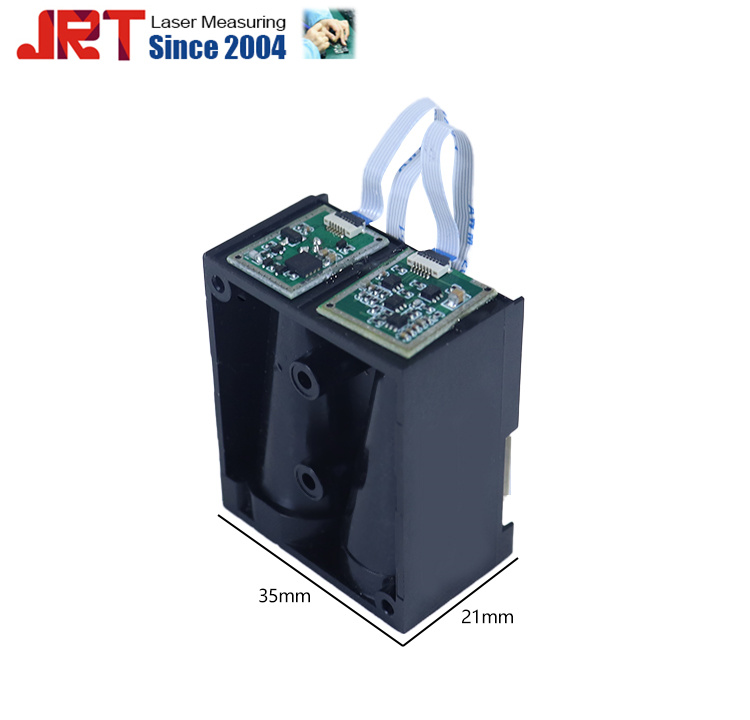

Size: small of 43*35*21mm
Laser Type 650nm, <1mw, red
Weight: About 20g
Voltage: +2.7V~+3.6V
Temperature: 0-40 ℃
Storage Temperature: -25~60 ℃
Tof Sensors advantages: 400hz, +-10cm accuracy

Tof sensor advantages: 400hz, 10cm accuracy, long range 0.1-200m

PICTURES:
