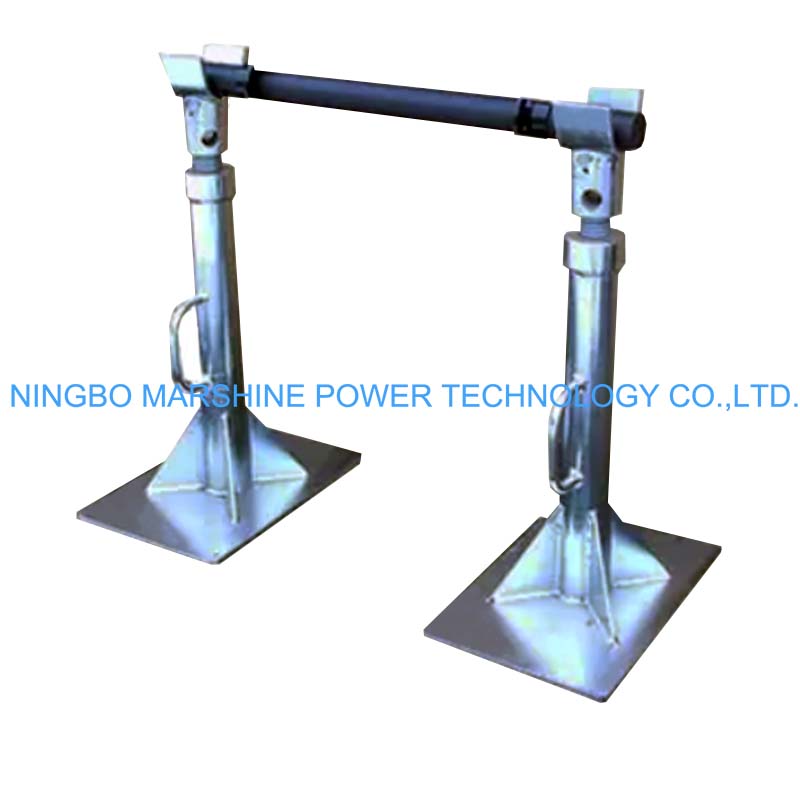

Spindle Bars For Screw Jack Stabilising Stands

Our MARSHINE was a cable installation equipment manufacturing and trading company located in China. For 20 years, we have been providing durable yet powerful equipment for wold wide linemen and utility workers to handle the cable installation works. This MARSHINE Spindle Bars For Screw Jack Stabilising Stands is spindle for our screw jack stands, with high quality alloy steel materials and various models to meet different construction needs, these series spindles can help you to handle most of construction works with ease.

Available in both solid and tubular configurations, these MARSHINE alloy steel spindle bars can accommodates a wide range of cable drum sizes and load capacities, making them suitable for light-duty utility work as well as heavy industrial cable laying projects. Designed for power utilities, these spindle bars are able to deliver dependable performance, high load-bearing capacity, and long service life in demanding field environments. Each spindle bar is engineered for compatibility with the corresponding locking collars, ensuring reliable drum positioning and enhanced operational safety.

Product Feature

High-Strength Steel Construction

Manufactured from premium-grade steel, the MARSHINE jack stand spindle bars provide outstanding mechanical strength and excellent resistance to bending, ensuring reliable support for heavy cable drums during continuous operation.

Available in Solid and Tubular Designs

The product range includes solid spindle bars for medium-duty applications and tubular spindle bars for higher-capacity installations, allowing users to select the most suitable model for specific project requirements.

Wide Range of Sizes

MARSHINE offers spindle bars in multiple diameters and lengths, providing compatibility with various cable drum dimensions and installation equipment.

Excellent Load Capacity

Depending on the selected model, the spindle bars support working loads from 60 KN to 400 KN, making them suitable for everything from distribution cable projects to large-scale transmission line construction.

Compatible with Locking Collars

Each spindle bar is designed to work seamlessly with matching locking collars, preventing drum movement along the shaft and improving operational stability during cable payout.

Smooth Drum Rotation

The precision shafted surface allows cable drums to rotate freely on stabilising stands, ensuring consistent cable feeding while reducing pulling resistance and minimizing installation effort.

Product Application

The MARSHINE Cable Drum Stand Spindle Bars are widely used in:

Power transmission and distribution cable installation;

Cable drum lifting and support systems;

Renewable energy infrastructure construction;

Industrial electrical installation projects;

Municipal infrastructure and civil engineering projects.

Technical Parameters

Model	Diameter	Length	Style	Capacity	Collar Type
MARDB-120	50 mm	1200 mm	Solid	60 KN	MAR-LC50
MARDB-150	50 mm	1500 mm	Solid	60 KN	MAR-LC50
MARDB-180	50 mm	1800 mm	Solid	60 KN	MAR-LC50
MARDB-200	76 mm	2000 mm	Tubular	100 KN	MAR-LC76
MARDB-300	100 mm	3000 mm	Tubular	200 KN	MAR-LC100
MARDB-400-1	127 mm	4000 mm	Tubular	300 KN	MAR-LC127
MARDB-400-2	140 mm	4000 mm	Tubular	400 KN	MAR-LC140
