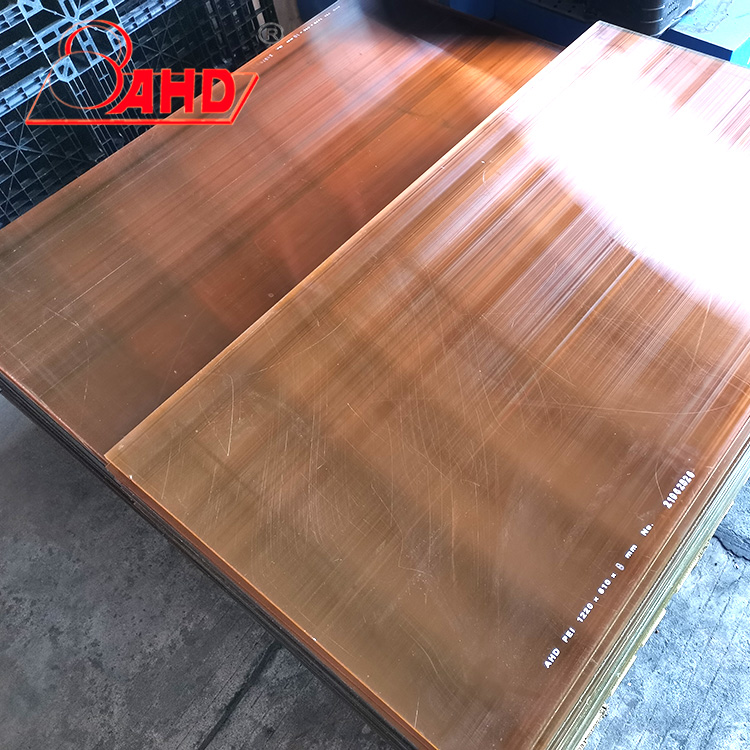

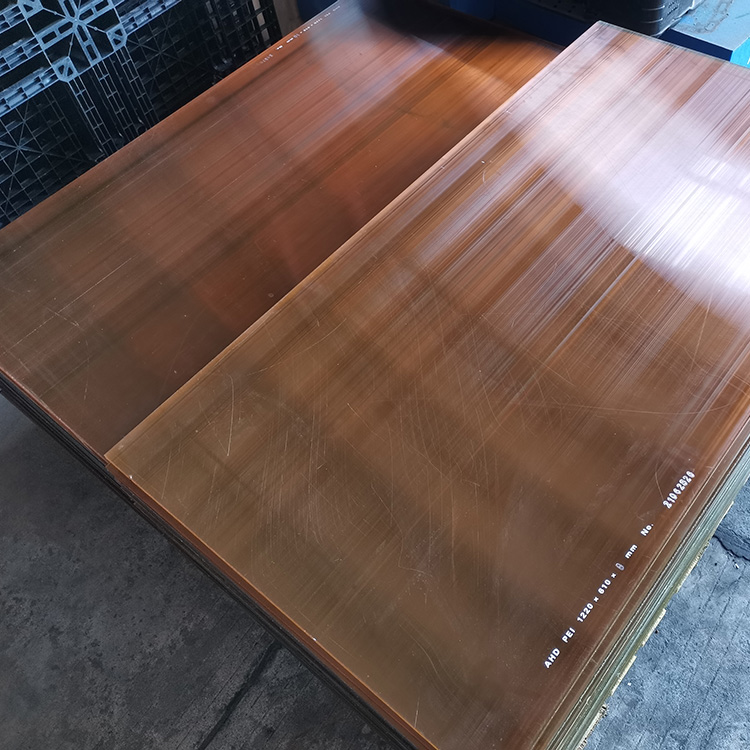

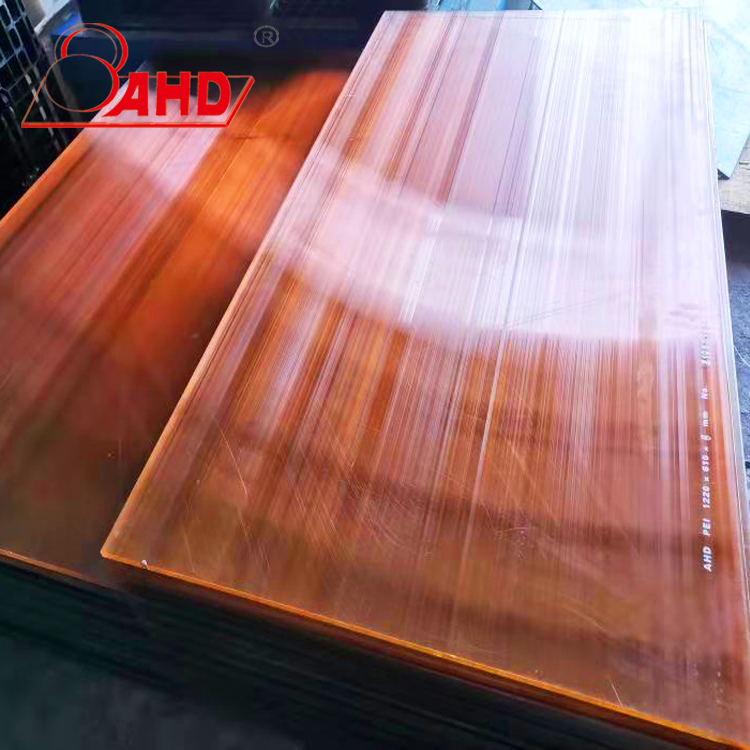

Amber Polyethyleneimine Textured Pei Sheet
polyetherimide sheet, which is a non-crystalline plastic. It is an amorphous high-performance polymer. It is made of engineering plastics made of amorphous PEI (polyetherimide) and extruded at high temperature through an extruder. The commonly used PEI board is made of American GE raw materials (trade name Ultem).
Features
1. The maximum allowable working temperature in the air is relatively high (continuous working temperature 170℃)
2. Excellent hydrolysis resistance (suitable for repeated steam sterilization)
3. In a wide temperature range, good mechanical strength and high rigidity
4. Inherent low flammability and less smoke during combustion
5. Good dimensional stability
6. Physiologically inert (suitable for contact with food)
7. Resistance to high-energy radiation (r-ray and X-ray)
8. Good electrical insulation performance
Application:
1. Steam cleaning equipment, electrical components
2. Electrical and electronic equipment parts, auto parts, connectors
3. Aerospace, aviation, automotive interior parts, electroplating process equipment
4. Semiconductor manufacturing, equipment parts, glass parts manufacturing plants
Specification:
| Item name | PEI sheet |
| Size | 610x1220mm |
| Thickness | 6--50mm |
| Color | Amber |
| Density | 1.27 g/cm3 |
Physical Datesheet:
| Item | PEI sheet |
| Type | extruded |
| Thickness | 10---50mm |
| Size | 610x1220mm |
| Color | Amber |
| Proportion | 1.27g/cm³ |
| Heat resistance (continuous) | 170℃ |
| Heat resistance (short-term) | 200℃ |
| Melting point | _ |
| Glass transition temperature | 215℃ |
|
Linear thermal expansion coefficient (average 23~100℃) |
45×10-6m/(m.k) |
| Average 23--150℃ | 45×10-6m/(m.k) |
| Flammability(UI94) | V-0 |
| Tensile modulus of elasticity | 3400MPa |
| Dipping into water at 23℃ for 24h | 0.26 |
| Dipping into water at 23℃ | 1.35 |
| Bending tensile stress/ Tensile stress off shock | 105/- Mpa |
| Breaking tensile strain | >10% |
| Compressive stress of normal strain-1%/2% | 25/49 MPa |
| Pendulum gap impact test | 3.5 KJ/m2 |
| Friction coefficient | _ |
| Rockwell hardness | M114 |
| Dielectric strength | 30 kv/mm |
| Volume resistance | ≥10 18Ω×cm |
| Surface resistance | ≥10 17Ω×cm |
| Relative dielectric constant-100HZ/1MHz | 3/3 |
| Critical tracking index(CTI) | 175 |
| Bonding capacity | + |
| Food contact | + |
| Acid resistance | + |
| Alkali resistance | + |
| Carbonated water resistance | + |
| Aromatic compound resistance | + |
| Ketone resistance | - |
FAQ:
Q1: Are you a factory or trade company?
A1: we are a manufacturter for semi-finished engineering plastic sheet & rod like "
Polypropylene Plastic Sheet,Nylon Sheet，Pa6 Rod，Abs Plastic Sheet，Abs Plastic Sheet ，PP Rod and Sheet, POM Sheet, PC Sheet"etc since 1994.
Q2: Is your sample free?
A2:Yes, our samples are free, but the shipping cost is paid by the buyer.
Q3: What about the MOQ ?
A3:In addition to the sample, the minimum order quantity for a regular size product is 100kgs.
Q4: What about the packing ?
A4: As per factory's exported standard, usually use steel pallets.
Q5: What about the payment term ?
A5:we accept payment by L/C , T/T, usually 30% deposit is requested before production. 50% deposit is request for customzied items.
Q6: What's your delivery time?
A6:For samples: within 1-3 working days; For orders: within 7-30 working days.
