Name: Balance Cylinder
Brand: FESTO
Original: Germany
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.
2 pcs aluminum can bowl making line
3 year ago
Product details
Product Description
Product Application

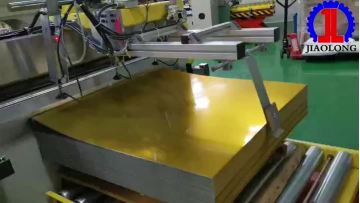

This machine is a high speed and high precision automatic two-piece can production equipment. It is suitable for all kinds of 2-piece can made by the tinplate (aluminum). The whole sheet (aluminum) from the cylinder feedstock, automatic position pushing, servo feeding, mechanical hand stuffing , servo feeding, can stamping, second stretching and forming,then trimming, automatic out of the cans to palletizer with fully automatic operation, no manual operation. The whole line equip with three CNC high precision press, which is first stamping, second stretching and forming, the last trimming.
|
SPECIFICATIONS FOR 2-PIECE CAN MAKING PRODUCTION LINE
|
|
|
|
|||
|
Parameters
Mode
|
GT2A4-120-T
|
GT2A4-100
|
GT2A4-60-T
|
|||
|
|
(First feeding and stamping)
|
（Second stretching and forming）
|
（Trimming）
|
|||
|
Normal Pressure
|
120T
|
100T
|
60T
|
|||
|
Max stroke times
|
120
|
110
|
120
|
|||
|
Max die installed
|
3
|
3
|
3
|
|||
|
Max sheet size
|
1100*1100
|
1100*1100
|
1100*1100
|
|||
|
Max sheet thickness
|
0.4mm
|
0.4mm
|
0.4mm
|
|||
|
Total Power
|
25kw
|
35kw
|
13kw
|
|||
|
Installation size
|
14000*1500*2800
|
|
|
|||
|
Total weight
|
14.5T
|
16T
|
8.5T
|
|||
Main Features
1. Man-machine interface and simple operation.
2. Using the mechanical arm servo feeding, the automation degree is high.
3. Equipped with various alarm protection, safe and convenient to maintain.
4. Adopt the gantry bed, no gap guide running, when with high speed operation it has good stability and high precision.
5. Use the whole sheet blanking to improve efficiency and reduce the loss of raw materials.
Certifications
Detailed Images
Machine Parts
Main Features
Name: Pneumatic Components
Brand: CKD
Original: Japan
Energy saving, no pollution, high efficiency, low cost, safe and reliable, simple structure.
Machine Parts
Name: Magnetic Valve
Brand: MAC
Original: America
Ideal for applications where high flow and repeatability in a small package size are crucial. Simple cartridge design for easy adaptability.
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
14000 (L) * 1500 (W) * 2800 (D)
|
|
|
Weight
|
38.5 T
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
Company Profile
Related Products

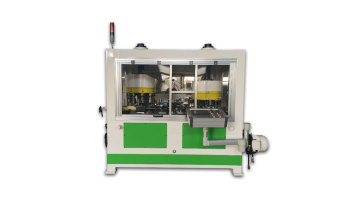

2-piece tin can making machine
